Cylinder Bore: | 180mm | Work Schedule: | 130-300mm |
---|---|---|---|
Pressure Of Work: | 50T | Countertops: | 400×400mm |
Working Temperature: | There Is No | The Motor Power: | 3 Kw |
Electric Heating Power: | 9kw | Installation Dimensions: | 1150×850×1400 |
The Total Power: | 12kw | ||
Highlight: | Rubber Plate Vulcanizing Machine,Rubber Heating Vulcanizing Machine,Column Frame Rubber Plate Vulcanizing Press |

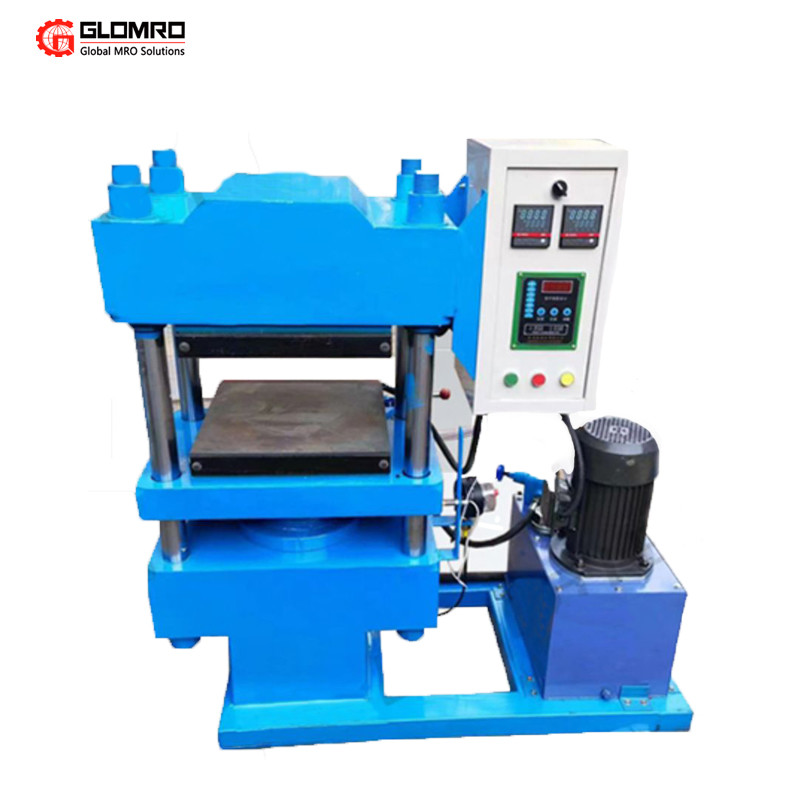

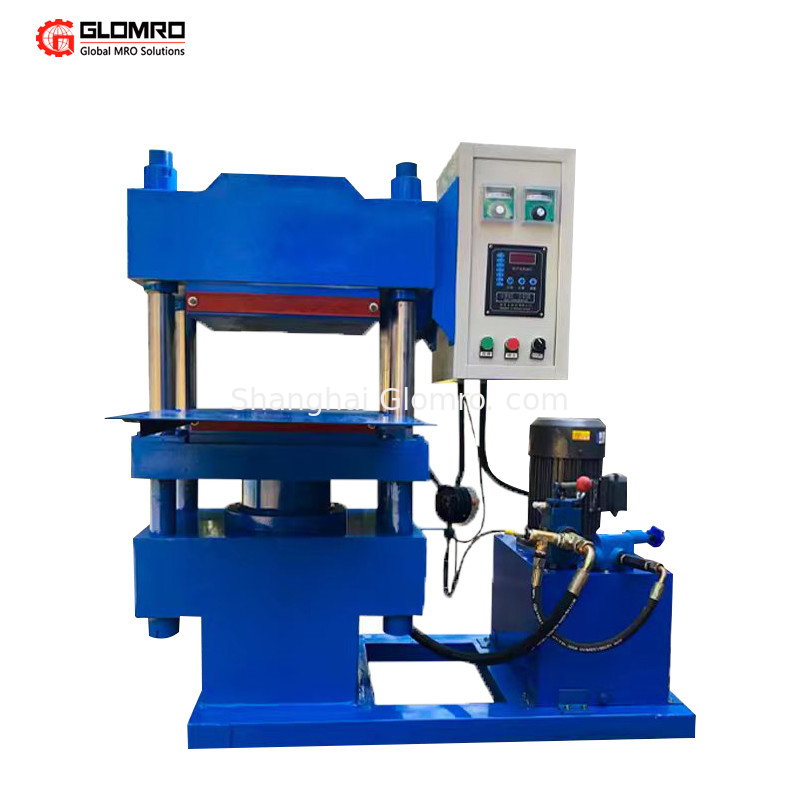

BAXIT rubber plate vulcanizing machine BXT-50
Brief introduction:
Rubber vulcanizing machine is the main molding equipment for all kinds of rubber model products and non-model products. It has the characteristics of simple structure, high pressure, wide adaptability and high efficiency. It is also suitable for pressing molding of thermosetting plastics, foam, resin, bakelwood, thin metal, building materials and other model products. The machine is of column structure, and the pressing form is down (up) type. The plunger rises under the action of working fluid pressure, and the plunger falls (i.e., the hot plate is opened). By the dead weight of the hot plate, platform and plunger, the working fluid is driven to flow back to the oil storage tank to achieve the purpose of falling (i.e., opening).
1,The basic content
Flat belt vulcanizing machine is mainly used for vulcanizing flat belt (such as conveyor belt, transmission belt, referred to as flat belt), it has the advantages of high pressure per unit area of hot plate, reliable operation of equipment and less maintenance. The main function of the plate vulcanizing machine is to provide the required pressure and temperature. The pressure is generated by the hydraulic system through the hydraulic cylinder, and the temperature is provided by the heating medium (usually steam). Flat belt vulcanizing machine according to the structure of the frame can be divided into column type flat belt vulcanizing machine and frame type flat belt vulcanizing machine two types; According to the number of working layers can be divided into single layer and double layer: according to the working medium of hydraulic system can be divided into oil pressure and water pressure.
models
In the rubber industry, the column flat belt vulcanizing machine is to use an earlier model, our past used in the flat belt vulcanizing machine is mostly column structure, but more frame structure is used at present. Frame type flat belt vulcanizing machine and column type flat belt vulcanizing machine, has the following advantages: (1) in a certain center distance, allow the installation of larger diameter of the hydraulic cylinder, which can reduce the number of hydraulic cylinders, and the structure is simple, less maintenance; (2) the beam force is reasonable, the required section modulus is far smaller than the column type, can reduce the weight; ③ Simple manufacture and installation, concealed pipeline configuration, neat appearance of the whole machine.
Frame type flat belt vulcanizing machine single frame plate lateral stiffness is worse than the column, but because the frame of the frame type flat belt vulcanizing machine is composed of multiple frame plates, so the machine has enough lateral stiffness
2, Curing machine maintenance and maintenance
introduce
Vulcanizing machine as a conveyor belt joint tool, in the process of use and after the end of use, also like other tools, maintenance and maintenance, in order to extend the service life. At present our company produced vulcanizing machine, as long as the use of proper maintenance, its service life is 8 years.
maintenance
Vulcanizing machine maintenance should pay attention to the following problems:
1. The storage environment of the vulcanizing machine should be kept dry and well ventilated, so as to avoid the electrical circuit humidity caused by humidity;
2, do not use vulcanizing machine outdoors in rainy days, to prevent the electric control box and heating plate water;
3, if the working environment is wet and wet, in the disassembly handling vulcanizing machine, should be on the ground with items pad, do not let the vulcanizing machine contact with water directly;
4, if in the process of use, due to improper operation of the heating plate water, should first contact the manufacturer for maintenance. If emergency repair is needed, the upper cover of the heating plate can be opened, the water is poured out first, and then the electric control box is set for manual operation, heated to 100℃, kept at a constant temperature for half an hour, the line is dried, and the belt is bonded under manual condition. At the same time, the manufacturer should be contacted in time for the overall replacement of the line.
5, vulcanizing machine in a long time do not need to use the case, should be every half a month to heat the heating plate (temperature is set at 100℃), keep the temperature for half an hour or so.
6. At the end of each use, the water in the water plate should be discharged clean, especially in winter, if the water can not be discharged clean, often lead to premature aging of the rubber skin of the water plate, and the service life of the water plate is reduced;
The correct way to release water is, after the end of curing heat preservation, curing machine is not disassembled before. If the water is discharged after the machine is disassembled, the water in the hydraulic pressure plate may not be discharged completely.
model | BXT-30 | BXT-50 |
Cylinder bore | 160mm | 180mm |
Work schedule | 120mm-200mm | 130-300mm |
Pressure of work | 30T | 50T |
countertops | 300×300mm | 400×400mm |
Working temperature | 200 degrees | |
The motor power | 3 kw | 3kw |
Electric heating power | 7kw | 9kw |
Installation dimensions | 1100×800×1300 | 1150×850×1400 |
The total power | 10kw | 12kw |
