Programmable LCD Touch Screen 600W Lab DSC Calorimeter

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-DSC100
Minimum Order Quantity: 1
Price: USD
Packaging Details: wooden
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 1000units
Detail Information
Power Supply: AC 220V 50Hz Or Customized Power: 600W
Display Mode: 24bit Color 7-inch LCD Touch Screen Atmosphere Control: Automatic Instrument Switching
DSC Accuracy: 0.001mW DSC Range: 0~±500mW
High Light:

Lab DSC Calorimeter


600W DSC Calorimeter


LCD Touch Screen DSC Calorimeter

Product Description

BAXIT DSC 600C differential scanning calorimetry price




Differential Scanning Calorimetry (DSC) is a classical thermal analysis method for the thermal effect of programmable temperature. It is used in various research and development, process optimization, quality control and failure analysis in various materials and chemistry fields. Occasionally, it has been widely used. Using the DSC method, we can study the phase transition of inorganic materials, the melting of polymer materials, the crystallization process, the polymorphism of drugs, and the solid/liquid phase ratio of foods such as oils and fats. In line with national standard GB/T2951.42-2008, GB/T15065-2009, GB/T17391-1998, GB/T19466.6-2009.

Technical characteristics:

1, industrial-grade wide-screen touch structure, display information is rich, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat signal, various switch states.

2, USB communication interface, strong versatility, reliable signal without interruption, support self-recovery connection function.

3. The structure of the furnace body is compact, and the temperature rise and fall rate can be adjusted arbitrarily.

4. Using Cortex-M3 core ARM controller, the calculation processing speed is faster, and the temperature control is more accurate.

5. Using USB two-way communication, the operation is more convenient and supports self-recovery connection function.

6. Using 7-inch 24bit color full-color LCD touch screen, real-time display of the status and data of the instrument.

7. Standard samples are standard to facilitate the customer to correct the temperature coefficient.

8, software adaptive resolution computer screen; support notebook, desktop, support WIN2000, XP, WIN7, WIN8, WIN10 and other operating systems.

9. Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and the user can flexibly combine the instructions according to their own measurement steps and save them. Complex operations are simplified into one-button operation.

Technical Parameters:

DSC range 0 ~ ± 500mW
Temperature range room temperature ~ 600 ° C
Heating rate 0.1~80°C/min
Temperature resolution 0.01 ° C
Temperature accuracy ± 0.1 ° C
Temperature repeatability ± 0.1 ° C
DSC accuracy ± 2%
DSC resolution 0.001mW
DSC sensitivity 0.001mW
Temperature control mode Heating, constant temperature, cooling, cycle temperature control (full program automatic control)
Curve scan Temperature scan
Atmosphere control Gas mass flow meter automatically switches two gas channels
Display mode 24bit color, 7 inch LED touch screen display
Data interface USB standard interface, supporting the corresponding operating software
Parameter standard Equipped with standard calibrator with one-button calibration function, users can calibrate the temperature by themselves
Working power AC220V 50Hz/60Hz



Measure physical and chemical changes related to heat, such as glass transition temperature and melting point. Melting temperature, crystallization and crystallization heat, phase transition heat, product thermal stability, solidification/crosslinking, oxidation induction period, reaction kinetics, specific heat, and the like.

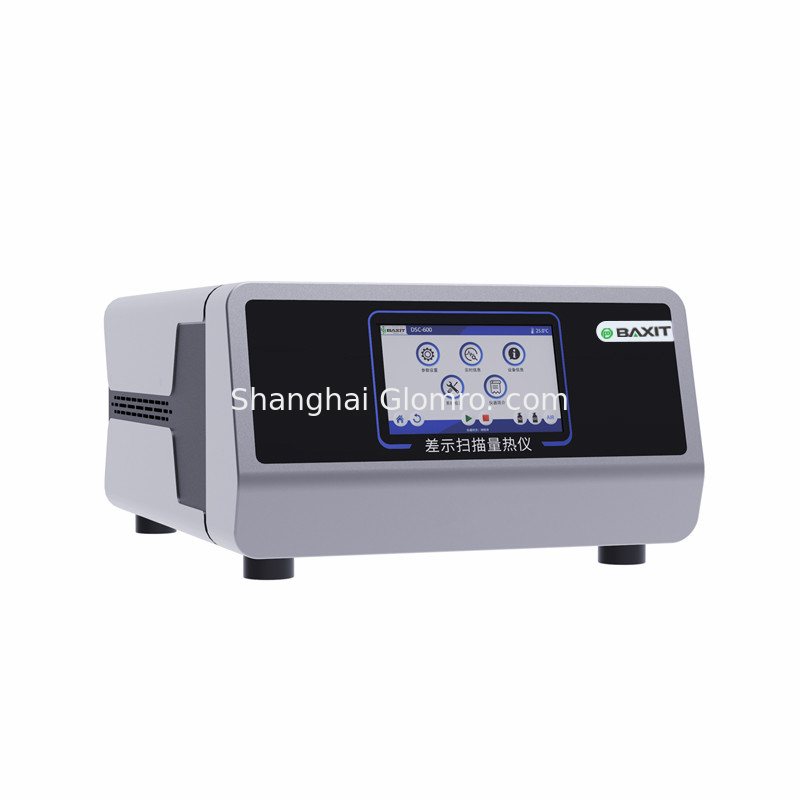

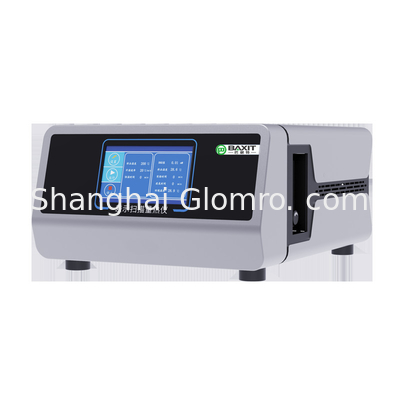

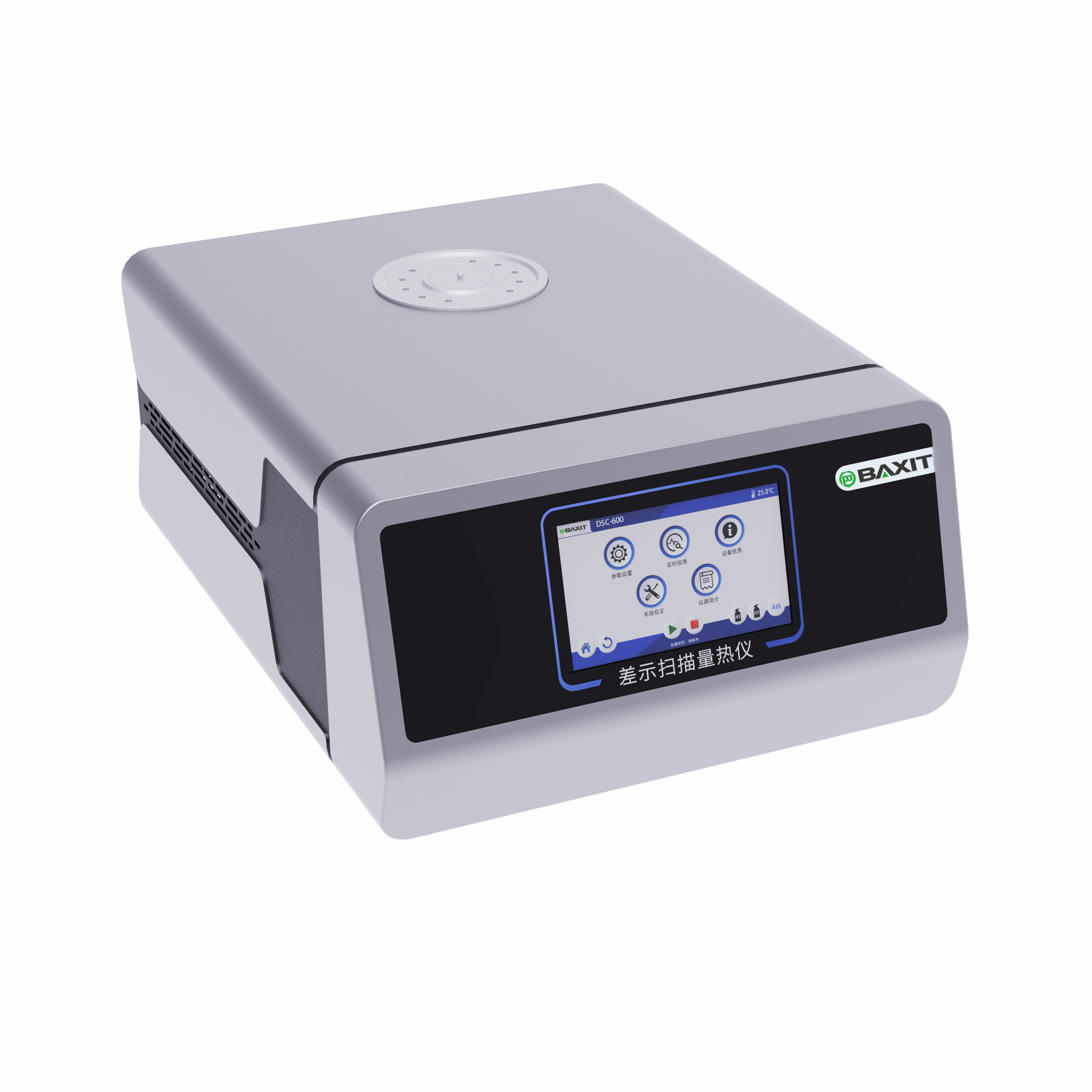

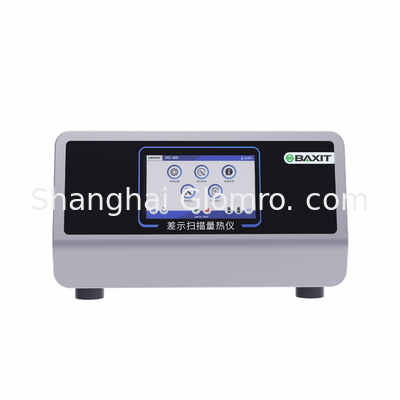

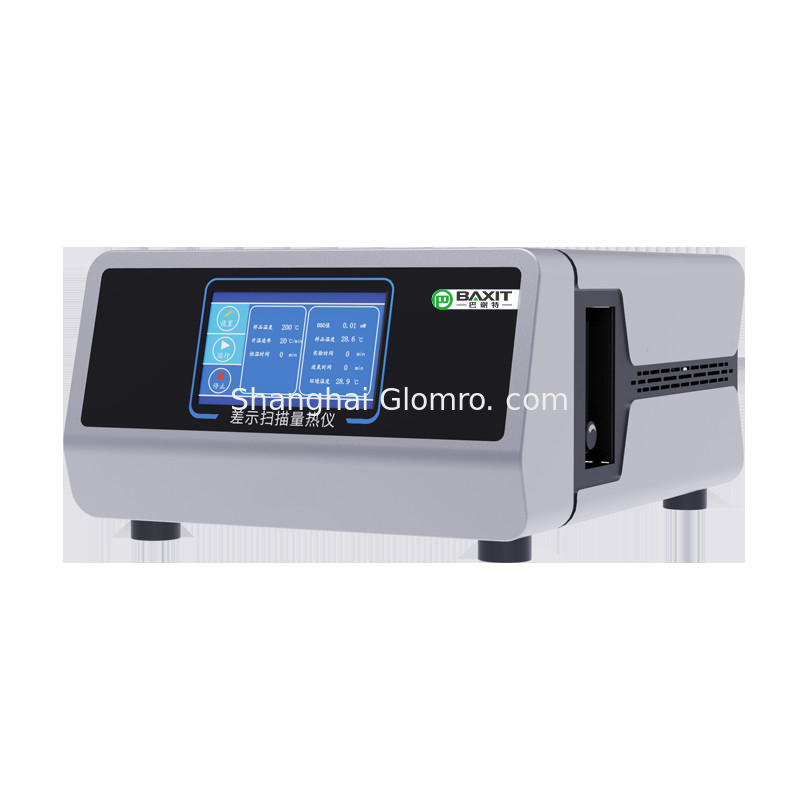

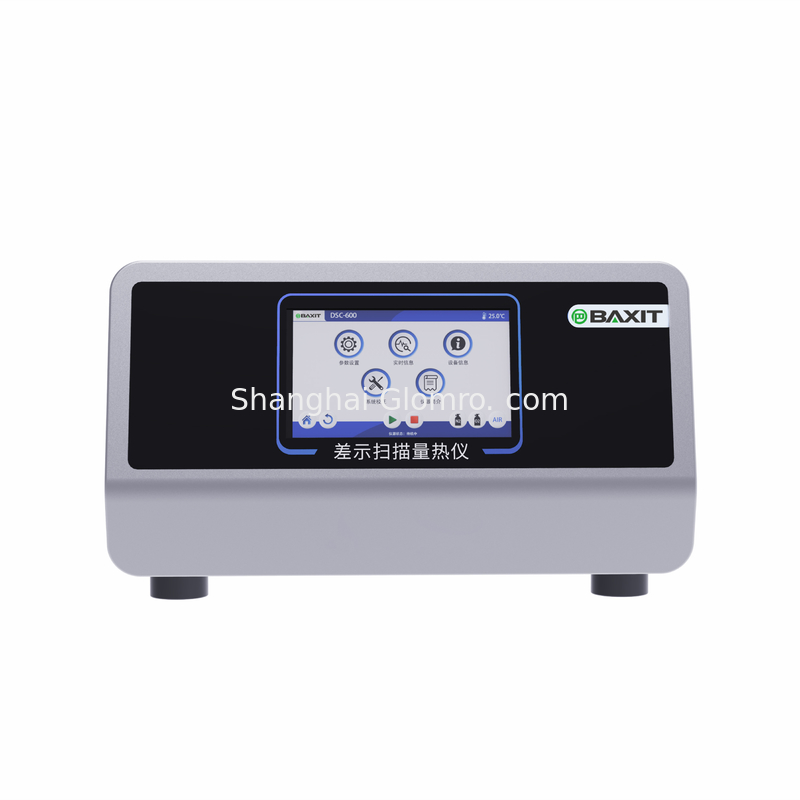

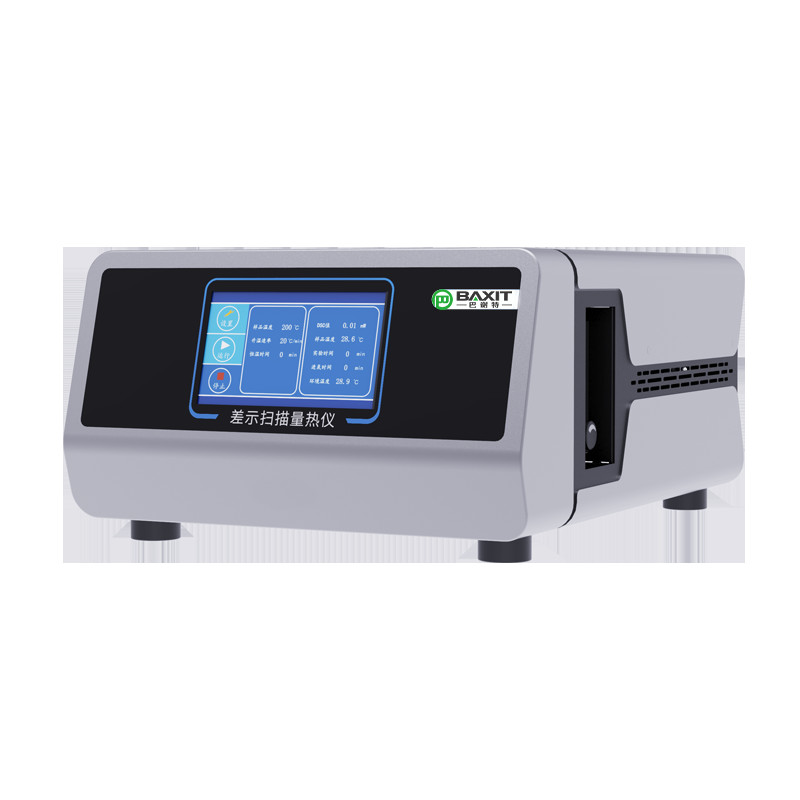

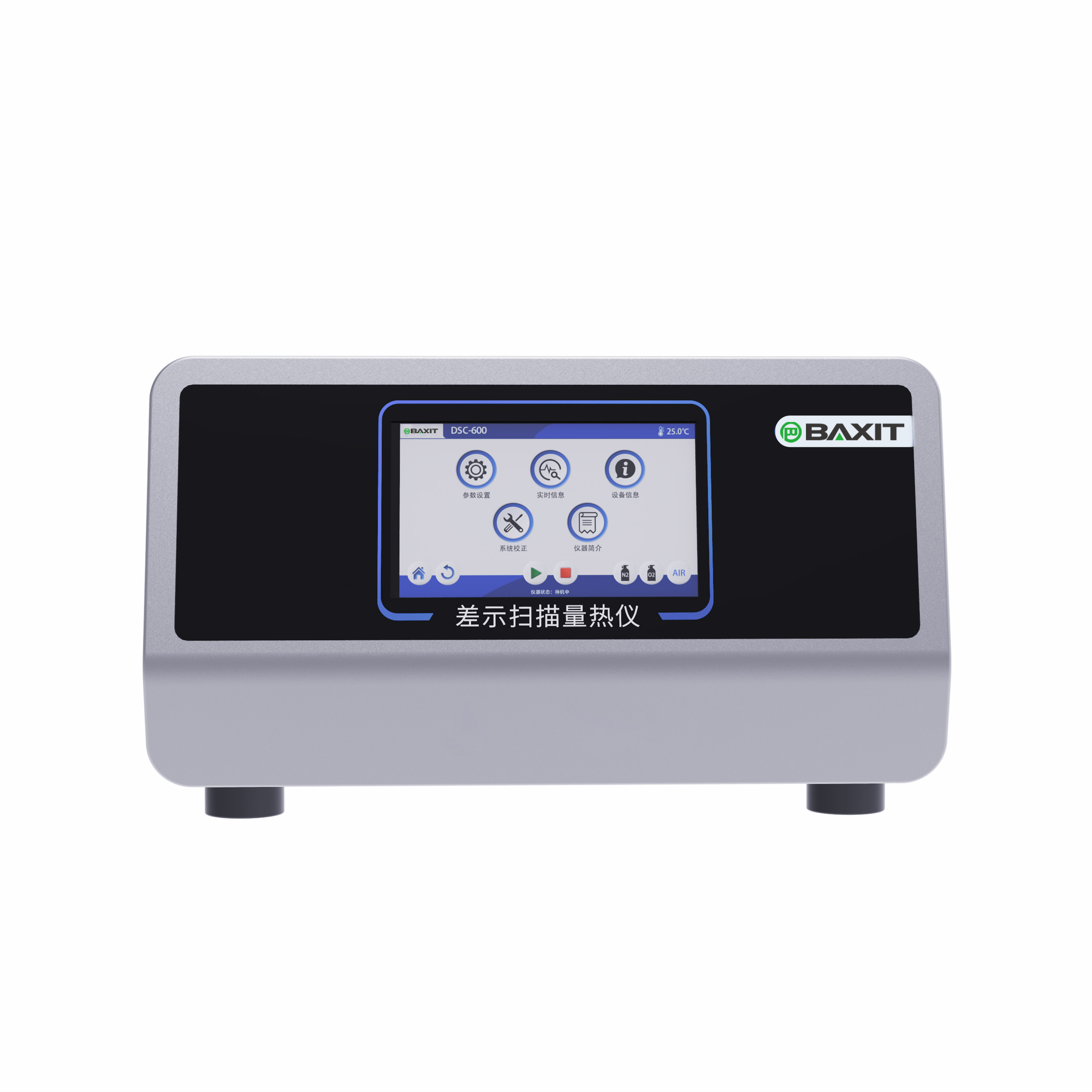

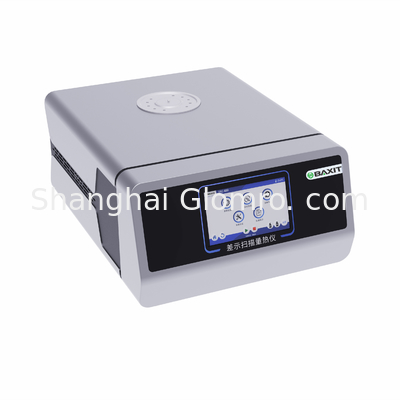

Product Picture:

Programmable LCD Touch Screen 600W Lab DSC Calorimeter 0Programmable LCD Touch Screen 600W Lab DSC Calorimeter 1Programmable LCD Touch Screen 600W Lab DSC Calorimeter 2
