150 Degrees Warming Scan DSC Thermal Analysis Machine

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: GLO-AD09
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8WORK DAY
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Temperature Control Mode: Full Program Automatic Control Curve Scan: Warming Scan
Atmosphere Control: Gas Mass Flowmeter Automatically Switches Two Gases Display Mode: 7-inch LED Touch Screen Display
Certification: CE,ISO,GB Data Interface: USB Standard Interface
High Light:

DSC Thermal Analysis Machine

,

Warming Scan Differential Scanning Calorimeter

,

GB DSC Differential Scanning Calorimeter


Product Description

TOP1 High-quality DSC analyzer differential scanning calorimeter thermal analyzer by Glomro



QUICK DETAILS
With liquid nitrogen refrigeration, the instrument achieves linear temperature reduction by controlling the flow of liquid nitrogen. The minimum temperature can be reduced to minus 150 degrees. Differential Scanning Calorimetry (DSC) as a classic thermal analysis method for thermal effects at controlled process temperatures, research and development in various types of materials and chemistry, process optimization, quality control and failure analysis, etc. The occasion has long been widely used. Using the DSC method, we can study the phase transition of inorganic materials, the melting of polymers, the crystallization process, the polymorphism of drugs, and the solid/liquid ratio of foods such as oils and fats. Meet the national standard GB/T2951.42-2008, GB/T15065-2009, GB/T17391-1998.

APPLICATION
Measure heat related physical and chemical changes such as glass transition temperature and melting point. Melting temperature, crystallization and crystallization heat, phase transition reaction heat, product thermal stability, curing/crosslinking, oxidation induction period, reaction kinetics, specific heat, etc.

ADVANTAGES
1, industrial-level widescreen touch structure.
2, by controlling the flow of liquid nitrogen to achieve linear cooling, the instrument can linearly cool to minus 150 degrees.
3, USB communication interface.
4, the furnace body structure is compact, the heating and cooling rate can be arbitrarily adjustable, can achieve linear cooling and linear heating function.
5, to improve the installation process, all using mechanical fixing method to completely avoid the internal body of the gel on the differential heat signal pollution.
6. High-precision imported dual temperature sensor ensures high repeatability of sample temperature measurement.
7. The digital gas mass flowmeter automatically switches two air flow rates, with fast switching speed and short settling time.
8, standard standard sample, to facilitate the customer to calibrate the temperature coefficient.
9, software adaptive resolution of the computer screen.
10, support for user self-programming program, to achieve full automation of the measurement process. Complex operations are simplified into one-click operation.
11, Double temperature probe, make sure the height of the sample temperature measurement repeatability. Temperature sensor is installed on furnace walls all the way, used for PID control of the furnace body temperature, but due to the temperature of thermal inertia, conduction to the temperature on the sample have some deviation, and deviation degree of chun xiaqiu winter is different, therefore, with one temperature probe temperature control and temperature measurement, differential thermal signals and temperature signals, the error is larger; The instrument in the bottom of the sample how to install a temperature probe, used to measure the real temperature of the sample, and used our special temperature control technology, control the temperature of furnace wall temperature to reach the set temperature.

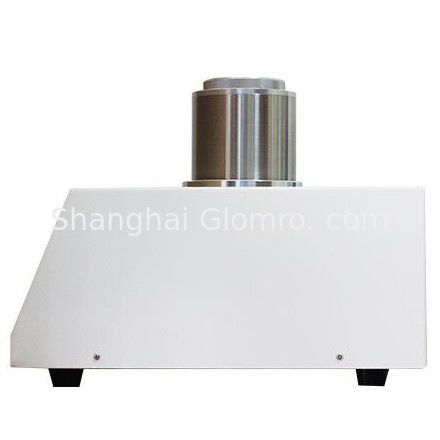

150 Degrees Warming Scan DSC Thermal Analysis Machine 0150 Degrees Warming Scan DSC Thermal Analysis Machine 1

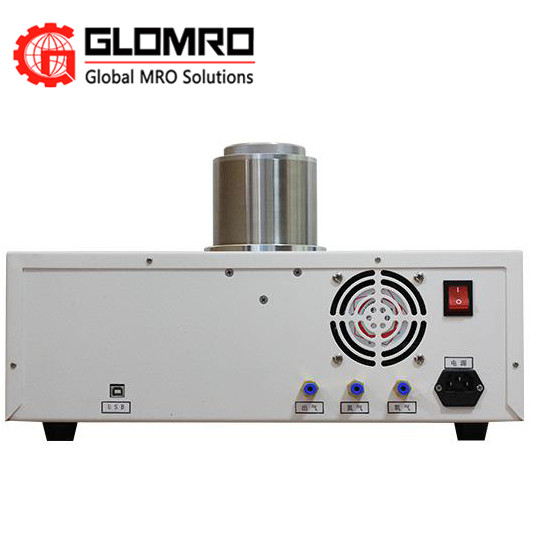

150 Degrees Warming Scan DSC Thermal Analysis Machine 2

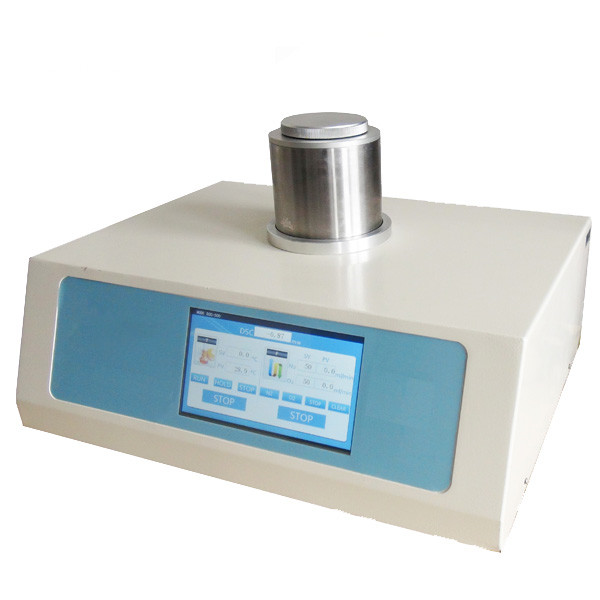

150 Degrees Warming Scan DSC Thermal Analysis Machine 3




Technical Parameter

DSC range: 0~±500mW
Temperature range: -150~500°C
Heating rate: 0.1~50°C/min
Cooling rate: 0.1~10°C/min
Temperature Resolution: 0.01°C
Temperature accuracy: ±0.1°C
Temperature repeatability: ±0.1°C
DSC Accuracy: ±1%
DSC Resolution: 0.1uW
Temperature control mode: Temperature increase, constant temperature, cooling, cycle temperature control (full program automatic control)
Curve Scan: Warming Scan
Atmosphere control: Gas mass flowmeter automatically switches two gases
Display mode: 24bit color, 7-inch LED touch screen display
Data Interface: USB standard interface, supporting the corresponding operating software
Parameter Standards: With standard calibrators, with one-key calibration function, users can calibrate their own temperature
Working power supply: AC220V 50Hz/60Hz




Packaging & Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

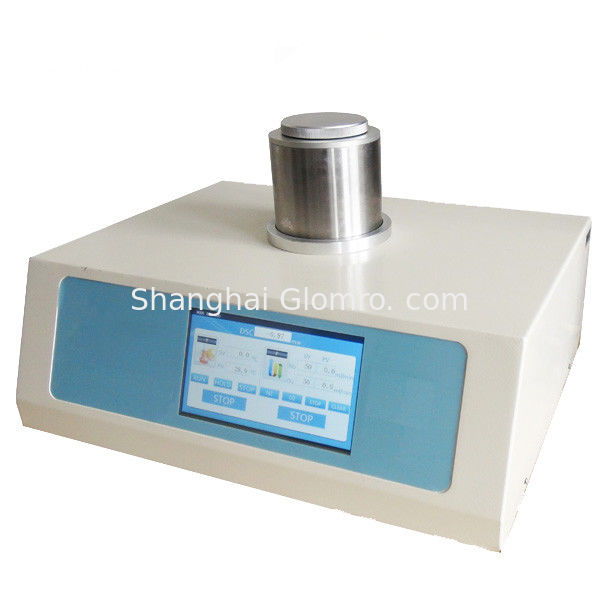

150 Degrees Warming Scan DSC Thermal Analysis Machine 4
Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers' consultation.
2. Middle service
-- Fullfill customer's request:
-- Payment method depends on customer.
-- Promptly production and delivery
-- Can provide invoice value if you want to decrease your tax.
3. After sale service
-- One year warranty service and all life maintenance.
-- Technical Egineer are avalible for oversea trainning.
-- Remote control technical consult
