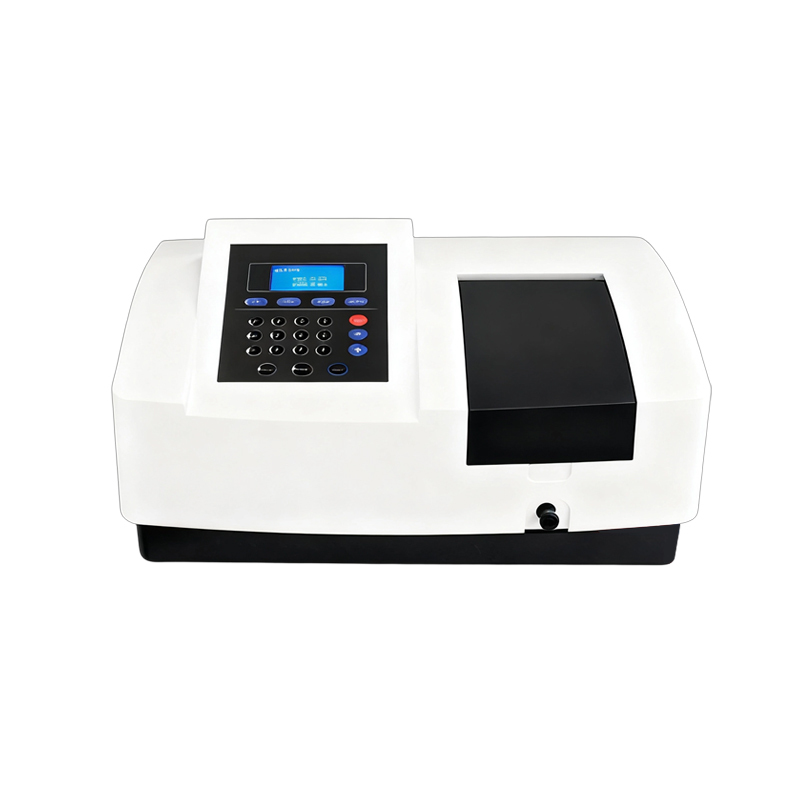

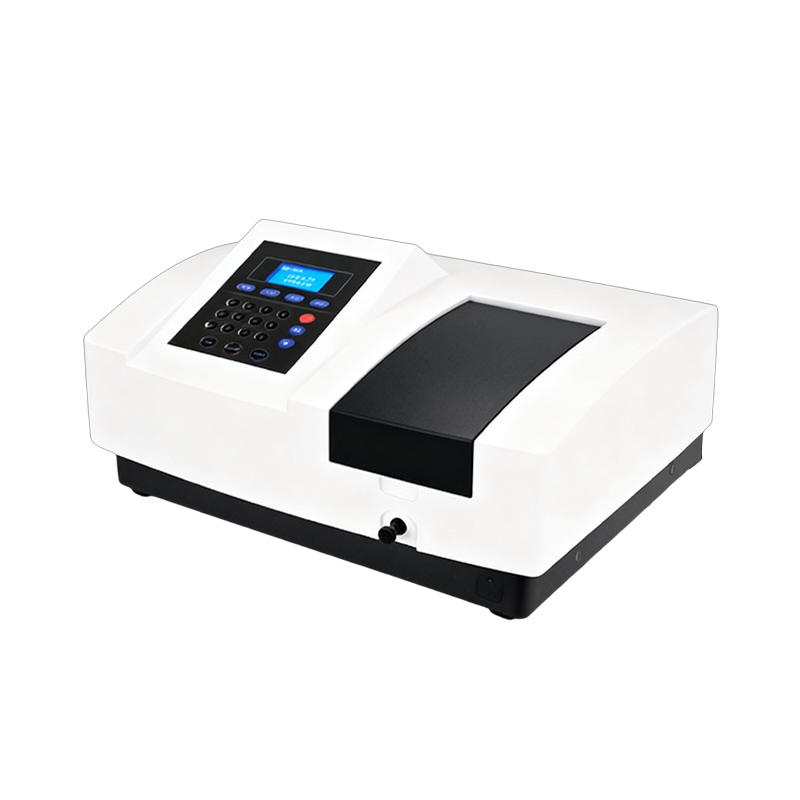

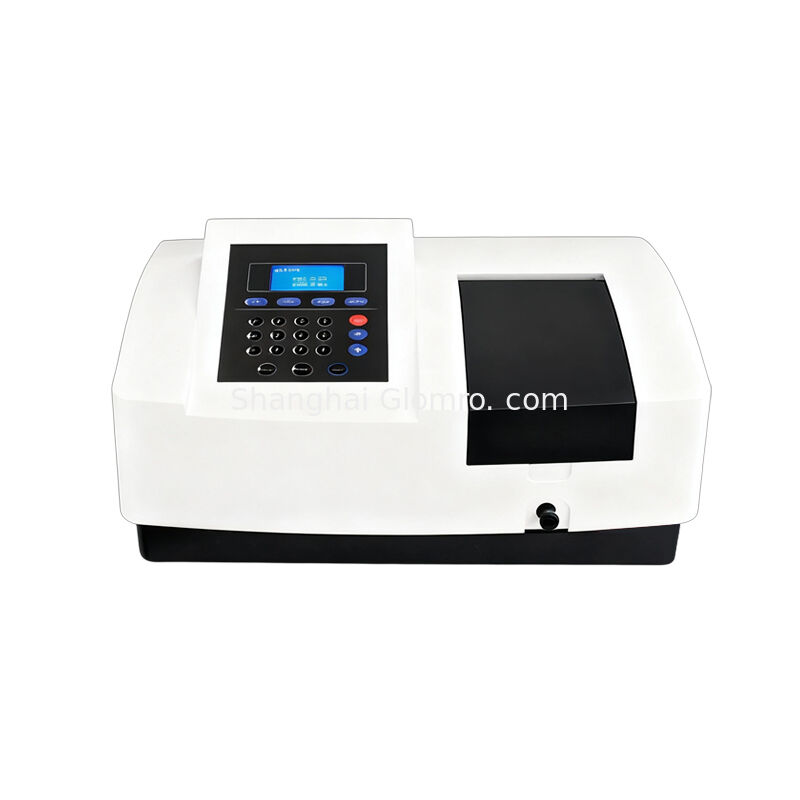

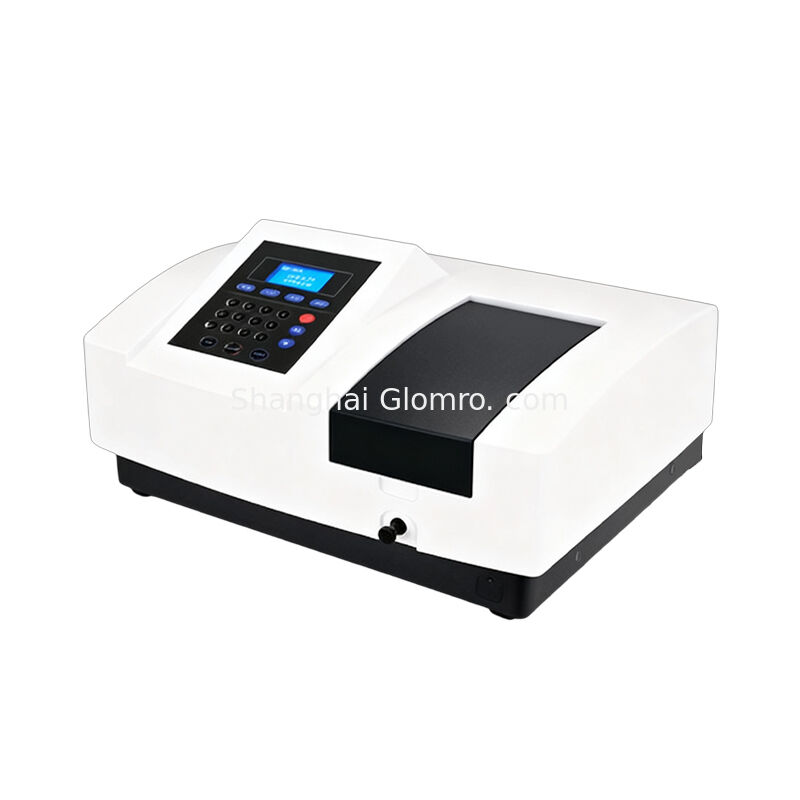

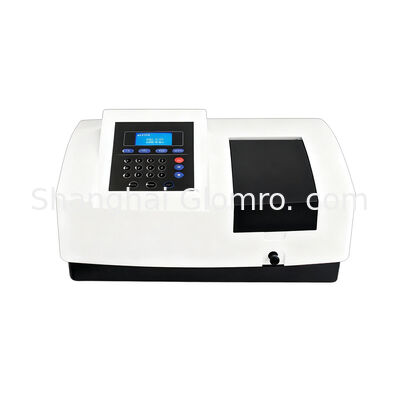

Scannable visible light photometer
Main features of the scanning visible spectrophotometer (single beam):
1. The unique optical system, high-performance 1200 lines/mm grating and imported detector ensure the excellent performance indicators of the instrument.
2. The instrument adopts a 128x64 dot matrix LCD display, which can directly show the standard curve and test data. The main unit can store test data and an optional printer can be used for printing.

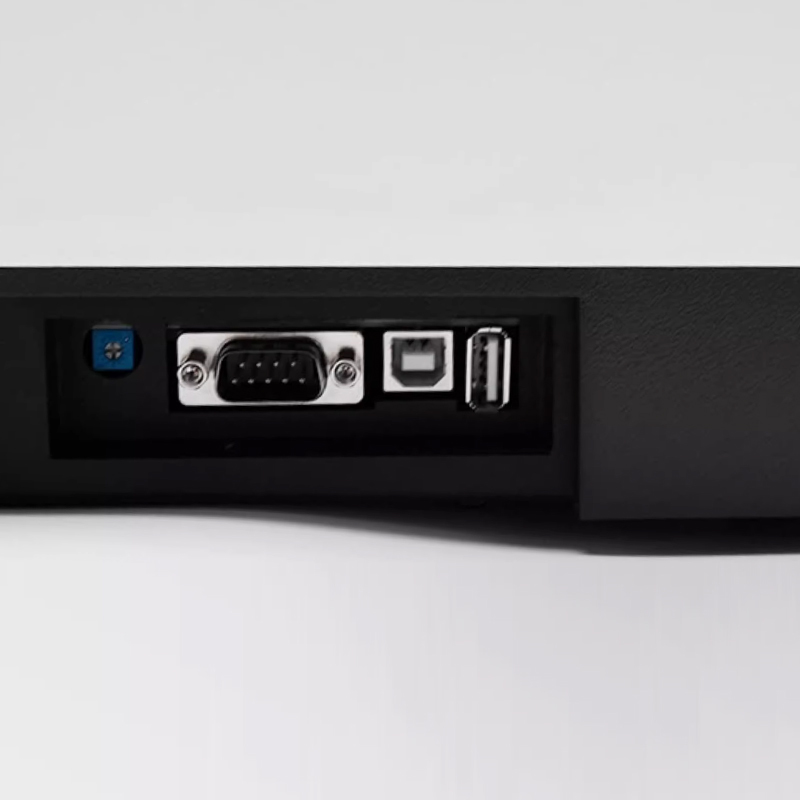

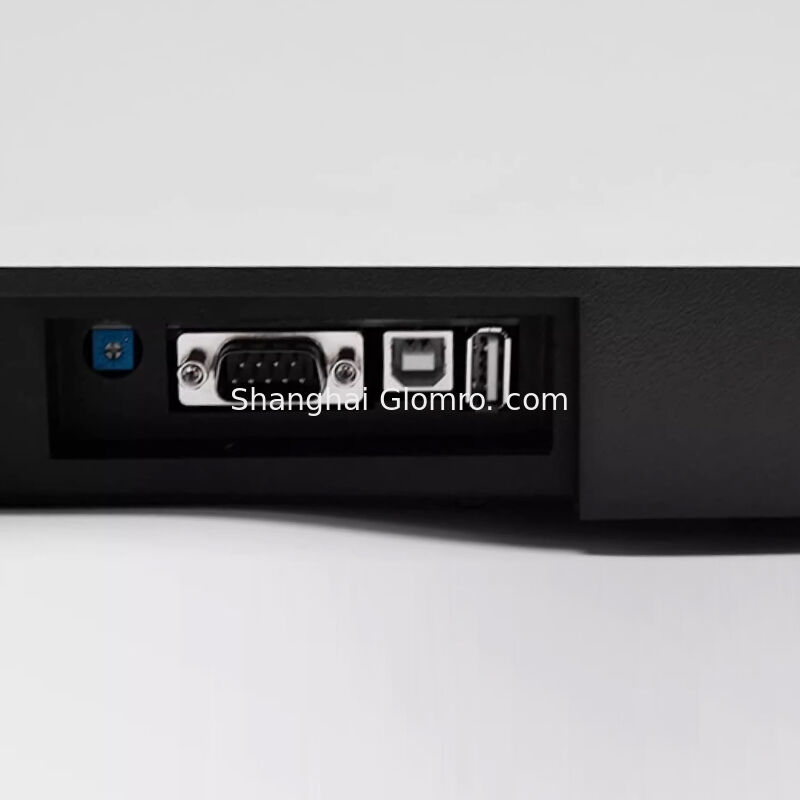

3. USB data output interface, and the YOKE3.0 professional software can be optionally selected for online operation.
4. The instrument is equipped with built-in analysis software, which can use the standard curve for related tests. It can perform continuous tests and store 200 sets of data, as well as 100 standard curves. Users can directly name them and call them conveniently according to the names.
5. Automatic wavelength calibration and automatic wavelength setting.

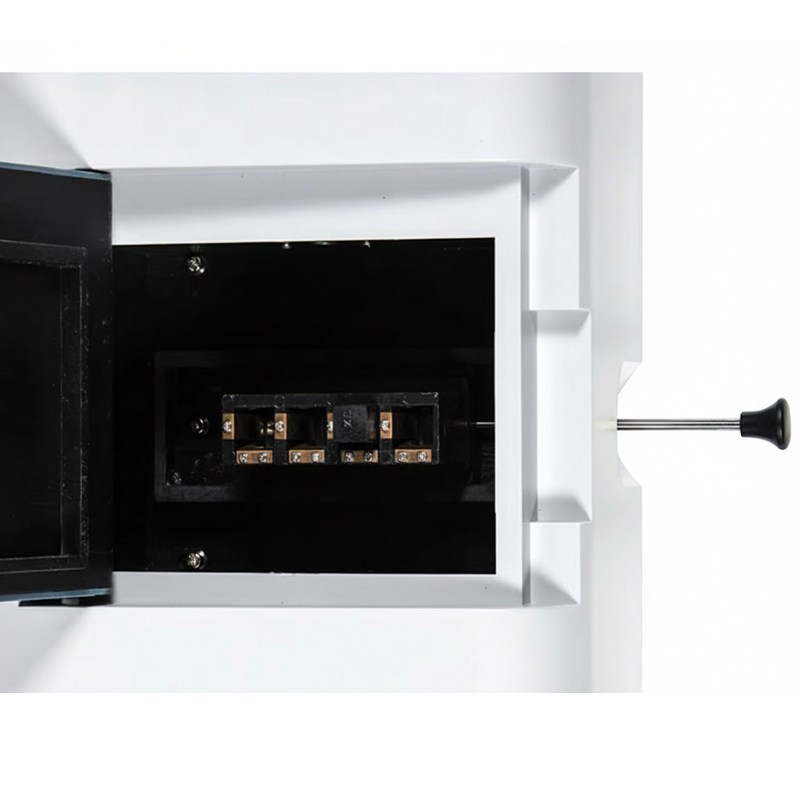

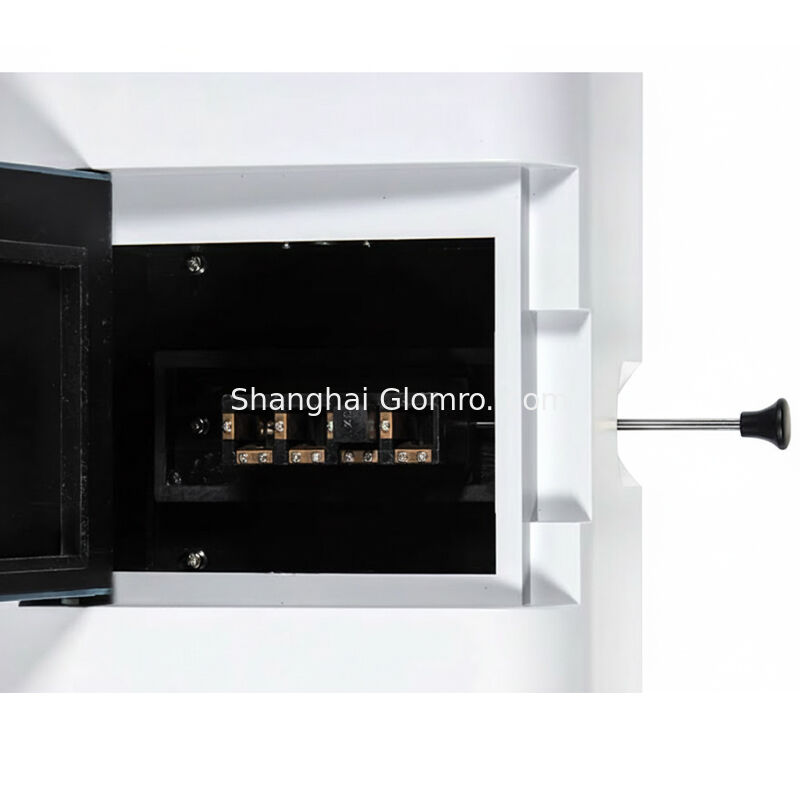

6. The spacious sample chamber can accommodate various specifications of cuvettes ranging from 5 to 100mm.
7. Ultra-thin keys make the operation simple and convenient.
| Model |
BXT-7230G |
BXT-723(CRT) |
| Optical system |
Double beam |
| Wavelength range |
320-1100nm |
| Wavelength accuracy |
±1nm |
±0.5nm |
| Spectral bandwidth |
4nm |
2nm |
| Wavelength repeatability |
0.5nm |
0.2nm |
| Stray light |
≤0.1%T@360nm |
≤0.05%T@360nm |
| Accuracy of luminosity |
0.5%T |
0.3%T |
| Luminance repeatability |
0.2%T |
| Luminosity range |
0-200%T,-0.301-3.000A |
| Baseline linear type |
±0.002A |
±0.004A |
| Stability |
±0.002A/h@500nm |
±0.001A/h@500nm |
| Display range |
-0.3-3A,0-200%T,0-9999C |
| Display system |
128*64 dot matrix liquid crystal display |
| Weight |
12kg |
