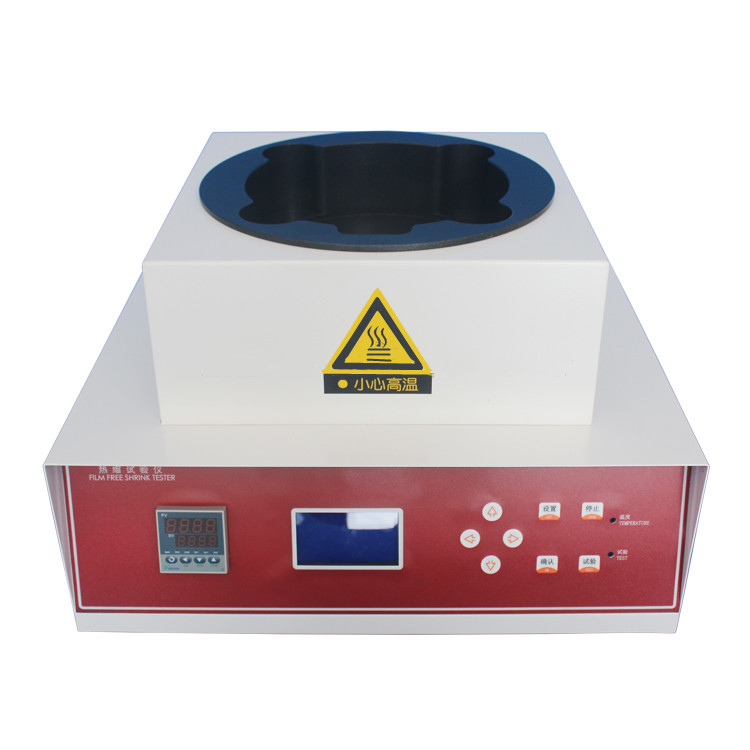

ASTM D2732 LCD Display Film Heat Shrink Packing Machine

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: GLO-HS-2
Minimum Order Quantity: 1 set
Packaging Details: 1610X600X1310 cm
Delivery Time: 5-8workdays
Payment Terms: T/T, L/C
Supply Ability: 100+sets+5days
Detail Information
Condition:: New Brand Name: BAXIT
Warranty: 12 Months Model Number: GLO-HS-2
Net Weight: 24kg Power Supply: AC220V 50HZ
Sample Size: ≤140 Mm * 140 Mm Power: Electronic
High Light:

ASTM D2732 Flammability Testing Equipment

,

Film Heat Shrink Packing Machine

,

LCD Heat Shrink Packing Machine


Product Description

ASTM D2732 Plastic Film Heat Shrink Tester/Packing Machine



It is suitable for testing various plastic film, heat shrinkable tube, medicinal PVC hard sheet, back sheet and other materials for heat shrinkage performance and dimensional stability in liquid medium at various temperatures.

The digital P.I.D temperature control technology not only can quickly reach the set temperature, but also can effectively avoid temperature fluctuations.

Liquid medium heating provides a stable test environment

The system automatically timed, which effectively guaranteed the accuracy of the test data.

Microcomputer control, LCD display, PVC operation panel, menu interface, convenient for users to operate quickly

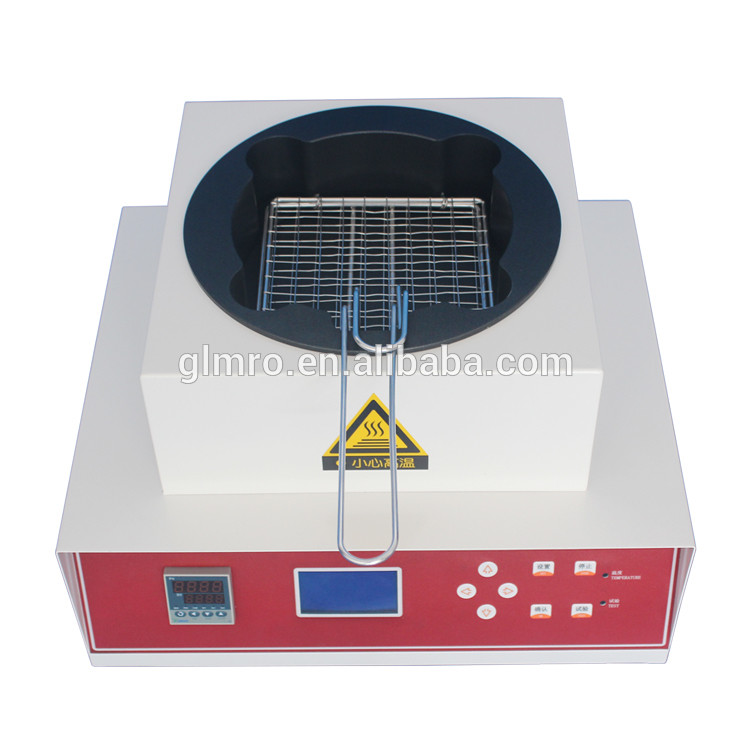

Equipped with a standard sample holding film grid to ensure a smooth test

Test Principle

Draw a symmetry axis in the longitudinal and lateral directions of the sample, and mark the longitudinal and lateral directions. Place the sample flat between the two frames, then quickly immerse it in a constant temperature medium of 120±2 °C, and take it out after 20 s. Immerse in a spare room temperature bath, remove the sample after cooling for 5 s, let it stand horizontally, and measure the vertical and horizontal axis of symmetry within 30 min. Accurate to 1 mm and record measurement data.

Test Standard

The instrument meets the standards: GB/T 13519, ASTM D2732

Application Field

Film

It is suitable for testing the heat shrinkage properties of various films in liquid media at various temperatures, such as alcohol, cans, mineral water, PE shrink film for overall packaging of various beverages, and PVC, POF. , OPS, PET, etc. suitable for various packaging shrink film



Technical indicators

Sample size:≤140 mm × 140 mm

Temperature range:room temperature to 200 ° C

Temperature control accuracy:±0.3°C

Power supply:AC 220V 50Hz

Dimensions:440 mm (L) × 370 mm (W) × 310 mm (H)

Net weight:24 kg



Instrument configuration

Standard configuration: 5 sets of mainframe and clamping net, holding net bracket

Optional: clamping net, clamping net bracket





ASTM D2732 LCD Display Film Heat Shrink Packing Machine 0ASTM D2732 LCD Display Film Heat Shrink Packing Machine 1











Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the orderASTM D2732 LCD Display Film Heat Shrink Packing Machine 2







Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult







Company Information

Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!

ASTM D2732 LCD Display Film Heat Shrink Packing Machine 3

ASTM D2732 LCD Display Film Heat Shrink Packing Machine 4ASTM D2732 LCD Display Film Heat Shrink Packing Machine 5

ASTM D2732 LCD Display Film Heat Shrink Packing Machine 6

ASTM D2732 LCD Display Film Heat Shrink Packing Machine 7







FAQ



Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.

Q:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you n
