Thermal Insulation Rock Wool Thermal Load Test Device

Basic Information
Place of Origin: Shanghai, China(mainland)
Brand Name: BAXIT
Model Number: BXT-RH
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 10Set per day
Detail Information
Ambient Temperature: Room Temperature ~ 40 ° C Relative Humidity: ≤75%
Operating Voltage: AC 220V±10V 50Hz Heating Rate: 5°C/min±0.3°C And 3min±0.2°C Can Be Set
High Light:

flammability test apparatus


fire testing equipment

Product Description

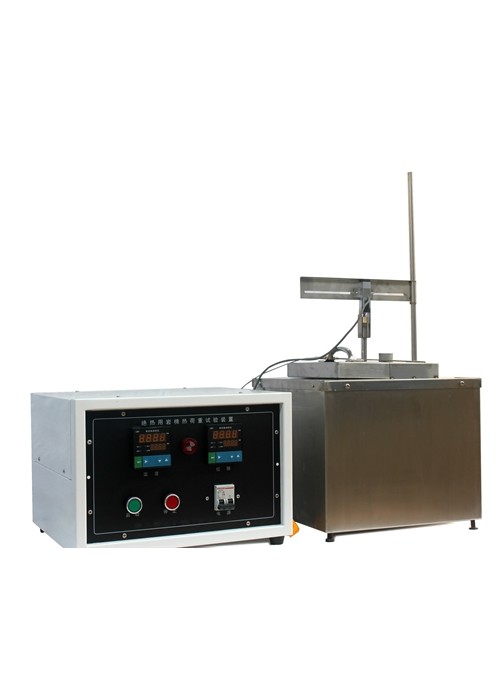

Thermal Insulation Rock Wool Thermal Load Test Device


First, the scope of use
The thermal insulation rock wool thermal load test device is a test device developed according to the technical conditions stipulated in the National Standard GB/T11835-2007 "Adiabatic Rockwool, Slag Cotton and Products" of the People's Republic of China.


Second, product features
The product has reasonable structure, high touch screen control, high degree of automation, accurate recording time, stable performance and convenient operation.


Third, the main technical parameters
1. Microcomputer control, multi-point programming;
2. Ambient temperature: room temperature ~ 40 ° C Relative humidity: ≤ 75%
3. Working voltage: AC 220V ± 10V 50Hz
4. Total power: 1.5KW Heating power: 1000W
5. Zoom measurement range: room temperature ~ 900 ° C
6. Heating rate: 5 °C / min ± 0.3 ° C and 3 ° C / min ± 0.2 ° C can be set
7. The instrument uses a single-chip computer, multi-point program temperature
8. Fixture: stainless steel material; corrosion resistant
9. The instrument heat source is hot plate
10. Equipment dimensions: length × width × height (0.45 × 0.35 × 0.78) m
11. Equipment weight: 50 Kg


Fourth, with the goods list
1. heating furnace
2. Control box
3. Thermocouple
4. Displacement sensor
5. Test tube
6. Instructions
7. Certificate of Qualification


Fifth, Applicable standards
GB/T11835-2007 Thermal insulation rock wool, slag wool and its products
ISO1716-2002 Reaction of building products to flame test Determination of heat of combustion
