| Place of Origin: | Shanghai, China(mainland) |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-T100 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 10Set per day |
| Power: | Electronic | Usage: | Tensile Testing Machine |
|---|---|---|---|
| Stretch Space: | 800 (mm) | Warranty: | 1 Year |
| Max Load: | 100 KN | Product Name: | Tensile Strength Tester / Tension Impact Test Machine |
| High Light: | tensile strength testing equipment,universal tensile tester |
||

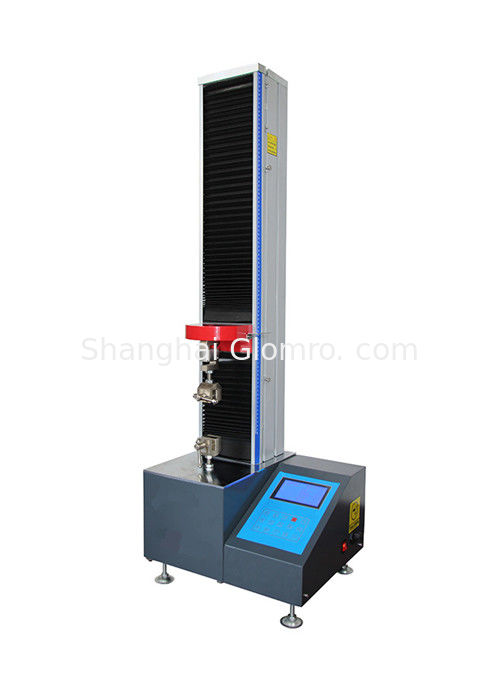

Tensile strength tester / Tension impact Test Machine
QUICK DETAIL
This machine is a new type of universal material testing machine combined with electronic technology and mechanical transmission. It is designed and manufactured according to GB, JIS, ASTM, DIN and other standards. It is used for the testing of metal and non-metal materials. Such as: castings, steel, copper, non-ferrous metals.
Wire can be stretched, compressed, bent, sheared, peeled, torn, two-point extension, and other tests. Can automatically calculate the tensile strength, elongation, yield strength, set stress, fixed edge stress, elastic modulus and other parameters
ADVANTAGES
1. Adjustable fixed device is added to adjust the upper and lower height of the measurement. The position is adjustable and the precision is high.
2. Automatic switching control, with stepless speed regulation.
3. Using a single arm structure, the structure is more stable
4. The fixture and the fixing table are made of hard material. The screw holes can be used M6 screws to fix the measured object with the fixture.
5. Compatible and equipped with a variety of styles of force gauge, can be configured with a digital push-pull gauge or pointer push-pull gauge
6. With three specifications of the test frame for customers to choose, effective test range can reach 200mm, 400mm, 700mm
TECHNICAL PARAMETERS
| Model | Glo-200-500N | Glo-400-500N | Glo-700-500N | Glo-200-1000N | Glo-400-1000N | Glo-700-1000N |
| Test load | 500N | 1000N | ||||
| Test range | 200mm | 400mm | 700mm | 200mm | 400mm | 700mm |
| Test speed | 25-280mm | |||||
| Power supply | AC220V | |||||
| Extermal size | 280*340*780 | 280*340*980 | 280*340*1270 | 280*340*780 | 280*340*980 | 280*340*1270 |
| Weight(kg) | 38 | 40 | 42 | 38 | 40 | 42 |
