Model Number: | GLO-D | Power: | Electronic |
---|---|---|---|
Usage: | Tensile Testing Machine | Product Name: | Universal Tensile Strength Testing Machine |
Size: | 740*500*2000mm | Certificate: | CE ISO |
Warranty: | 1 Year | Weight: | 500kg |
Rubbing Stroke: | 60mm | Stretch Stroke: | 650mm (can Increase) |
Power Supply: | 220V 50Hz | Maximum Test Force: | 100KN |
High Light: | tensile strength testing equipment,universal tensile tester |
30-50-100KN-10Ton-Universal-Tensile-Tension
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GLOMRO
Model Number:
GLO-D
Power:
Electronic
Max. load force:
30KN 50KN 100KN
Crosshead Travel(mm):
1000
Effective tensile space (mm):
700
Effective Test width (mm):
400
Crossbeam travel speed(mm/min):
0.001-500
Load accuracy:
Class 1 (class 0.5 optional)
Load range:
1%-100%FS (0.4%-100%FS optional)
Warranty:
12 Months
Certificate:
CE ISO SGS
Control method:
Computer control
Supply Ability:
350 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood packing for overseas transportation
Port
Shanghai
Lead Time :
Quantity(Sets) | 1 - 30 | >30 |
Est. Time(days) | 3 | To be negotiated |
Description
Tensile Tension Strength Tester Machines Supplier
1. Application

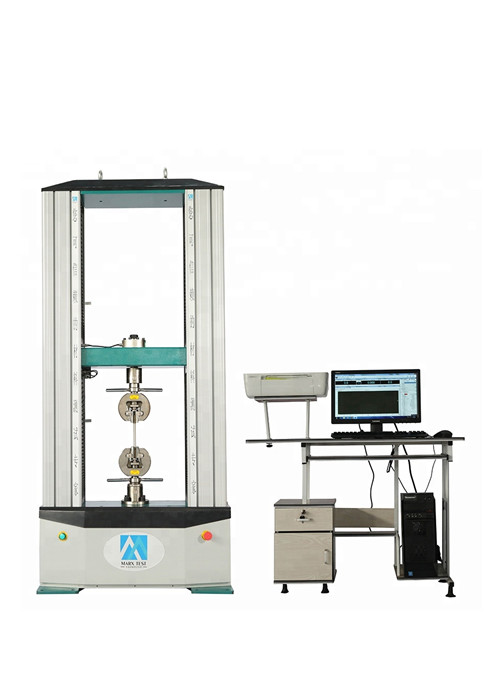

Microcomputer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.
2. Features
2.1 Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time
2.2 Can be installed extensometer to test deformation of rubber or metal material
2.3 Can do high temperature test by high temperature oven and furnace
2.4 Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
2.5 Can be customized height, width, and follow any test standard or customer request
3. Technical Parameters
Model | ETM-D 30 50 | ETM-D 100 |
Max. load force | 30KN 50KN | 100KN |
Crosshead Travel(mm) | 1000 | 1000 |
Effective tensile space (mm) | 700 | 700 |
Effective Test width (mm) | 450 | 500 |
Crossbeam travel speed(mm/min) | 0.001-500 | 0.001-500 |
Load accuracy | Class 1 (class 0.5 optional) | |
Load range | 1%-100%FS (0.4%-100%FS optional) | |
Load resolution | 1/300000 | |
Deformation Measurement Range | 0.2%~100%FS | |
Deformation accuracy | ≤±1% (≤±0.5% optional) | |
Deformation resolution | 1/500000 | |
Load control speed | 0.01~50 kN/s | |
Deformation control speed | 0.002~0.5mm/s | |
Tensile grip | Manual Wedge Fixture | |
Electronic Extensometer for metal material | YUU10/50 (optional) | |
Large deformation extensometer for rubber | DBX-800 (optional) |
