|Power:||Electronic||Usage:||Tensile Testing Machine|
|Stretch Space:||800 (mm)||Warranty:||1 Year|
|Max Load:||100 KN||Product Name:||20Ton Digital Universal Testing Strength Tester|
tensile strength testing equipment,
universal tensile tester

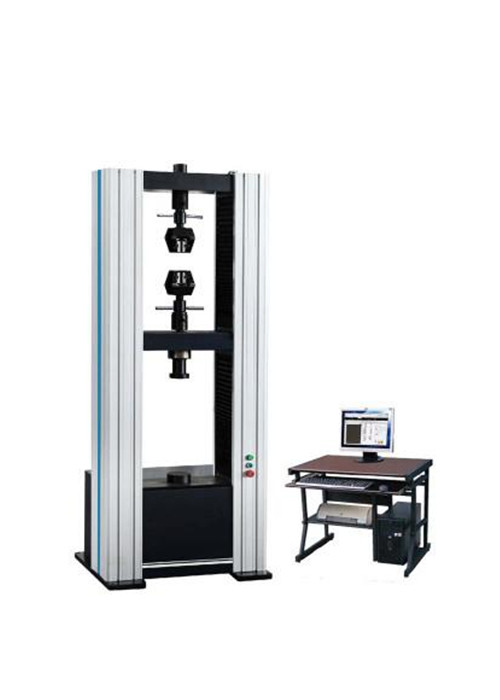

20Ton Digital Universal Testing Strength Tester
WE-600 series digital display hydraulic universal testing machine is mainly used for tensile test of mechanical properties such as tensile, compression and bending of metal materials. After adding simple accessories, it can test cement, concrete, brick, tile, rubber and its products. .
The machine consists of a double-column double-screw cylinder under-mounted main engine and a piano-type oil source control cabinet. The stretching space is located above the main unit, and the compression and bending tests are located below the main unit, that is, between the middle beam and the table. The adjustment of the test space is achieved by moving the middle beam, and the middle beam is lifted and driven by a chain. Manually adjust the oil intake of the oil delivery valve to achieve tensile, compression, bending and other tests. After the test is completed, the test results of the maximum force and tensile strength of the material are automatically obtained.
1. The special super-thick jaw seat holds the jaws completely in the jaw seat when the sample is clamped in the jaws, so that the sample clamping is more reliable, and the possibility of trumpet-shaped deformation damage due to the shallow jaw seat is eliminated. Greatly improve the service life of the equipment.
2. A wear-resistant lining plate is added between the jaw seat and the jaw plate to prevent the scale from falling during the metal stretching process, causing the slope of the jaw seat to be scratched, so that the clamping process is smoother and more secure.
3. The measurement and control system has fast running speed, gentle interface and various sample information input modes, which can meet the test of different materials. For the same condition, the sample is input multiple times automatically.
4. The test force shows that the resolution of the whole process is constant to ensure the accuracy of the measurement of the experimental data.
5. Test data (test force, loading rate) and test curve are displayed on the dynamic real-time screen along with the test process.
6. Automatic analysis, automatic storage and printing of experimental data after the end of the experiment.
7. When the load exceeds 2%-100% of the slow range, the automatic overload protection is stopped.
8, the decomposition test date can automatically query the relevant history.
9. The software reserves the data interface, which is convenient for the laboratory to be connected to the local area network, which is convenient for test data management.
1. Electronic force measurement, liquid crystal display test force-time curve, test force, test force peak, yield strength of materials with obvious yield characteristics, experimental data is convenient and intuitive;
2. Through the digital input sample number and cross-sectional area, the tensile strength and yield strength of the material can be directly measured;
3. Safety device
a) When the test force exceeds 3% of the maximum test force, the overload protection and the oil pump motor stop.
b) When the piston rises to the upper limit position, the stroke is protected and the pump motor is stopped.
|Tesing force Accuracy||≤±1% of indication|
|Max testing force||200KN|
|Testing force range||8-200KN|
|Maximum tensile test space||750mm|
|Maximum compression test space||380mm|
|Round specimen jaw clamping diameter||Diameter 6-26mm|
|Flat specimen jaw clamping thickness||0-30mm|
|Flat specimen maximum clamping width||75mm|
|Maximum distance between two points of bending test||300mm|
|Bending roll width||140mm|
|Clamping method||manual clamping|
|Oil source controlling table dimensions||500*750*1200|
