Tensile Strength Machine
Product introduction

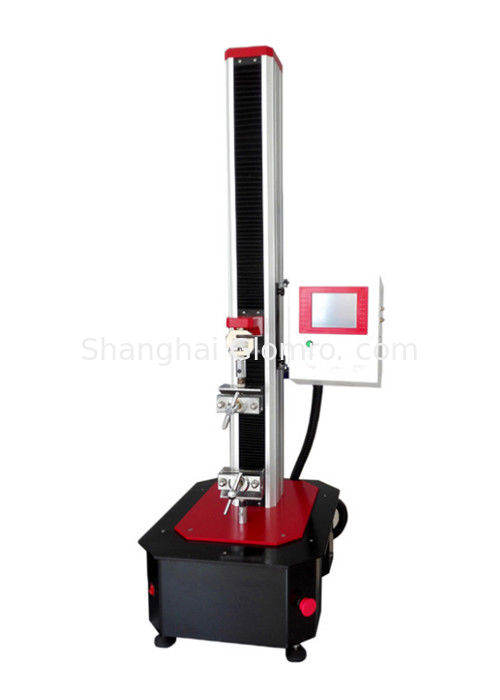

The microcomputer-controlled electronic universal testing machine is a new-generation dual-space microcomputer-controlled electronic universal testing machine specially designed for universities and research institutes. The design of the test machine mainframe and auxiliary equipment draws on the technology of Shimadzu, Japan. It has beautiful appearance, convenient operation and stable and reliable performance. The computer system controls the servo motor to rotate through the controller through the speed control system. After the deceleration system is decelerated, the moving beam is raised and lowered by the precision lead screw pair to complete the tensile, compression, bending, and other mechanical properties tests of the sample. Non-polluting, low noise, high efficiency, very wide speed range and beam moving distance, and a wide variety of test attachments, it has a very wide range of mechanical properties in metal, non-metal, composite materials and products. Application prospects. The machine is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, home appliances and other industries. It is a research institute, colleges and universities, e-industrial enterprises, technical supervision, commodity inspection and arbitration departments. The ideal test equipment.
Device type
Equipment parameters
Digital single-arm / microcomputer single-arm tensile testing machine
| Model | BXT-D10N | BXT-D50N | BXT-D100N | BXT-D200N |
| Maximum Test Force | 10N | 50N | 100N | 200N |
| Force Resolution | 1/1000000-100000 |
| Force Accuracy | ≤0.5% |
| Power amplification factor | Seven segments |
| Displacement Resolution | 1/1000 |
| Displacement accuracy | ≤0.3%
Force Units:Kg.N.KN.g.lb,Displacement Units:mm.cm.inch |
| Metal Extensometer Resolution | 1/1000(Customizable) |
| Metal Extensometer Accuracy | ≤0.5% |
| Large Deformation Extensometer Accuracy | ±1mm(Customizable) |
| Speed range | 0.001mm/min-1000mm/min(Special testing speeds can be customized according to customer requirements) |
| Walking space | 880mm
(Without the clamping device, the special testing space can be customized according to customer requirements) |
| Test width | 400mm(The special test width can be customized according to customer requirements) |
| power supply | 220V50Hz |
| Machine size | 450*350*1100mm |
| Machine weight | 45kg |
For more models, please contact the customer service.
Digital dual-arm / Microcomputer dual-arm tensile testing machine
| Model | BXT-S10KN | BXT-S20KN | BXT-S50KN |
| Maximum Test Force | 10KN | 20KN | 50KN |
| Force Resolution | 1/1000000-100000 |
| Force Accuracy | ≤0.5% |
| Power amplification factor | Seven segments |
| Displacement Resolution | 1/1000 |
| Displacement Accuracy | ≤0.3%
Force Units:Kg.N.KN.g.lb,Displacement Units:mm.cm.inch |
| Metal Extensometer Resolution | 1/1000(Customizable) |
| Metal Extensometer Accuracy | ≤0.5% |
| Large Deformation Extensometer Accuracy | ±1mm(Customizable) |
| Speed range | 0.001mm/min-1000mm/min
(Special testing speeds can be customized according to customer requirements) |
| Walking space | 1000mm
(Without the clamping device, the special testing space can be customized according to customer requirements) |
| Test width | 400mm
(The special test width can be customized according to customer requirements) |
| Power supply | 220V50Hz |
| Machine size | 760*500*1630mm | 750*520*1690mm |
| Machine weight | 240kg |
Optional fixtures for the equipment
