|Usage:||Tensile Testing Machine||Warranty:||1 Year|
|Function:||Universal Testing Machine||Application:||Rubber,film,plastic|
|Resolution Of Power:||1/100000||Power:||Electronic|
|Product Name:||50KN Universal Tensile Strength Testing Machine||Power Supply:||220V 50Hz|
|Power:||600w||Accuracy Of Power:||≤ 0.5%|
tensile strength testing equipment,
electronic tensile testing machine

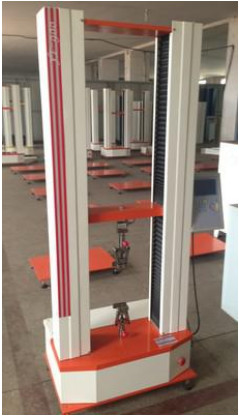

50KN Universal Tensile Strength Testing Machine
The machine can be used for rubber, plastic, foamed material, plastic, soft packing, pipe, fabric, fiber, nanomaterial, polymer, composite material, synthetic material, packing belt, paper, wire and cable, fiber optic cable, safety belt, belt, leather belt, footwear, adhesive tape, polymer, spring steel. Tests of tensile, compression, bending, tearing, 90 deg. peel, 180 degree peeling, shearing, bonding force, pulling force, elongation and elongation of stainless steel, casting, copper tube, nonferrous metal, auto parts, alloy materials and other non-metallic materials and metal materials.
A. high precision force transducers in the US: 5T, with a power accuracy of + 0.5%.
B. capacity segmentation: the whole process is seven files: x 1, x 2, x 5, x 10, x 20, x 50, x 100, using high precision 24 bits A/D, sampling frequency 200Hz.
C. power system: see configuration list
D.. Control system: Pulse Command control is adopted to make the control more precise and the speed control range 0.01~500 mm/min. The adjustment of the link board has the functions of fast coarse adjustment and slow fine adjustment. After the test, it will automatically return to the original point and automatically store it.
E. data transmission: RS232 transmission
F. display mode: UTM107+WIN-XP test software, computer screen display.
G. is a simple linear double calibration system for the first seven stages of the whole process.
H. Deluxe test interface software can achieve different test requirements, such as fixed speed, positioning shift, fixed load (set time), fixed load increase rate, constant stress increase rate, constant strain increase rate and multi order control mode.
I. test space: the test width is about 350 mm (Standard Specification), the joint board travel space is 950 mm (without fixture) (Standard Specification).
J. full displacement: encoder 2500 P/R, increase 4 times accuracy, LINE DRIVE encoder anti-interference ability is very strong, displacement analysis 0.001mm.
K. safety device: overload emergency stop device, upper and lower stroke limiting device, leakage automatic power failure system, automatic breakpoint shutdown function.
L. manual control mode: it can add wireless remote control device or manual operation box. (selected)
|Load weight:||5T interval matching|
|Resolution of power:||1/100000|
|Accuracy of power:||≤ 0.5%|
|Power Magnification:||7-Segment Automatic Switching|
|Metal extensometer resolution:||1/1000|
|Metal extensometer accuracy:||≤ 0.5%|
|Large deformation extensometer accuracy:||±1mm|
|Speed range:||0.01-500mm/min (special test speed can also be customized according to customer requirements)|
|Walking space:||950mm (without holder, special test space can also be customized according to customer requirements)|
|Test width:||350mm (special test width can also be customized according to customer requirements)|
Software function introduction:
A. test standard modularity function: provides user set the required application test standard settings, covering GB, ASTM, DIN, JIS, BS... And so on, test standard specification.
B. test data: provide users with all test data, input data permanently reused. The formula can be added to improve the compatibility of test data.
C. double report editor: fully open user edit reports for the tester to choose the form of report that you like (test program adds the built-in EXCEL report edit function to expand the pattern of previous single professional reports)
D. each length, strength unit and display digit are dynamically interchanged, strength units T, Kg, N, KN, G, LB, deformed unit mm, cm, inch.
E. graphics scale automatically optimisation (Auto Scale) enables graphics to be displayed at the best scale. It can also dynamically switch the real-time graphics in the test. It has load displacement, load time, displacement time, stress strain load -2 point extension diagram, and multi curve comparison.
F.The test results can be exported in the form of data in EXCEL format.
G.The test end can be automatically archived and manually archived, and the maximum strength, upper and lower yield strength, hysteresis loop method, progressive approximation method, non proportional extension strength, tensile strength, compressive strength, arbitrary point fixed elongation strength, arbitrary point fixed load extension, modulus of elasticity, elongation, maximum stripping interval value are calculated automatically. The minimum value, average value, net energy, reentry energy, total energy, bending modulus, breakpoint displacement x% load, breakpoint load X% displacement and so on. Data backup: test data can be saved in any hard disk partition.
H. multilingual random handover: Simplified Chinese, traditional Chinese and English.
I. software has a history test data demonstration function.
