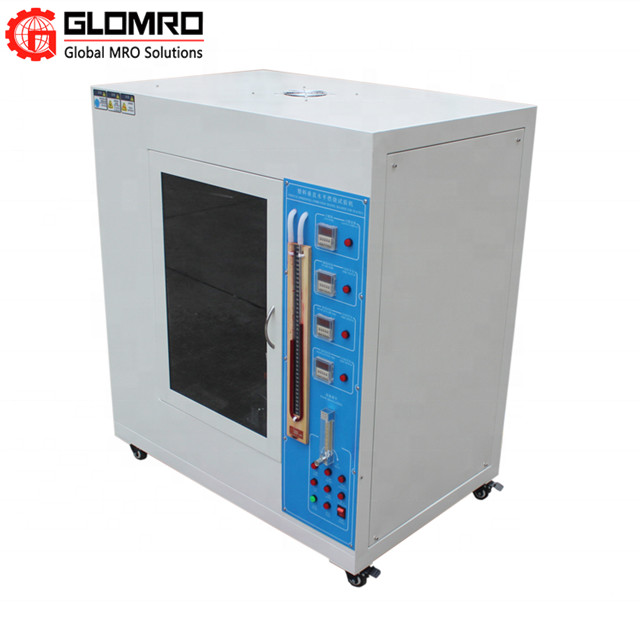

Professional Flammability Testing Equipment , Glow Wire Test Apparatus

Basic Information
Place of Origin: Shanghai, China(mainland)
Brand Name: BAXIT
Model Number: MRO-5660
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 days
Supply Ability: 10set per day
Detail Information
Power: Electronic Brand Name: Glomro
Model Number: GLO-53 Usage: Universal Testing Machine
Product Name: Building Materials Flammability Tester Ambient Temperature: 15°C~25°C
Relative Humidity: ≤85% Power Supply: 220V 50HZ 100W
Air Source: Liquefied Petroleum Gas SCM Control: Digital Display
Burner Aperture: 0.17mm Warranty: 1 Year
High Light:

combustion testing equipment

,

flammability test apparatus


Product Description

Quick Details

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

GLOMRO

Model Number:

MRO-5660

Power:

Electronic

Sample pressure:

1N ± 0.2 N

Temperature range:

500-1000C ±2C adjustable

Ironing into depth:

7mm ± 0.5 mm

Glow wire:

diameter 4mm±0.04mm Ni

Fire out time:

0-999.9 s

Test speed:

18±3mm/s

Thermocouple:

Imported B+B type

Light-off Time:

0-999.9 s ± 0.1 s

Inner box volume:

0.5M3

Supply Ability:

300 Set/Sets per Month

Packaging & Delivery

Packaging Details

Standard export wooden case

Port

Shanghai

Professional Flammability Testing Equipment , Glow Wire Test Apparatus 0

Lead Time :

Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated





Product Introduction:
Glow wire tester is used for electrician, its components, parts, solid electrical insulation materials or other solid combustible materials, in line with GB/T5169.10~13, IEC60695-2-1/0~2-1/3, GB2099 , VDE 0620, GB4706, UL817 test standards. Test method: Heat to the specified temperature with a standard resistance wire ring, and then make the glow wire in contact with the test sample under test conditions.
Plug-and-socket glow-wire tester is commonly used for electricians and their components, components, and also for solid electrical insulating materials or other solid combustible materials, in line with GB/T5169.10-13, IEC60695-2-1/0 2--1/3 , GB2099, VDE 0620, GB4706, UL817 test standards. Test method: Use a standard resistance wire ring to heat up to the specified temperature, and then make the glow wire and the test sample contact plug and socket rubber and plastic products under the test conditions.

Specification :
Glow wire temperature: adjustable from room temperature to 1000°C;
Temperature thermocouples use nominally Ø0.5mm nickel-chromium and nickel-aluminum (K) armor filament thermocouples;
Glow wire is made of 4mm±0.04mm diameter nickel/chromium (80/20) wire to form a size ring.


l Maintain a pressure of 1N ± 0.2N between the glow wire and the test sample, and limit the press-in depth to 7±0.5mm

l The application time of the glow wire to the sample Ta(T1) is adjustable from 0 to 99 minutes and 99 seconds. Generally according to the standard requirements

l Set for 30 seconds (setting timer "30S00"), and there is a timer for measuring the ignition duration Ti (T2) and the flame extinguishing time Te (T3).

l Dimensions (length x width x height):

l 113cm x 57cm x 120cm(Paint);

l 105 cm x65cm x 135cm(stainless steel);

l Studio volume: 0.5 cubic meters (other sizes can be customized)

l Chassis material: paint / stainless steel
Power supply mode: single phase
Operating voltage: AC 220V / 50Hz
Total power: 500W

working environment:



Temperature: 5 ~ 40℃;
Relative temperature: ≤85%
Workplace:

Location without violent shaking, impact,
vibration and non-corrosive air.



Packaging & Shipping



1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
Professional Flammability Testing Equipment , Glow Wire Test Apparatus 1


Our Services


If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers' consultation.
2. Middle service
-- Fullfill customer's request:
-- Payment method depends on customer.
-- Promptly production and delivery
-- Can provide invoice value if you want to decrease your tax.
3. After sale service
-- One year warranty service and all life maintenance.
-- Technical Egineer are avalible for oversea trainning.
-- Remote control technical consult



Company Information



Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!



Professional Flammability Testing Equipment , Glow Wire Test Apparatus 2Professional Flammability Testing Equipment , Glow Wire Test Apparatus 3
