LCD Touch Screen Rubber Thermogravimetric Analyzer

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-TGA1450
Minimum Order Quantity: 1
Price: USD8955
Packaging Details: wooden
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000units
Detail Information
Sensitivity Of Balance: 0.01mg Holding Time Of Constant Temp: 0~300min, Settable
Resolution Of Temperature: 0.1 °C Up Rate: 1~80°C/min
Sensitivity: 0.01mg
High Light:

Rubber Thermogravimetric Analyzer

,

LCD Touch Screen Thermogravimetric Analyzer

,

Intelligent Thermogravimetric Analyzer


Product Description

High Quality 1450C Thermo Gravimetric Analyzer TGA





Product description:

Thermogravimetric analysis (TG, TGA) is the change of the mass of a sample with temperature or time during temperature rise, constant temperature or temperature reduction. The purpose is to study the thermal stability and composition of the material. It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.



The following characteristics of the measurement and research materials:

Thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, additives and fillers.



Structural advantages:

★ Automatic temperature control mode: temperature up, keeping and cooling;

★ Build-in Gas flow indicator in Atmosphere device, gas velocity is adjustable;

★ Atmosphere: Inertia, oxidability, reducibility, static state, tendency;

★ Air flow Controlling: Static or dynamic atmosphere with gas flow control device;

★ Display: large LCD, real-time display theoretical temperature , actual temperature and working time;

★ When reach the setting temperature, machine automatically stop heating up and automatically cooling;

★ Providing easy operated software with user friendly characteristic;

★ Obtaining TGA diagram plus printing & filing capability of testing results;

★ Real-time display test curve;

★ Full equipped with accessories, convenient and easy to test.


Controller, software advantages:

1. Imported 32bit ARM processor Cortex-M3 core, sampling speed, processing speed is faster.

2.24bit four-way sampling AD collects DSC signals and TG signals and temperature T signals.

3. The power supply and water circulation part is separately controlled by 8bit single-chip microcomputer, so that the main unit and the cooling part are separated and do not interfere with each other, but the two are closely connected, and the cooling part is controlled by the host.

4. USB two-way communication between the software and the instrument, fully realize remote operation, the parameter setting of the instrument and the running of the instrument can be stopped by the computer software.

5.7-inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen



Technical Parameters:

Model

BXT-TGA1150

BXT-TGA1350

BXT-TGA1450

Temperature range

Room temperature

~ 1150 ° C

Room temperature

~ 1350 ° C

Room temperature

~ 1450 ° C

Temperature resolution

0.1 °C

0.1 °C

0.1 °C

Temperature fluctuation

±0.1 °C

±0.1 °C

±0.1 °C

Heating rate

1~80°C/min

1~80°C/min

1~80°C/min

Temperature control mode

Heating, constant temperature, cooling

Heating, constant temperature, cooling

Heating, constant temperature, cooling

Cooling time

15min (1000°C--100°C)

15min (1000°C--100°C)

15min (1000°C--100°C)

Balance measurement range

1mg ~ 2g, can be extended to 30g

1mg ~ 2g, can be extended to 30g

1mg ~ 2g, can be extended to 30g

Sensitivity

0.01mg

0.01mg

0.01mg

Constant temperature time

0~300min Arbitrary setting

0~300min Arbitrary setting

0~300min Arbitrary setting

Display mode

Large screen LCD display

Large screen LCD display

Large screen LCD display

Software

Intelligent software can automatically record TG curve for data processing and print experimental report

Intelligent software can automatically record TG curve for data processing and print experimental report

Intelligent software can automatically record TG curve for data processing and print experimental report

Data interface

Standard USB interface, special software (software upgrades from time to time)

Standard USB interface, special software (software upgrades from time to time)

Standard USB interface, special software (software upgrades from time to time)

Power supply

AC220V 50Hz

AC220V 50Hz

AC220V 50Hz

Appearance size

489*400*343mm (L*W* H)

489*400*343mm (L*W* H)

489*400*343mm (L*W* H)





Product Picture:

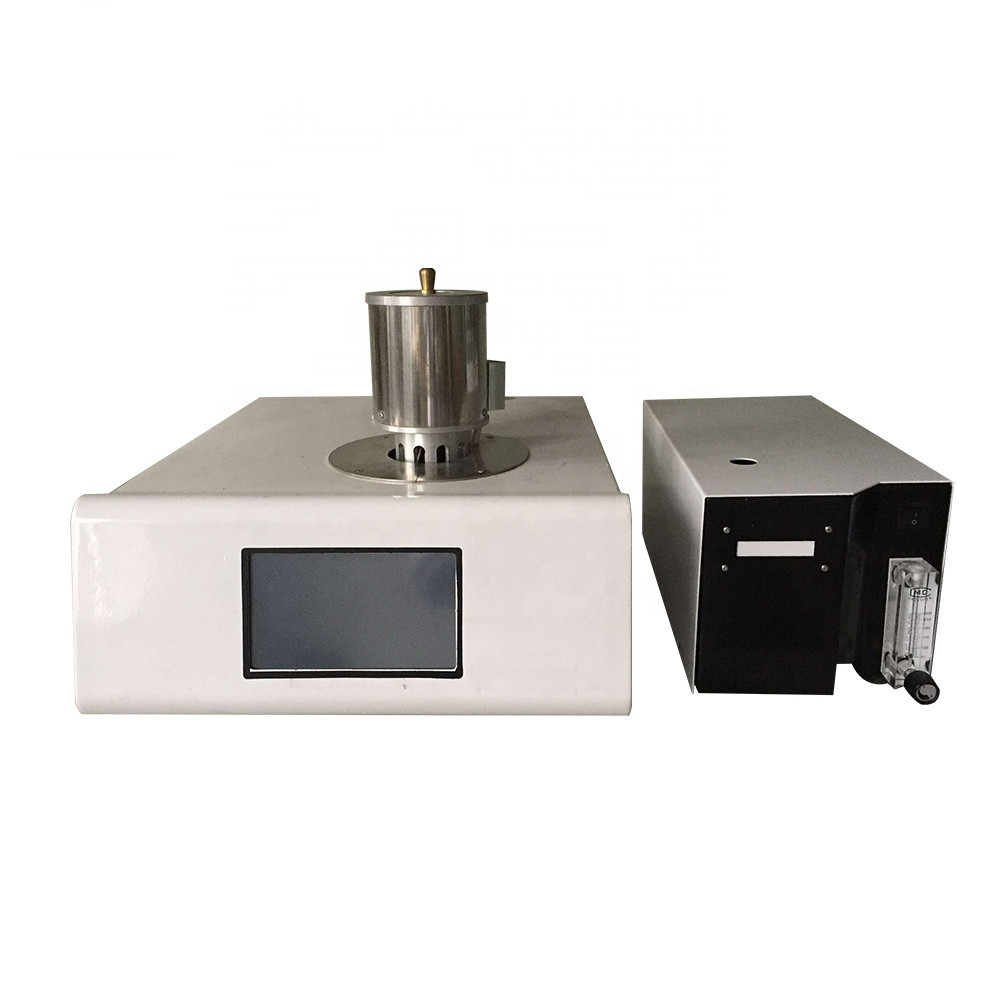

LCD Touch Screen Rubber Thermogravimetric Analyzer 0

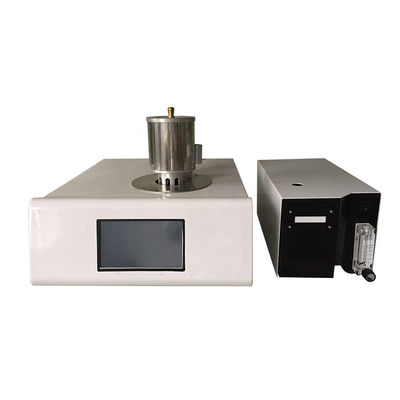

LCD Touch Screen Rubber Thermogravimetric Analyzer 1LCD Touch Screen Rubber Thermogravimetric Analyzer 2LCD Touch Screen Rubber Thermogravimetric Analyzer 3
