Name: | Thermo Gravimetric Analyzer | Temperature Range: | Room Temperature ~ 1250 ° C |
---|---|---|---|
Temperature Resolution: | 0.01 °C | Heating Rate: | 1~80°C/min |
Sensitivity: | 0.01mg | ||
High Light: | 1150C Thermo Gravimetric Analyzer,0.01mg Thermo Gravimetric Analyzer,TGA Thermo Gravimetric Analyzer |
BAXIT Thermo Gravimetric Analyzer TGA BXT-TGA-1250
Product description:
Thermogravimetric analysis (TG, TGA) is the change of the mass of a sample with temperature or time during temperature rise, constant temperature or temperature reduction. The purpose is to study the thermal stability and composition of the material. It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.
The following characteristics of the measurement and research materials:
Thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, additives and fillers.
Structural advantages:
1. The furnace body is heated by double-row winding of precious metal nickel-chromium alloy wire to reduce interference and high temperature resistance.
2. The tray sensor is made of precious metal nickel-chromium alloy and has the advantages of high temperature resistance, oxidation resistance and corrosion resistance.
3. Power supply, the circulating heat dissipation part is separated from the main unit to reduce the influence of heat and vibration on the micro-heat balance.
4. It adopts the upper open cover structure and is easy to operate. It is difficult to put the sample up the furnace and it is easy to cause damage to the sample rod.
5. The host uses a water temperature thermostat to isolate the thermal effects of the heating furnace on the chassis and the micro-heat balance.
6. Can replace the furnace body according to customer requirements
Controller, software advantages:
1. Imported 32bit ARM processor Cortex-M3 core, sampling speed, processing speed is faster.
2.24bit four-way sampling AD collects DSC signals and TG signals and temperature T signals.
3. The power supply and water circulation part is separately controlled by 8bit single-chip microcomputer, so that the main unit and the cooling part are separated and do not interfere with each other, but the two are closely connected, and the cooling part is controlled by the host.
4. USB two-way communication between the software and the instrument, fully realize remote operation, the parameter setting of the instrument and the running of the instrument can be stopped by the computer software.
5.7-inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen
Technical Parameters:
Model |
BXT-TGA-1250 |
BXT-TGA-1600 |
Temperature range |
Room temperature ~ 1250 ° C |
Room temperature ~ 1600 ° C |
Temperature resolution |
0.01 °C |
0.01 °C |
Temperature fluctuation |
±0.01 °C |
±0.01 °C |
Heating rate |
1~80°C/min |
1~80°C/min |
Temperature control mode |
Heating, constant temperature, cooling |
Heating, constant temperature, cooling |
Cooling time |
15min (1000°C--100°C) |
15min (1000°C--100°C) |
Balance measurement range |
1mg ~ 2g, can be extended to 30g |
1mg ~ 2g, can be extended to 30g |
Sensitivity |
0.01mg |
0.01mg |
Constant temperature time |
0~300min Arbitrary setting |
0~300min Arbitrary setting |
Display mode |
Chinese character large screen LCD display |
Chinese character large screen LCD display |
|
||
Software |
Intelligent software can automatically record TG curve for data processing and print experimental report |
Intelligent software can automatically record TG curve for data processing and print experimental report |
Data interface |
Standard USB interface, special software (software upgrades from time to time) |
Standard USB interface, special software (software upgrades from time to time) |
Power supply |
AC220V 50Hz |
AC220V 50Hz |
Appearance size |
489*400*343mm (L*W* H) |
489*400*343mm (L*W* H) |

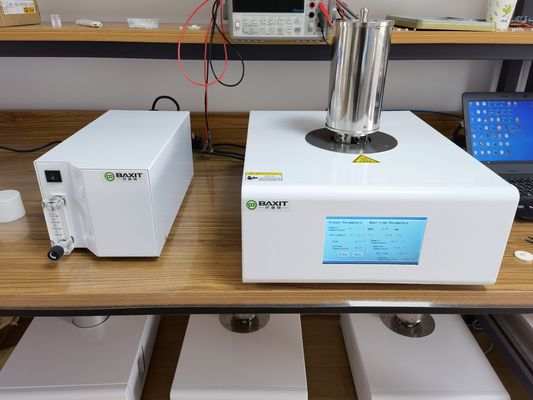

Product Picture:
