Plastics Quantitative Thermo Gravimetric Analyzer

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-TGA1350
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000units
Detail Information
Name: Thermogravimetric Analyzer Range Ability: 0~±2000μV
Heating Rate: 0.1~80℃/minute Power Supply: AC220V 50Hz
Instrument Size: 489*400*343mm
High Light:

Quantitative Thermo Gravimetric Analyzer

,

Plastics Thermogravimetric Analyzer

,

Additives Thermogravimetric Analyzer


Product Description

High Quality Thermo Gravimetric Analyzer TGA





Product description:

Thermogravimetric analysis (TG, TGA) is the change of the mass of a sample with temperature or time during temperature rise, constant temperature or temperature reduction. The purpose is to study the thermal stability and composition of the material. It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.



The following characteristics of the measurement and research materials:

Thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, additives and fillers.



Advantages:

1. Furnace heating using nickel-cadmium alloy double-wound wire system to reduce interference, but also high temperature.
2. Tray sensor, using precious metal nickel-cadmium alloy Seiko build, with high temperature, anti-oxidation, corrosion resistance and so on.
3. Power supply, circulation and cooling part of the host separate to reduce the heat and vibration on the microbalance impact.
4. Using open cover structure, easy to operate. Move the furnace body to put the sample operation is very difficult, easy to cause the sample rod damage.
5. The host uses water thermostat to isolate the thermal effect of the heating furnace on the chassis and the microbolometer.
6. According to customer requirements to replace the furnace.



Technical Parameters:

Model

BXT-TGA1150

BXT-TGA1350

BXT-TGA1450

Temperature range

Room temperature

~ 1150 ° C

Room temperature

~ 1350 ° C

Room temperature

~ 1450 ° C

Temperature resolution

0.1 °C

0.1 °C

0.1 °C

Temperature fluctuation

±0.1 °C

±0.1 °C

±0.1 °C

Heating rate

1~80°C/min

1~80°C/min

1~80°C/min

Temperature control mode

Heating, constant temperature, cooling

Heating, constant temperature, cooling

Heating, constant temperature, cooling

Cooling time

15min (1000°C--100°C)

15min (1000°C--100°C)

15min (1000°C--100°C)

Balance measurement range

1mg ~ 2g, can be extended to 30g

1mg ~ 2g, can be extended to 30g

1mg ~ 2g, can be extended to 30g

Sensitivity

0.01mg

0.01mg

0.01mg

Constant temperature time

0~300min Arbitrary setting

0~300min Arbitrary setting

0~300min Arbitrary setting

Display mode

Large screen LCD display

Large screen LCD display

Large screen LCD display

Software

Intelligent software can automatically record TG curve for data processing and print experimental report

Intelligent software can automatically record TG curve for data processing and print experimental report

Intelligent software can automatically record TG curve for data processing and print experimental report

Data interface

Standard USB interface, special software (software upgrades from time to time)

Standard USB interface, special software (software upgrades from time to time)

Standard USB interface, special software (software upgrades from time to time)

Power supply

AC220V 50Hz

AC220V 50Hz

AC220V 50Hz

Appearance size

489*400*343mm (L*W* H)

489*400*343mm (L*W* H)

489*400*343mm (L*W* H)

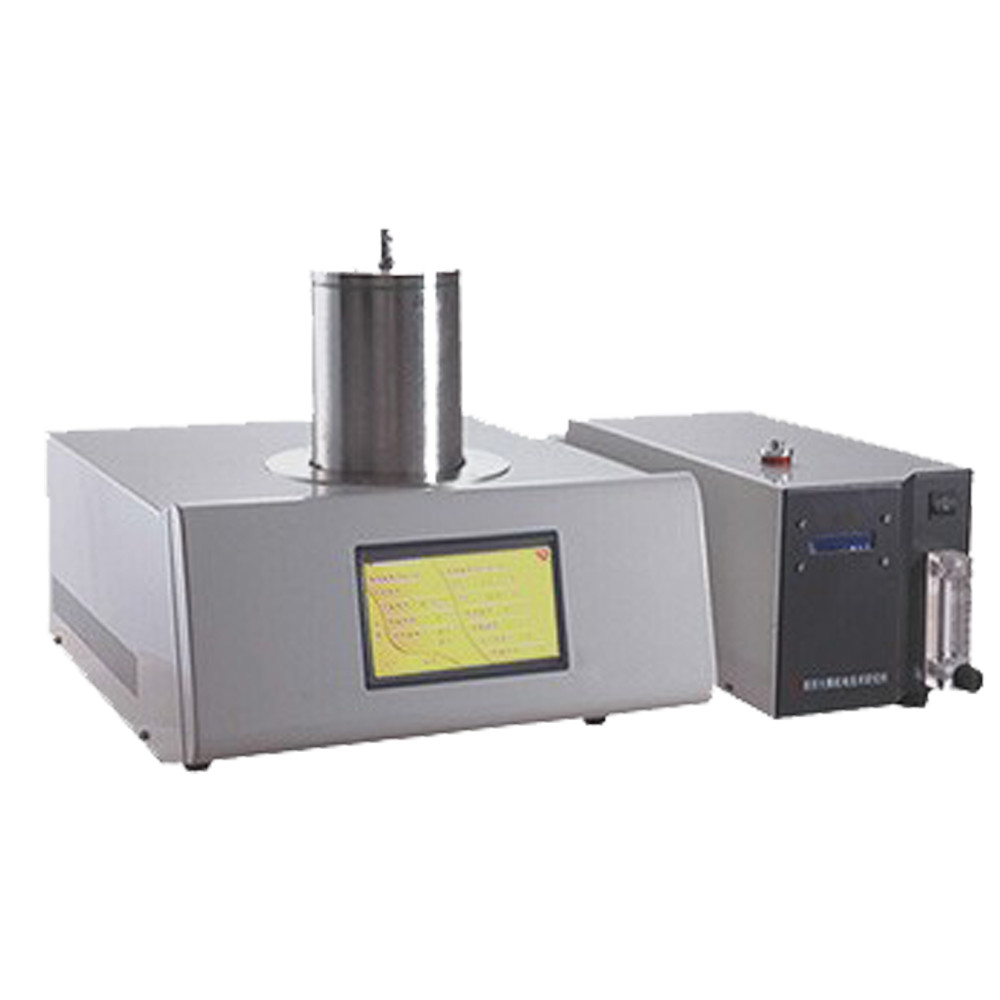

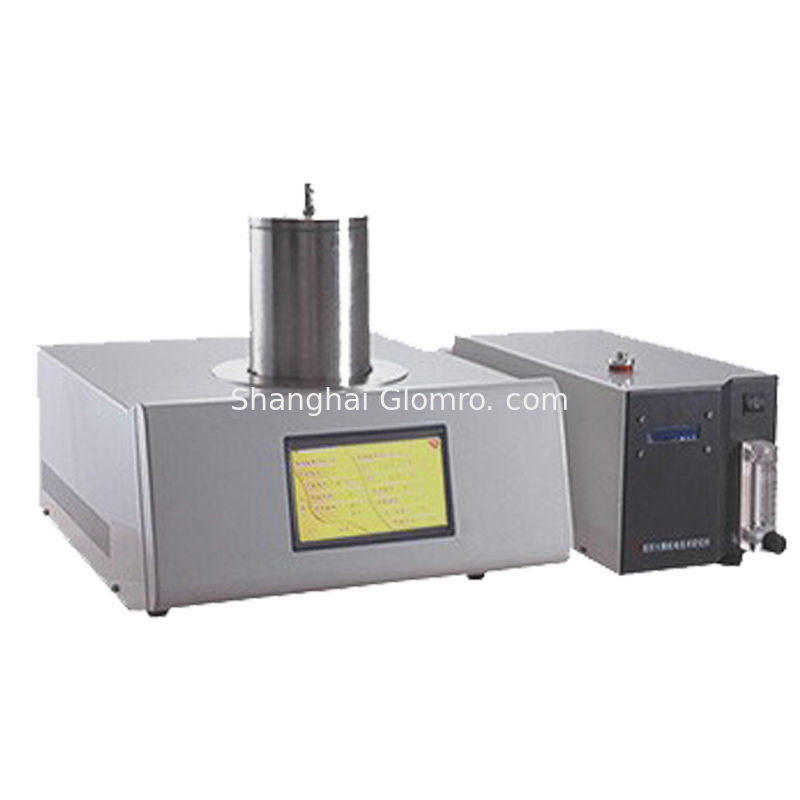

Product Picture:

Plastics Quantitative Thermo Gravimetric Analyzer 0Plastics Quantitative Thermo Gravimetric Analyzer 1Plastics Quantitative Thermo Gravimetric Analyzer 2
