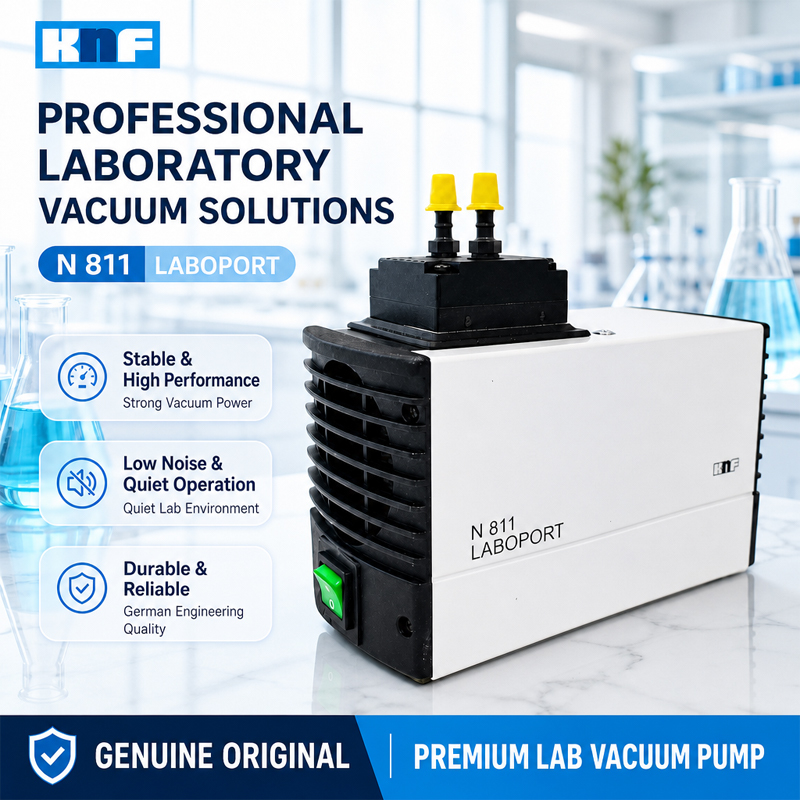

KNF N811KT.18 Oil-Free Diaphragm Vacuum Pump
Product Information:
KNF N811KT.18 Diaphragm Vacuum Pump is an original imported oil‑free vacuum solution for laboratory and chemical environments.
Constructed with PPS pump head, PTFE‑coated diaphragm and FFPM valve plates, this pump offers outstanding chemical resistance to corrosive vapors, organic solvents as well as acid‑base gases.
It provides 11.5 L/min pumping speed and ultimate absolute vacuum of 290 mbar. Continuous 24‑hour operation is available without oil lubrication, achieving maintenance‑free performance. Featuring compact structure, low vibration and low noise, it saves bench space for laboratories.
Typical applications include vacuum filtration, gas sampling, degassing, and vacuum matching for chemical reactors. Built‑in thermal protection ensures safe long‑time running.

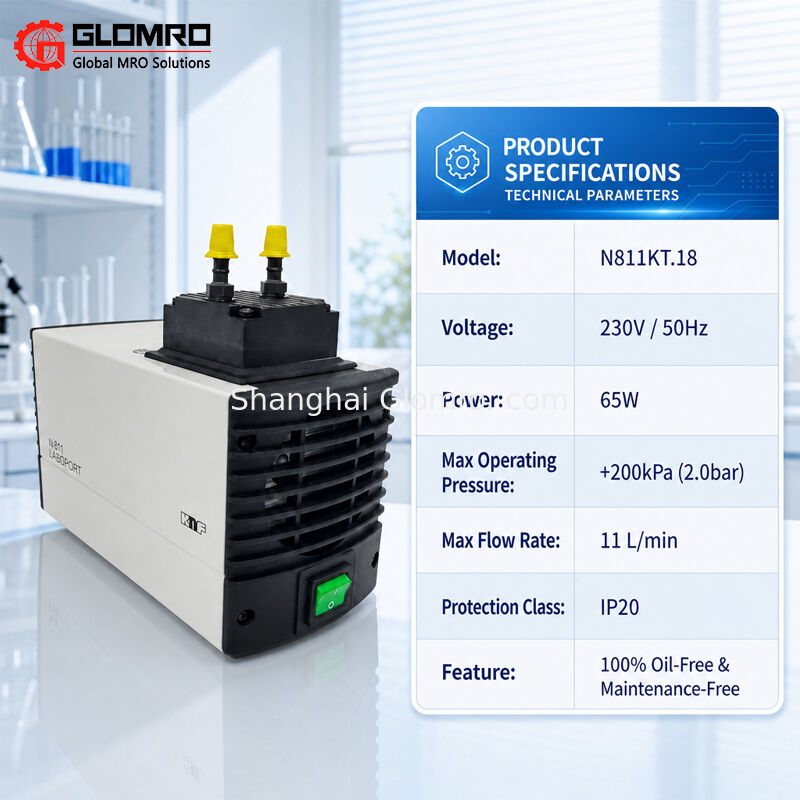

Technical Parameters:
| Name |
Oil-free diaphragm vacuum pump |
| Model |
N811KT.18
|
Voltage
|
230V/50Hz
|
| Rated Current |
0.8A |
Power
|
65W |
Max.Working Pressure
|
+200kPa(2.0bar)
|
Max.Flow Rate
|
11 L/min
|
Built-in Fuse
|
T1.0A (Time-lag)
|
Pump Head Material
|
PPS
|
| Diaphragm Material |
PTFE-coated |
| Valve Material |
FFPM |

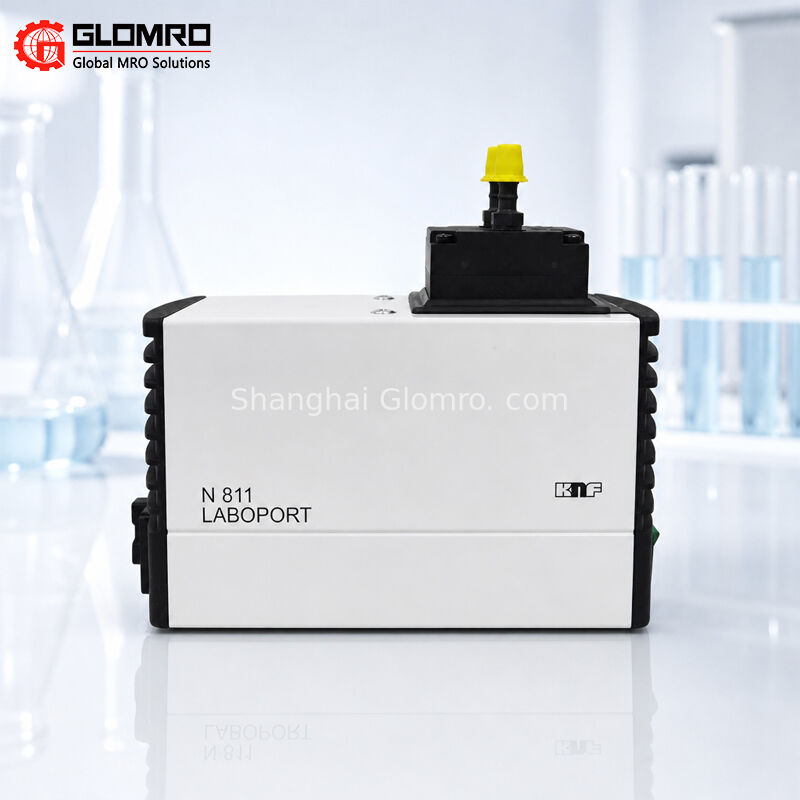

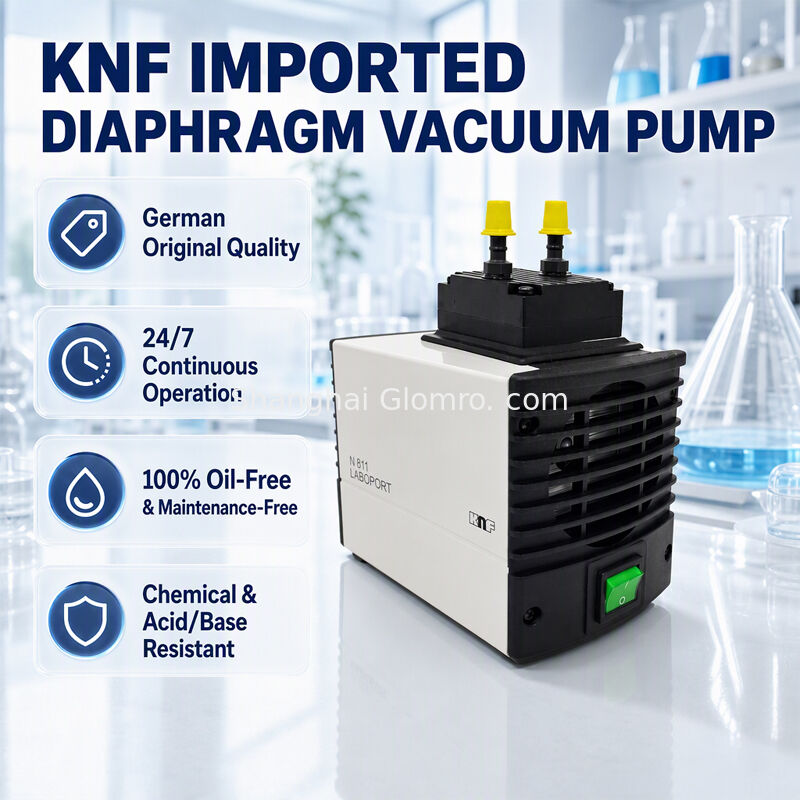

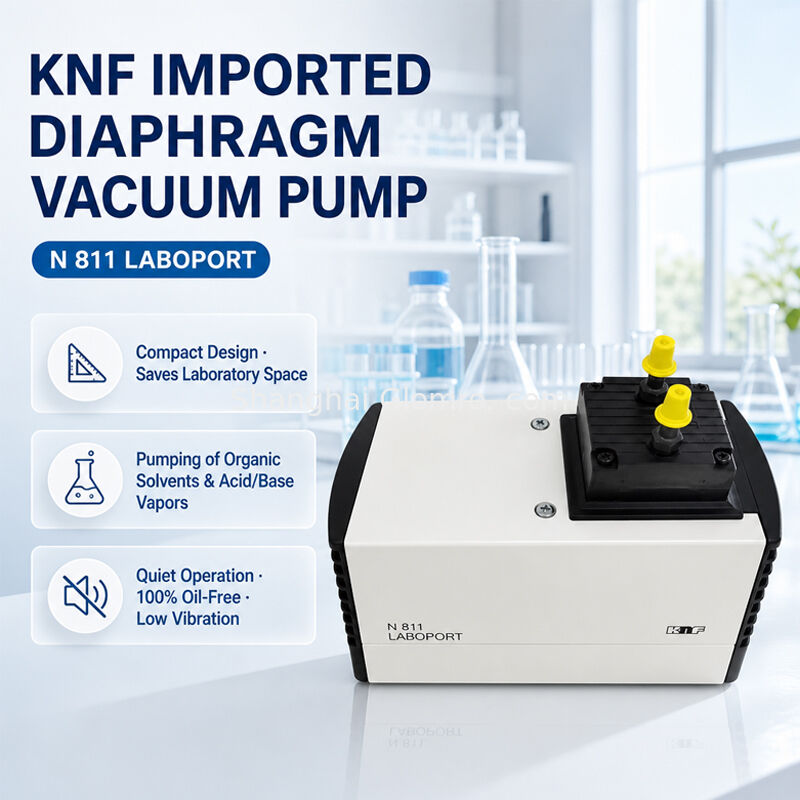

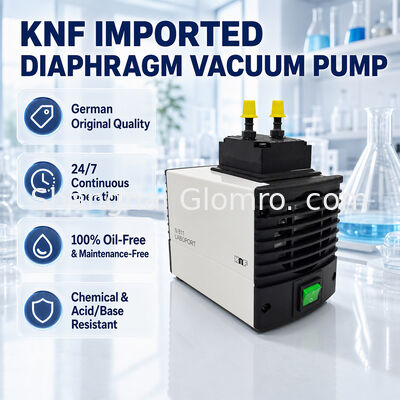

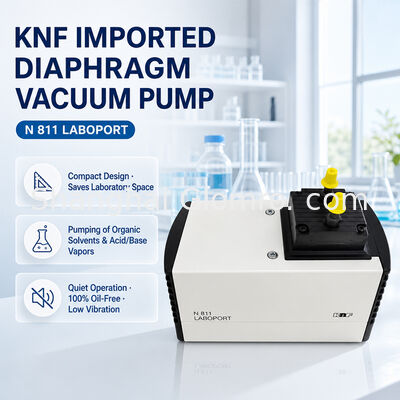

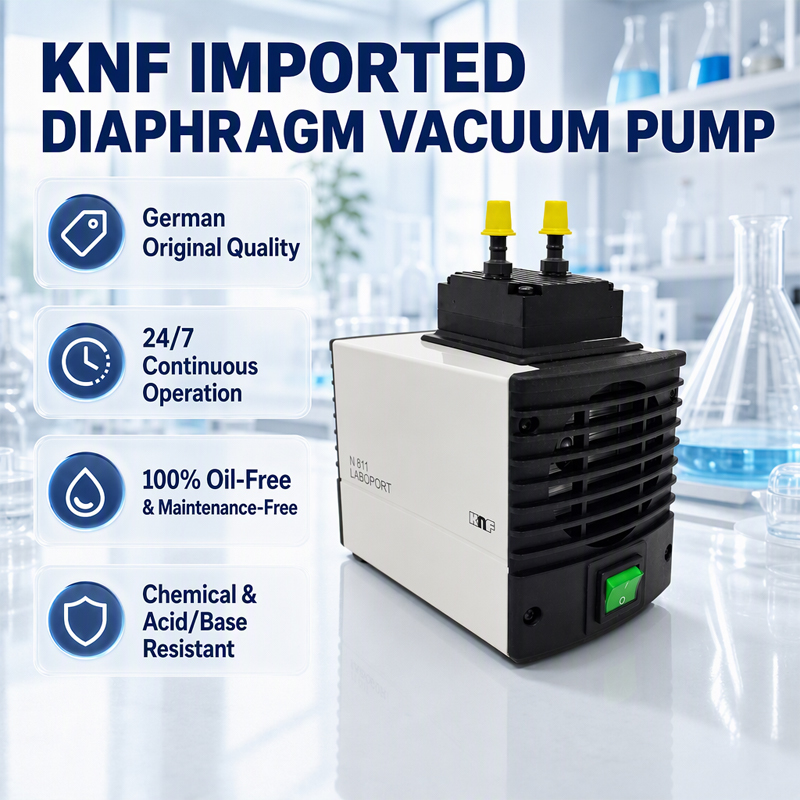

Product pictures:
