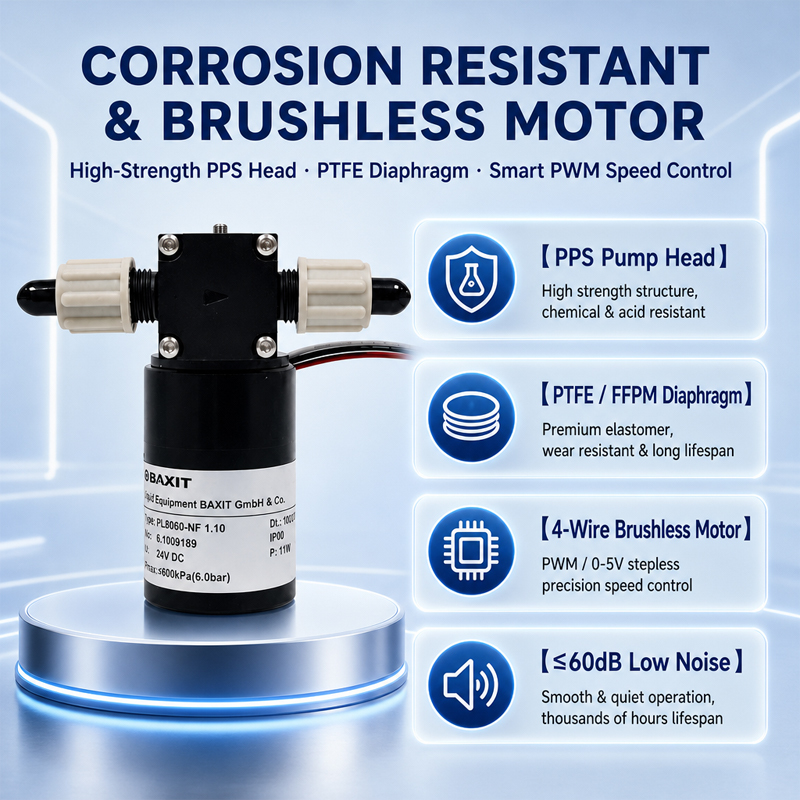

BAXIT PL8060-NF1.10 Micro Liquid Brushless Diaphragm Pump
Product Information:
PL8060-NF1.10 Micro Brushless Diaphragm Liquid Pump is a high-performance micro fluid transfer pump. The diaphragm is made of PTFE (polytetrafluoroethylene), which has excellent corrosion resistance and can transport weak acids, weak bases, and various chemical reagents.
It is equipped with an internal DC brushless motor, supporting PWM signal speed control, and the flow rate is controllable; it is oil-free, and the transported medium will not be contaminated by lubricating oil. It has a self-suction function, with a maximum pressure of up to 6 bar, and is easy to install.

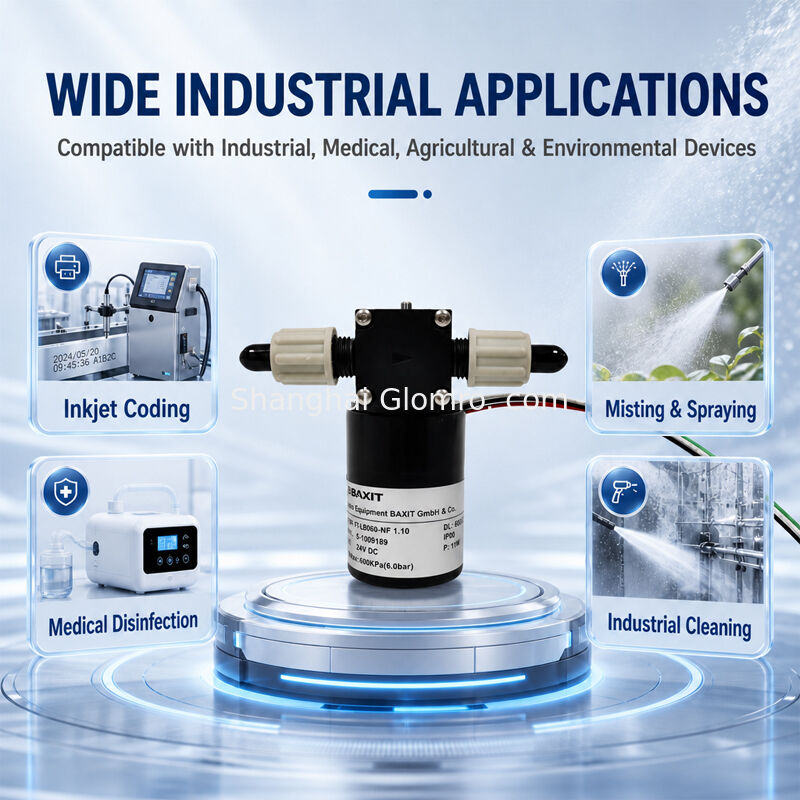

The product is small in size, low in noise, stable in operation, and has a much longer service life than brushed diaphragm pumps. It can be adapted to water quality analyzers, environmental monitoring equipment, laboratory instruments, inkjet printing, atomization disinfection and other scenarios, and supports customized voltage and connector specifications.

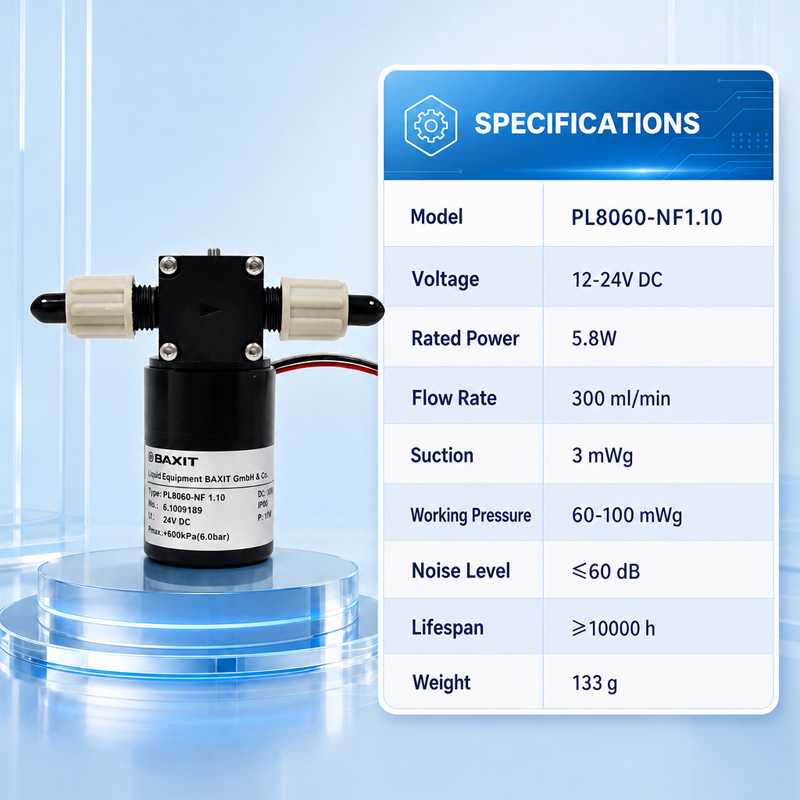

Technical Parameters:
| Name |
Micro Liquid Brushless Diaphragm Pump |
| Model |
PL8060-NF1.10
|
Voltage
|
12-24V
|
Power
|
5.8W |
Flow Rate
|
300 ml/min
|
Suction Lift
|
3mWg
|
Working Pressure
|
60-100 mWg
|
Noise Level
|
≤60dB
|
| Service Life |
≥10,000 h |
| Membrane material |
PTFE |
| The pump head |
PPS |
| Weight |
133g |

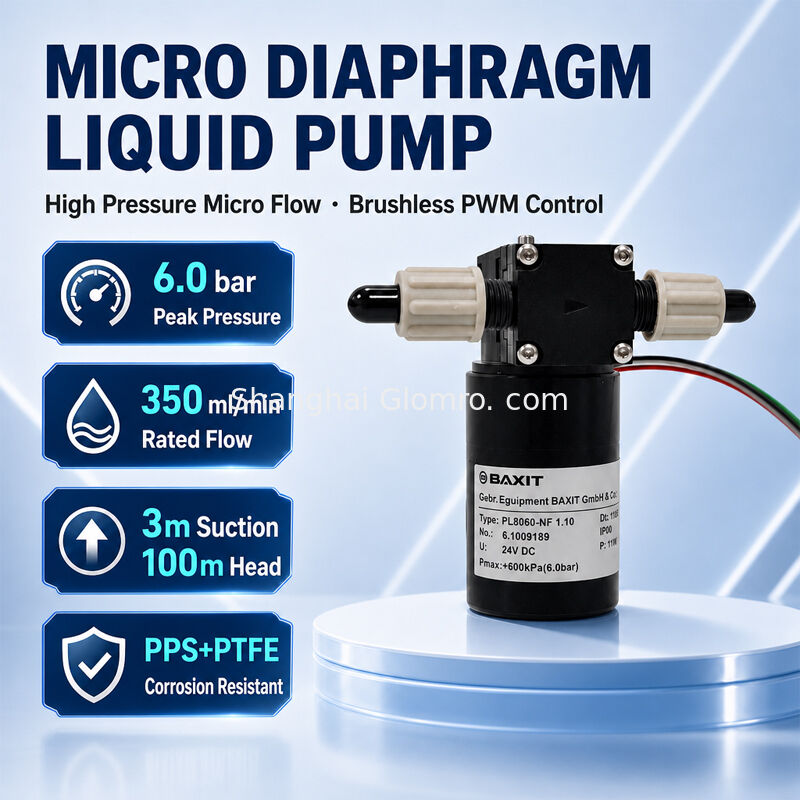

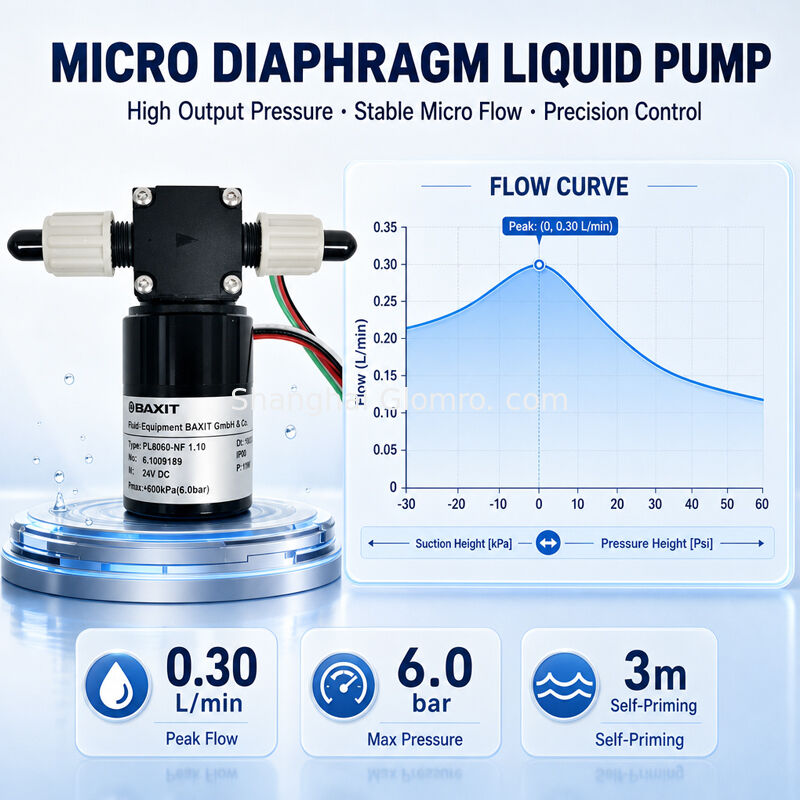

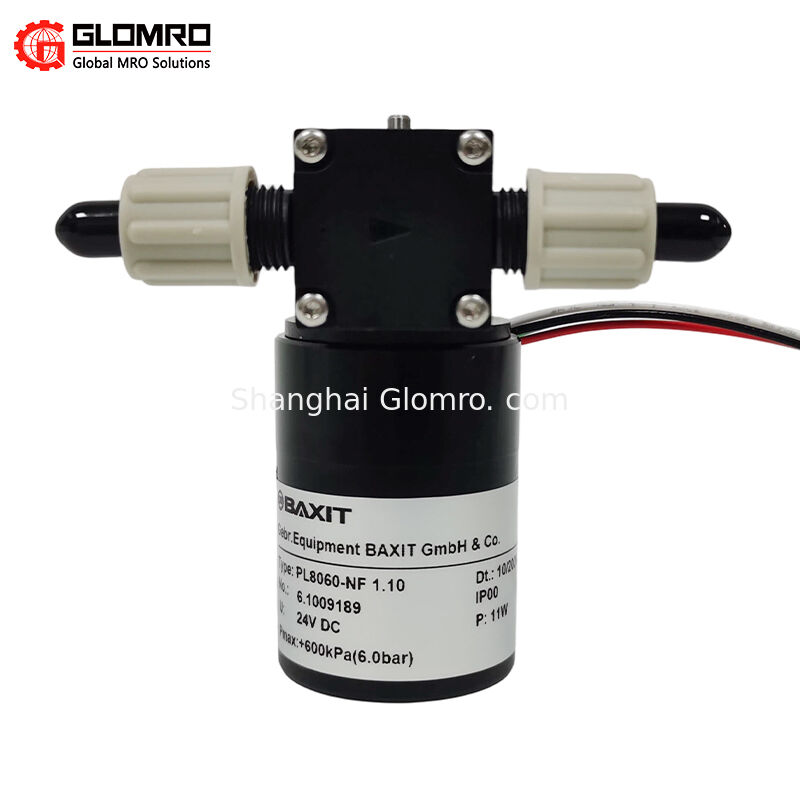

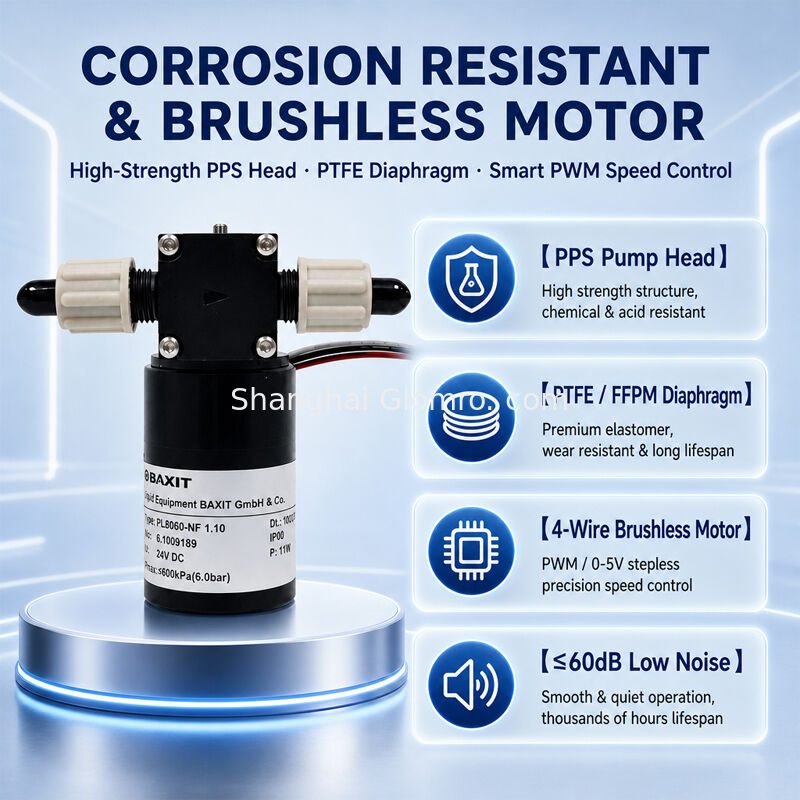

Product pictures:
