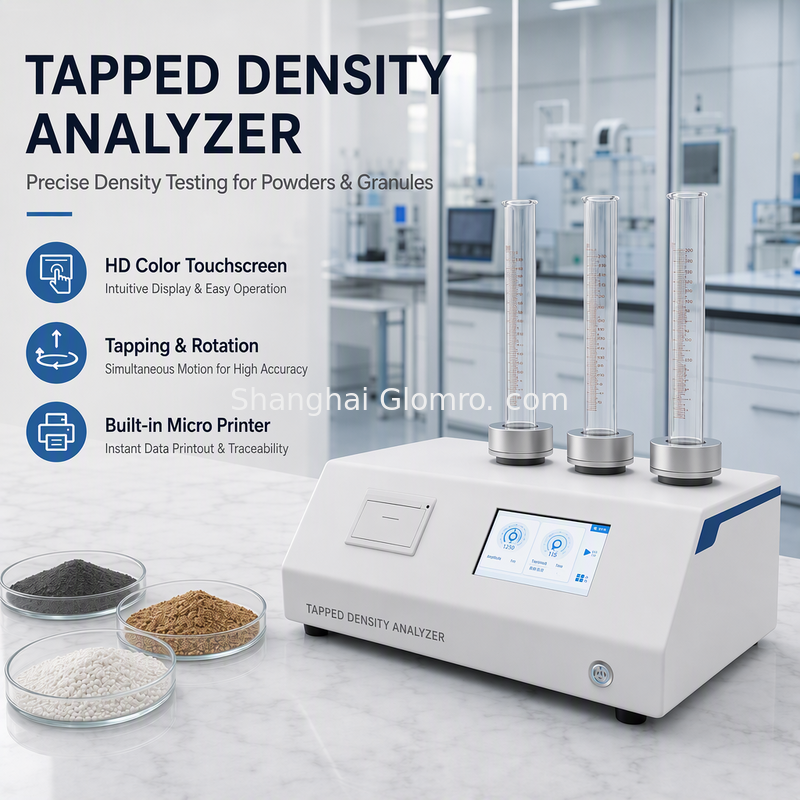

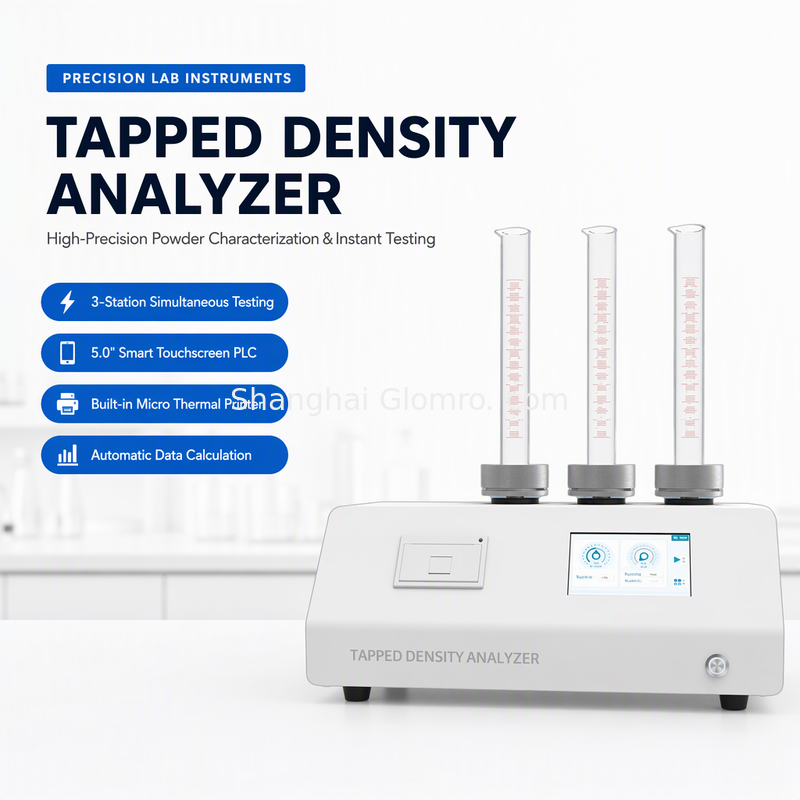

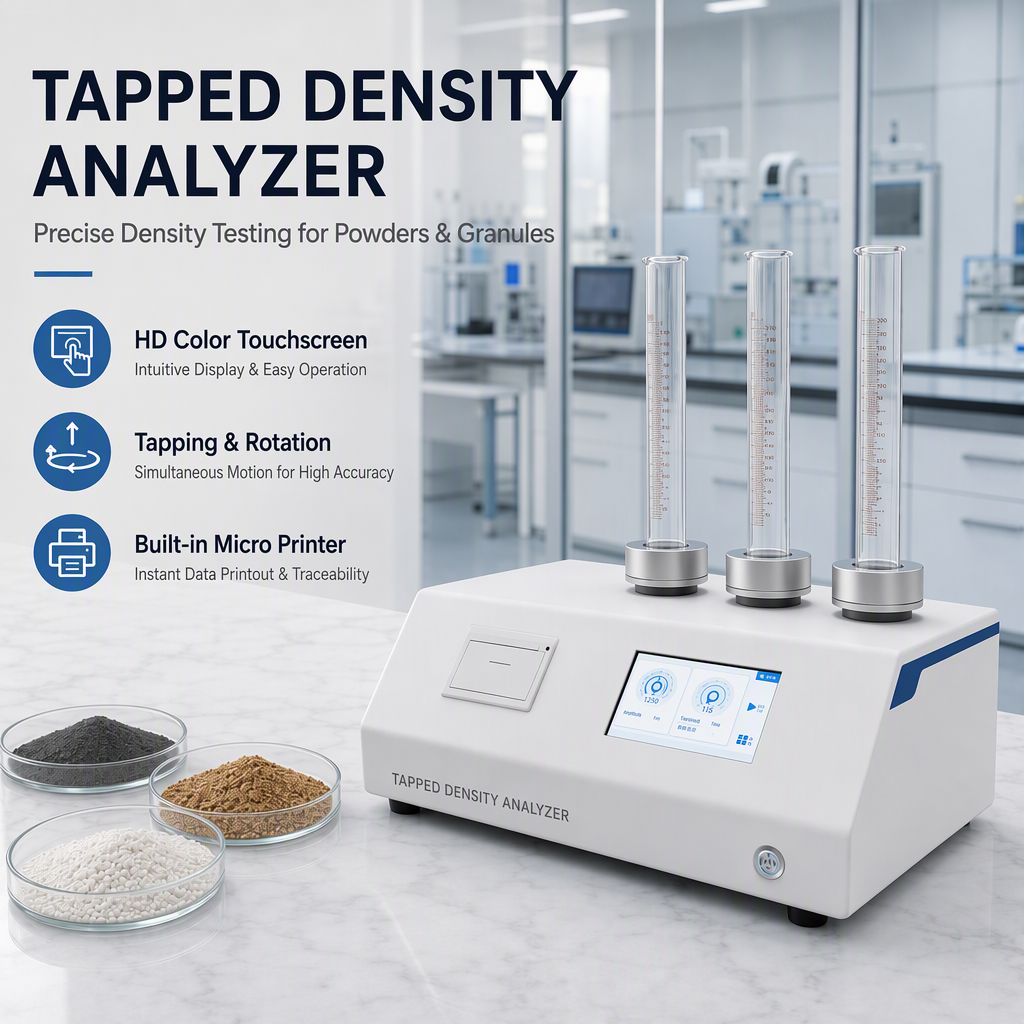

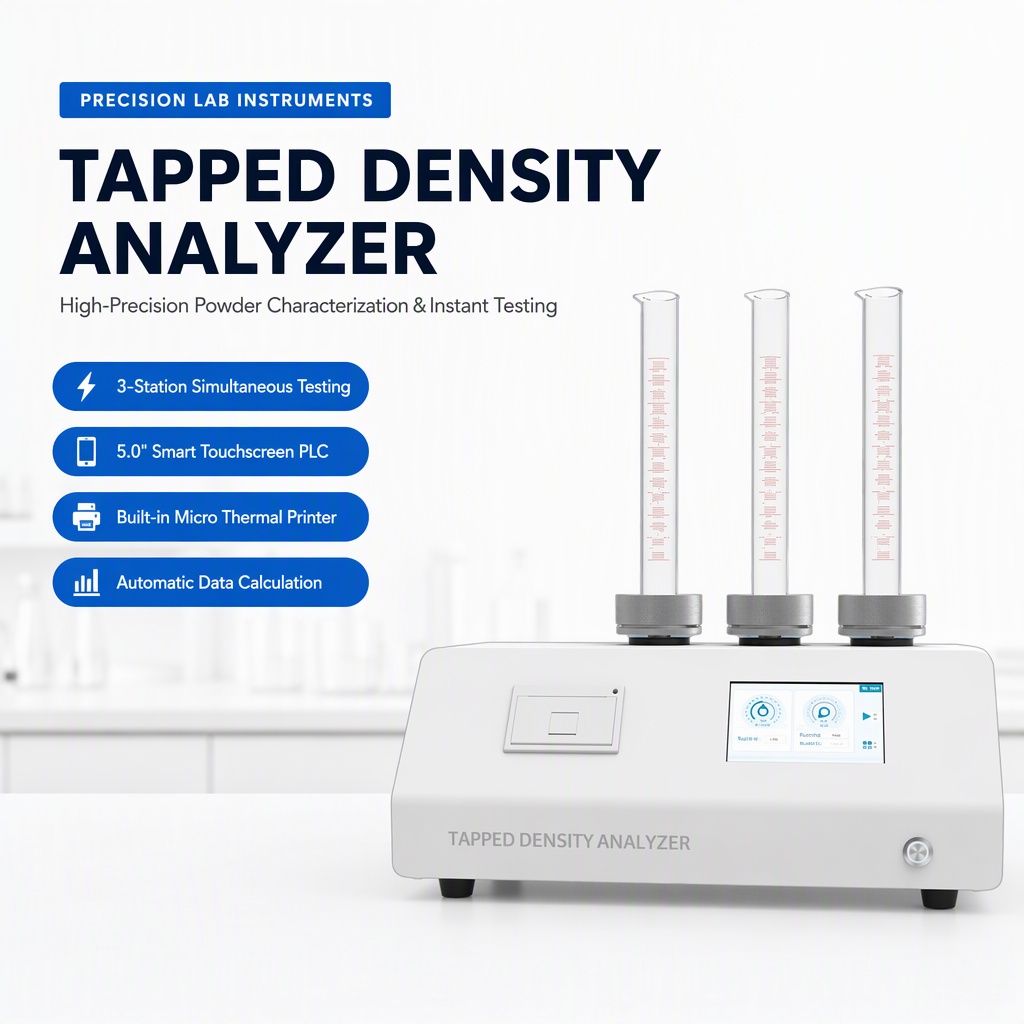

BAXIT Tapped Density Analyzer
Product Overview:
This Tapped Density Analyzer, also known as powder tapped density tester, is a high-precision testing instrument specially designed to accurately measure the tapped density of powder and granular materials. It is one of the core equipment for physical and chemical property testing of powder materials, widely used in industrial production, scientific research & development and quality control.
The instrument simulates the vibration working condition of materials during actual stacking, filling and compaction. Through standardized mechanical tapping, it eliminates air gaps between powder particles and optimizes the packing arrangement of particles. It can accurately obtain the packing density parameters of materials after compaction, and intuitively reflect the packing compactness, flowability and filling performance of powders.
Working Principle:
A quantified amount of powder is placed into a graduated cylinder. While maintaining the original morphology of particles, the vibration device performs uniform rotation together with reciprocating vertical linear motion, bringing the gaps between particles close to a limiting value until the volume of powder no longer decreases. The tapped density of the sample is obtained by dividing the mass of the powder by its volume after tapping.
Product Features:
The Tapped Density Analyzer features a simple and robust overall structure. It mainly consists of a microcomputer control unit, mechanical vibration unit, standard graduated cylinder, counting display module and fixed clamping assembly. It delivers stable operation with low failure rate and is suitable for long-term continuous operation.
Core advantages are as follows:
1.Precise & Controllable: Adjustable tapping cycles, constant vibration frequency and amplitude. It eliminates manual operation errors and ensures excellent repeatability and consistency of test results.
2.User-friendly Operation: Intelligent digital display control interface. Parameter setting, data reset, start and stop control can be completed with one click. No professional operating skills required for quick start-up.
3.Wide Compatibility: Supports single-cylinder, dual-cylinder and triple-cylinder test modes, compatible with standard graduated cylinders of different volumes to meet batch and parallel testing requirements for various samples.
4.Stable & Durable: Low power consumption and good shock resistance of the whole unit. The precision and wear-resistant mechanical structure maintains no obvious deviation during long-term operation, suitable for routine laboratory tests and factory assembly line quality control.
Application Scope:
Tapped density serves as a critical quality control indicator for powder materials, which directly affects product molding, filling, transportation and service performance. This Tapped Density Analyzer is widely used for powder testing across multiple industries:
New Energy Industry: Density testing of lithium battery cathode and anode powders, conductive agents, energy storage materials, etc., to ensure stability in battery electrode coating and filling.
Pharmaceutical Industry: Tapped density measurement of medicinal powder, granular preparations and pharmaceutical excipients, to control medication molding, dispensing accuracy and production stability.
Chemical & Building Materials Industry: Packing performance test for coating powder, pigments, cement, talcum powder, non-metallic mineral powder and other materials.
Metallurgy & Powder Metallurgy: Density detection of various metal powders and alloy powders, providing data support for powder compaction and sintering processes.
Scientific Research & Testing Institutions: Powder material performance research, new product development, process optimization and third-party quality inspection for universities and laboratories.

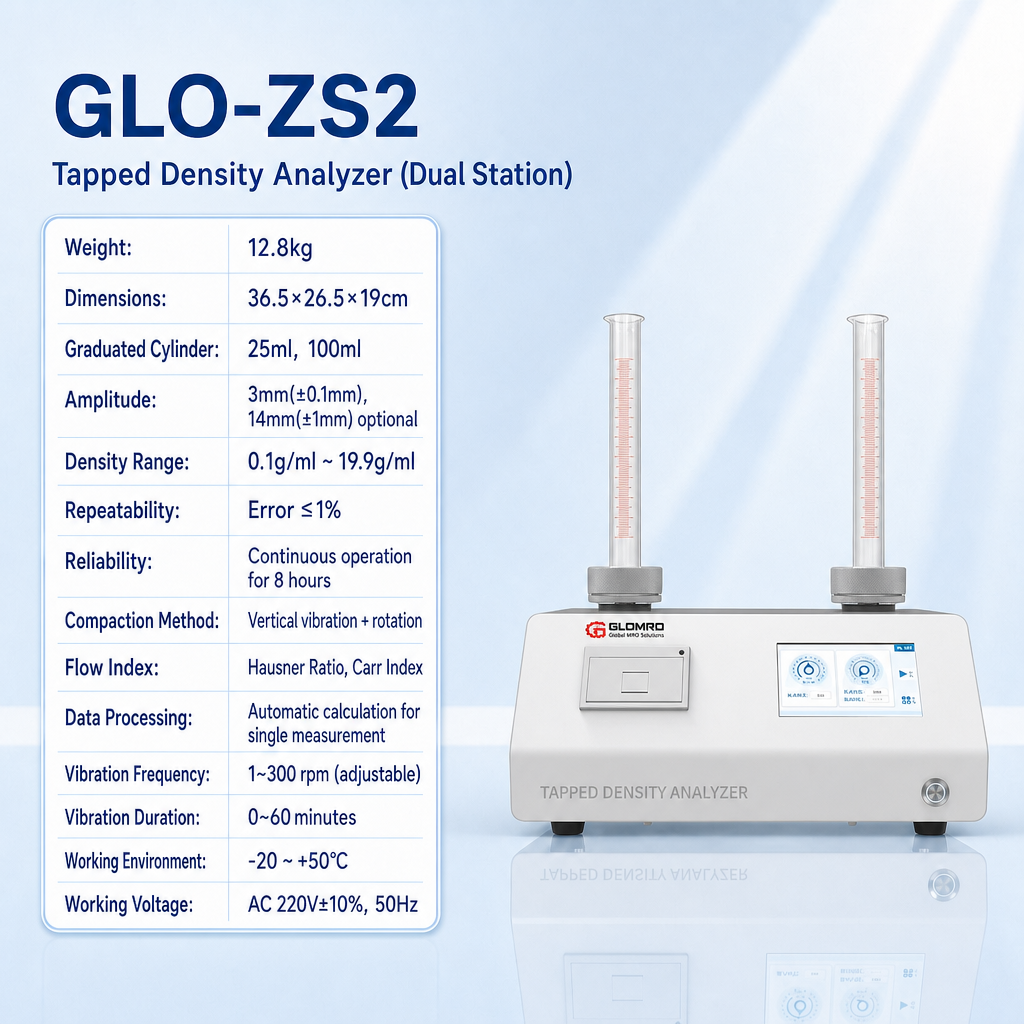

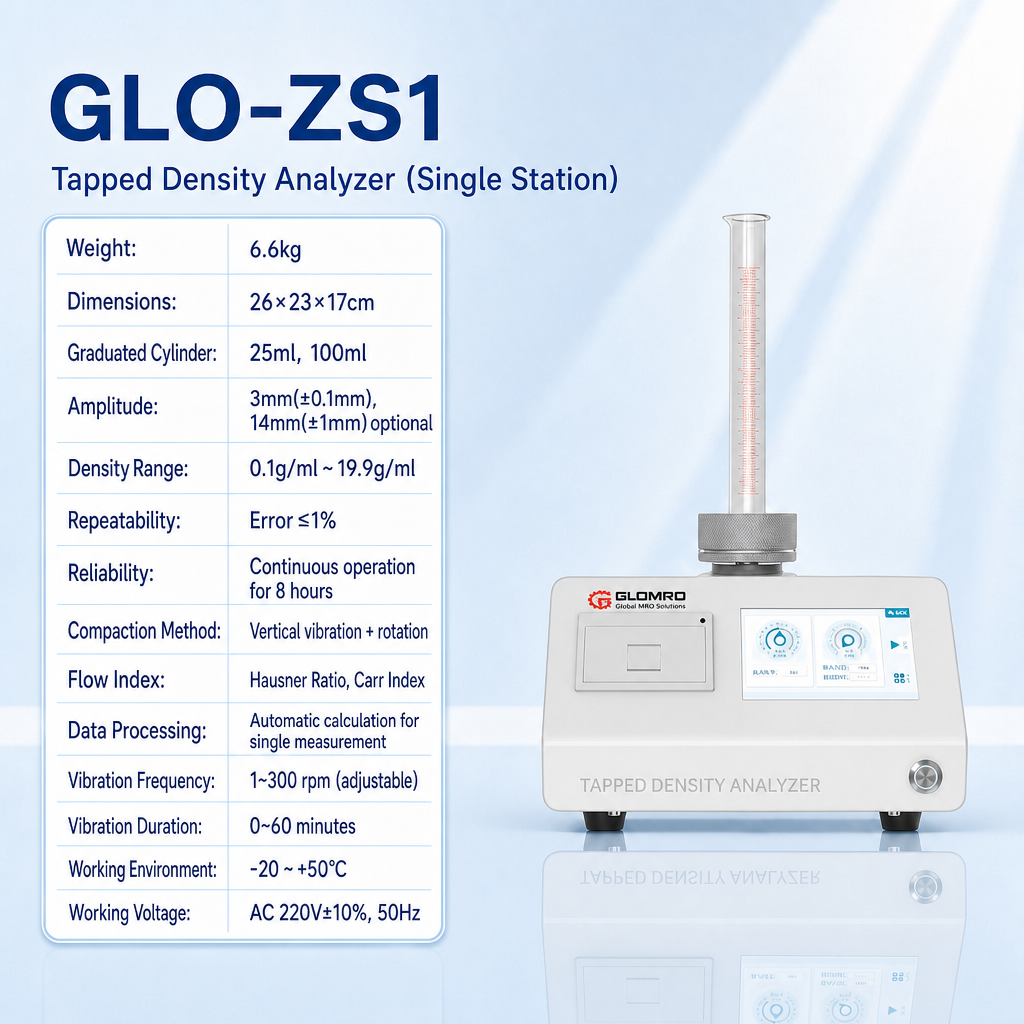

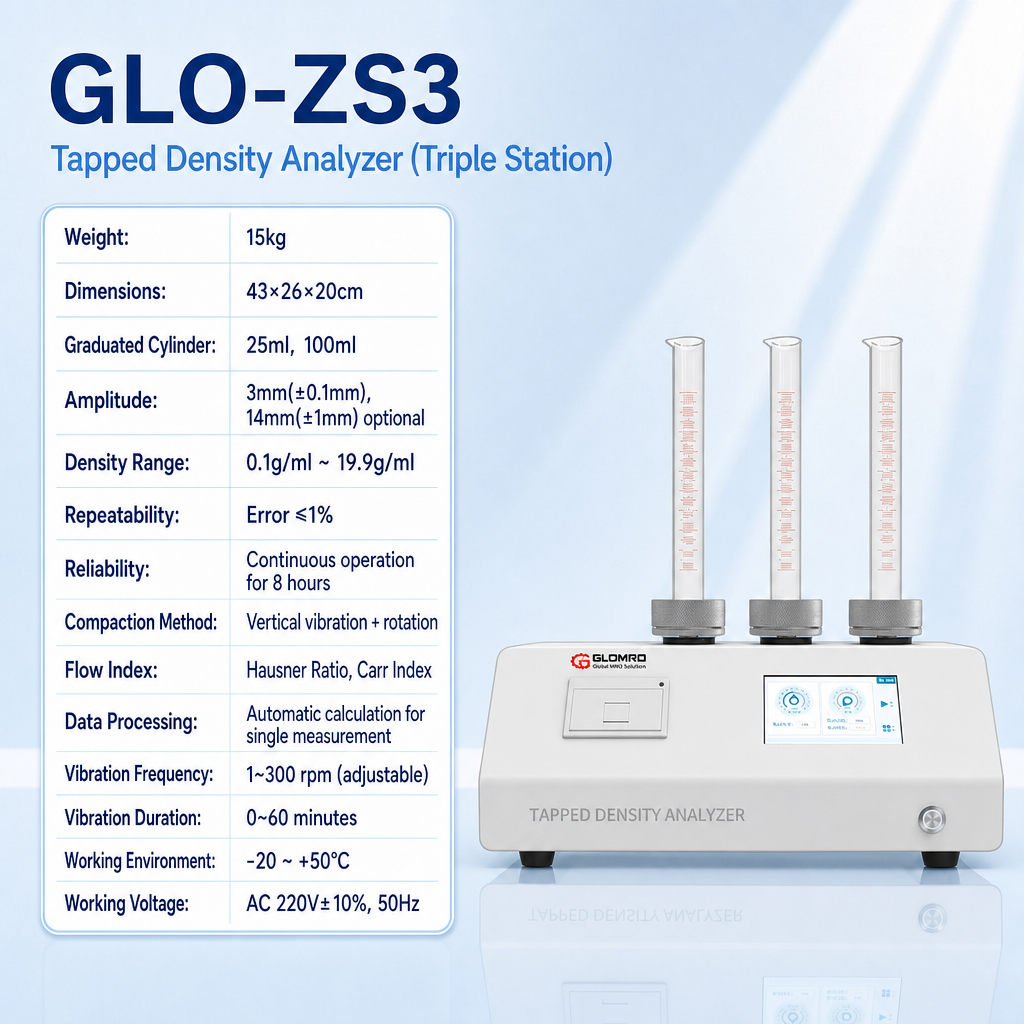

Product parameters:
| Model |
GLO-ZS1 |
GLO-ZS2 |
GLO-ZS3 |
| Test Station |
Single Station |
Dual Station |
Triple Station |
| Weight (kg) |
6.6 |
12.8 |
15 |
| Dimension (cm) |
26×23×17 |
36.5×26.5×19 |
43×26×20 |
| Graduated Cylinder |
25ml, 100ml |
| Amplitude |
3mm(±0.1mm), 14mm(±1mm) optional |
| Density Range |
0.1g/ml ~ 19.9g/ml |
| Repeatability |
Error ≤1% |
| Reliability |
Continuous operation for 8 hours |
| Compaction Method |
Vertical vibration + rotation |
| Flow Index |
Hausner Ratio, Carr Index |
| Data Processing |
Automatic calculation for single measurement |
| Vibration Frequency |
1~300 rpm (adjustable) |
| Vibration Duration |
0~60 minutes |
| Working Environment |
-20 ~ +50°C |
| Working Voltage |
AC 220V±10%, 50Hz |
