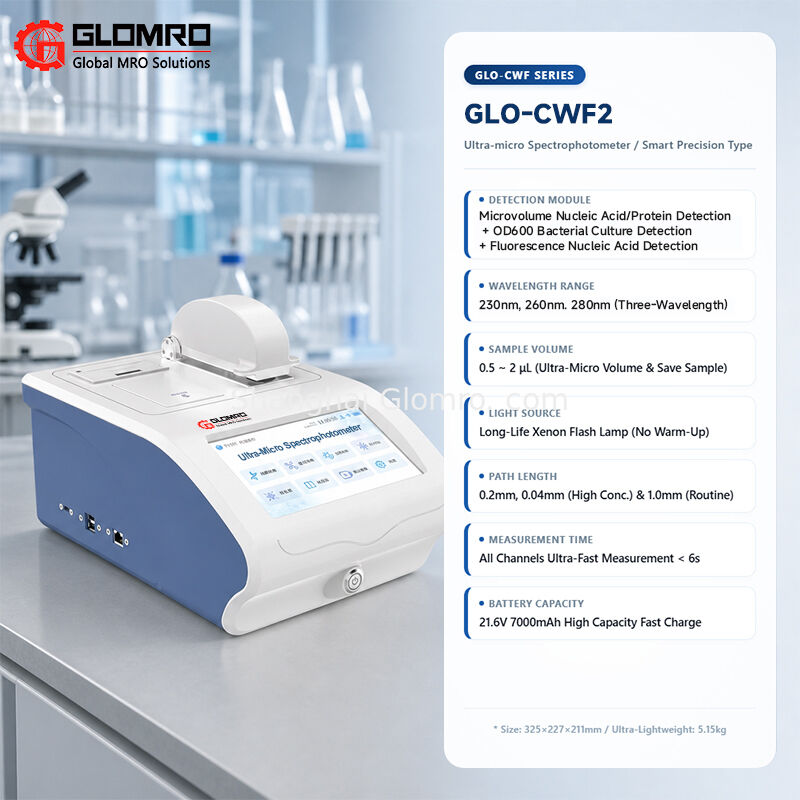

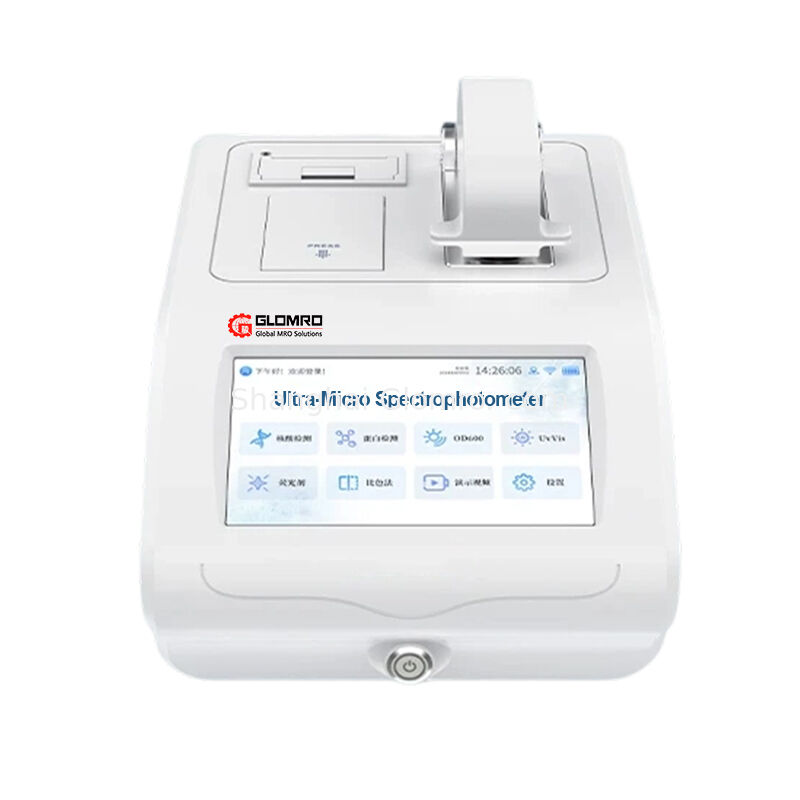

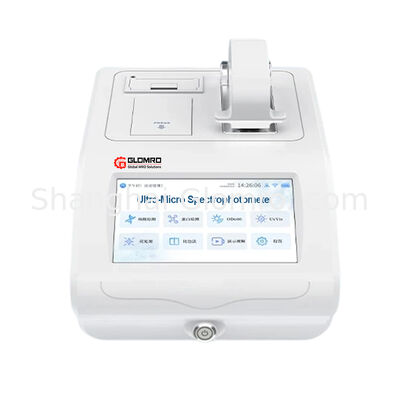

Ultra-micro Spectrophotometer
Produt Introduction:
The GLOMRO Ultra-micro Spectrophotometer is a high-precision biological detection instrument based on UV-Vis spectrophotometry, designed for rapid concentration and purity analysis of nucleic acids (DNA/RNA), proteins, cell lysates, and other biological samples at extremely low sample volumes (0.5~2 μL).
The instrument uses liquid column surface tension technology, requiring no cuvettes or capillaries. Detection is completed with only 0.5~2μL of sample in under 6 seconds. It is widely applicable in life science research, biopharmaceuticals, medical diagnostics, and food safety.
Multiple Detection Modules:
1. Microvolume Nucleic Acid/Protein Detection
l Wavelength range: 230nm, 260nm, 280nm (three-wavelength model); 190~850nm (full-wavelength model)
l Nucleic acid detection range: 2~15,000 ng/μL (dsDNA)
l Protein detection range: 0.05~400 mg/mL (BSA)
2. OD600 Bacterial Culture Detection
l Equipped with OD600 optical path detection system and cuvette detection module
l Directly measures bacterial culture concentration
l Absorbance range: 0~4 Abs; stability/repeatability ≤ 1%
3. Fluorescence Nucleic Acid Quantification
l Fluorescent dyes specifically bind to target substances
l DNA/RNA detection limit as low as 0.5 pg/μL (dsDNA)
lLinearity R² > 0.995; repeatability/stability < 1.5%
| Model |
GLO-CWF1 |
GLO-CWF2 |
GLO-CWF3 |
GLO-CWF4 |
| Detection Module |
Microvolume Nucleic Acid/Protein Detection + OD600 Bacterial Culture Detection |
Microvolume Nucleic Acid/Protein Detection + OD600 Bacterial Culture Detection + Fluorescence Nucleic Acid Detection |
Microvolume Nucleic Acid/Protein Detection + OD600 Bacterial Culture Detection |
Microvolume Nucleic Acid/Protein Detection + OD600 Bacterial Culture Detection + Fluorescence Nucleic Acid Detection |
| Wavelength Range |
230nm,260nm,280nm (Three-Wavelength) |
190~850nm (Full Wavelength) |
| Sample Volume |
0.5~2μL |
| Path Length |
0.2mm, 0.04mm (High-Concentration), 1.0mm (Routine) |
| Light Source |
Xenon Flash Lamp |
| Detector |
UV-Enhanced CMOS Linear Array Sensor |
| Nucleic Acid Detection |
2~15000ng/μL (dsDNA) |
| Protein Detection |
0.05~400mg/mL (BSA) |
| Absorbance Precision |
0.003Abs (0.2mm Path Length) |
| Absorbance Accuracy |
±2% (0.76Abs @ 260nm) |
| Absorbance Range |
0.04~300A (Equiv. 10mm Path Length) |
| Detection Time |
<6s |
| OD600 Absorbance Range |
0~4 Abs |
| OD600 Stability |
≤1% |
| OD600 Repeatability |
≤1% |
| Fluorescence Linearity |
/ |
R²>0.995 |
/ |
R²>0.995 |
| Fluorescence Repeatability |
/ |
<1.5% |
/ |
<1.5% |
| Fluorescence Stability |
/ |
<1.5% |
/ |
<1.5% |
| Data Storage |

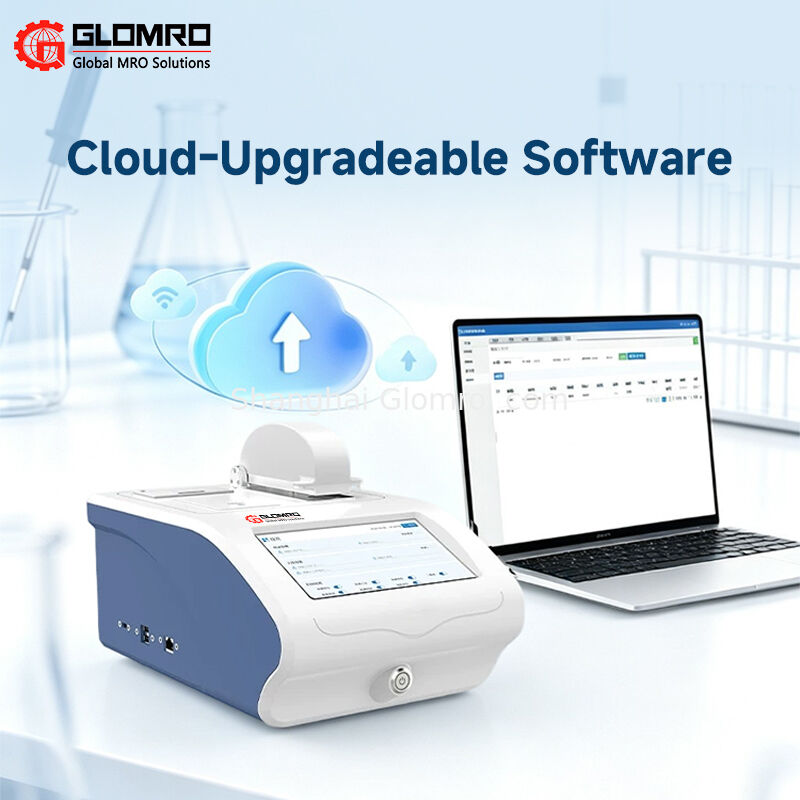

1~100,000 Records; Query, Print, USB Export, Upload to Platform |
| Power Adapter |
45W Fast Charging |
| Battery Capacity |
21.6V 7000mAh |
| Power Consumption |
25W (Standby: 10W) |
| Dimensions & Weight |
325mm*227mm*211mm；5.15kg |
