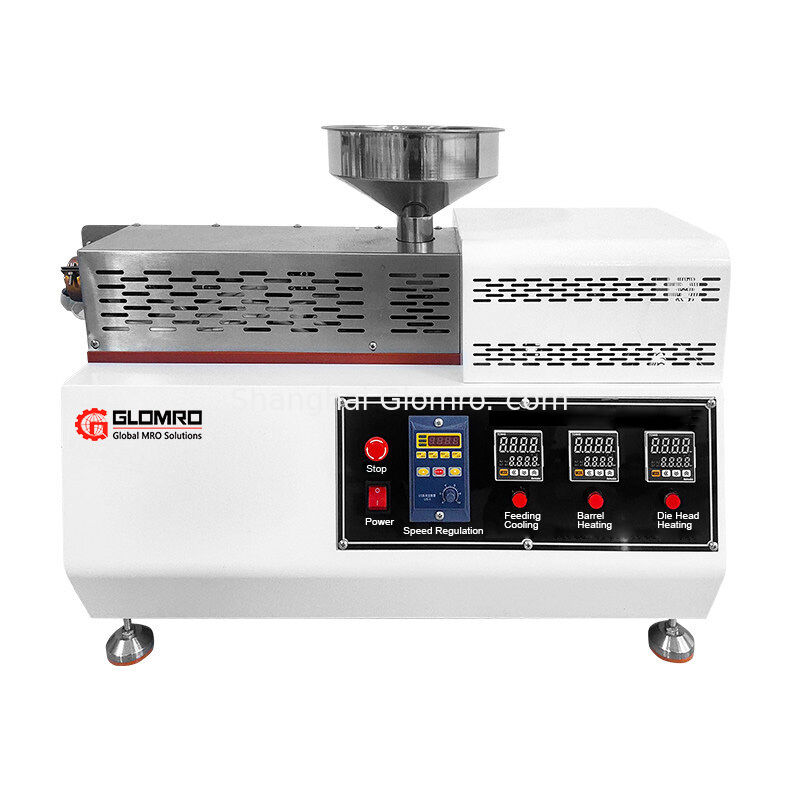

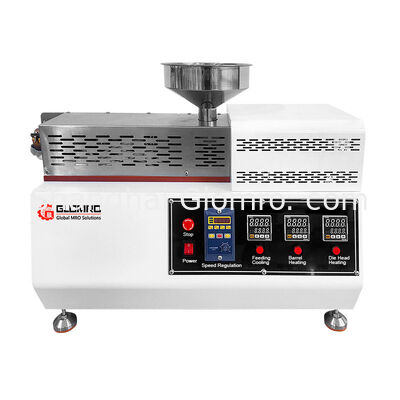

Desktop Plastic Extruder
Product Overview:
This series of bench-top laboratory extruders includes two main types: water-cooled single-screw extruders and double-screw extruders. They are compact precision extrusion testing equipment designed for university laboratories, new material R&D institutions, plastic modification manufacturers and chemical research institutes.

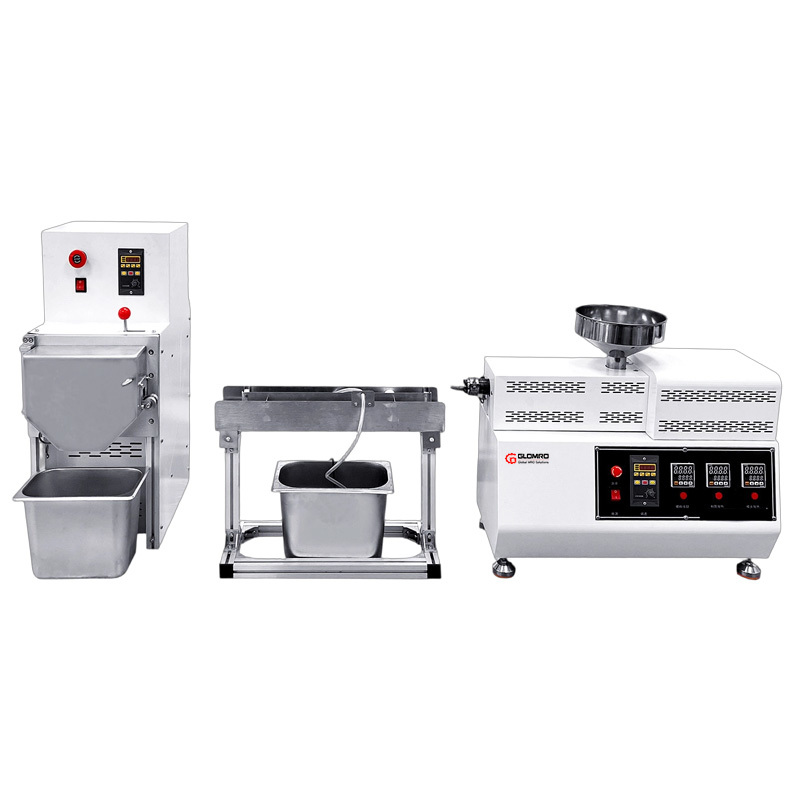

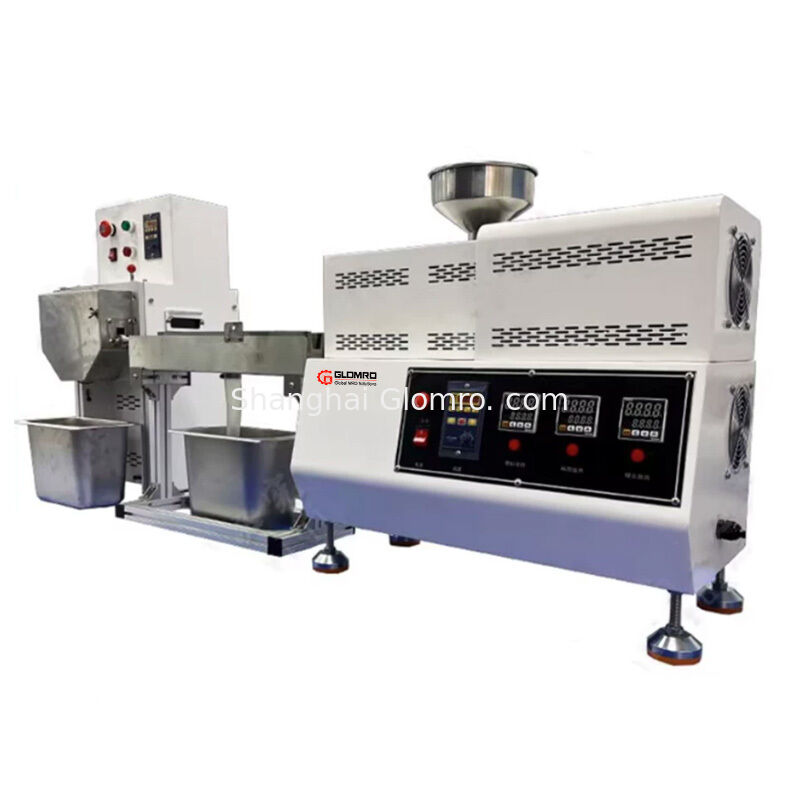

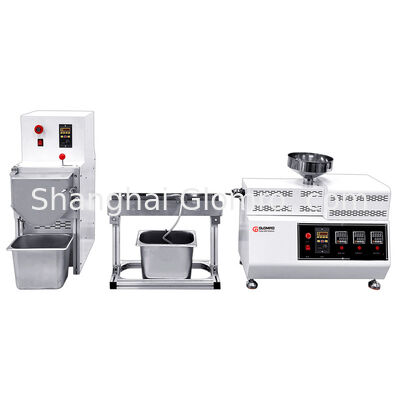

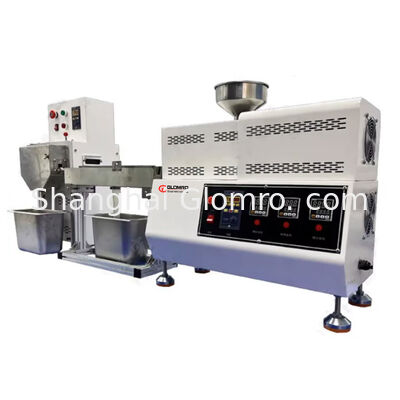

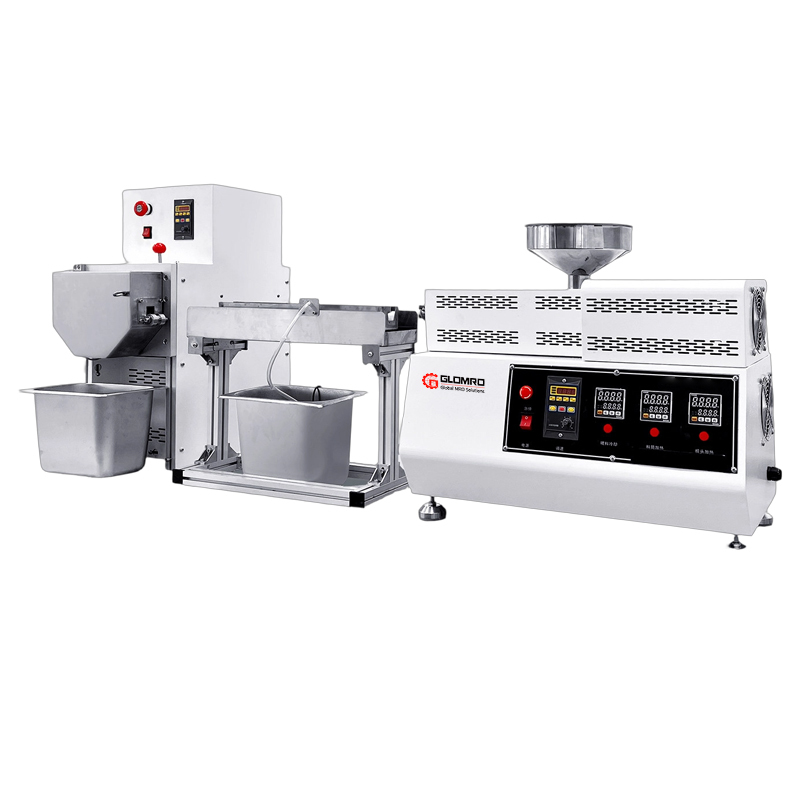

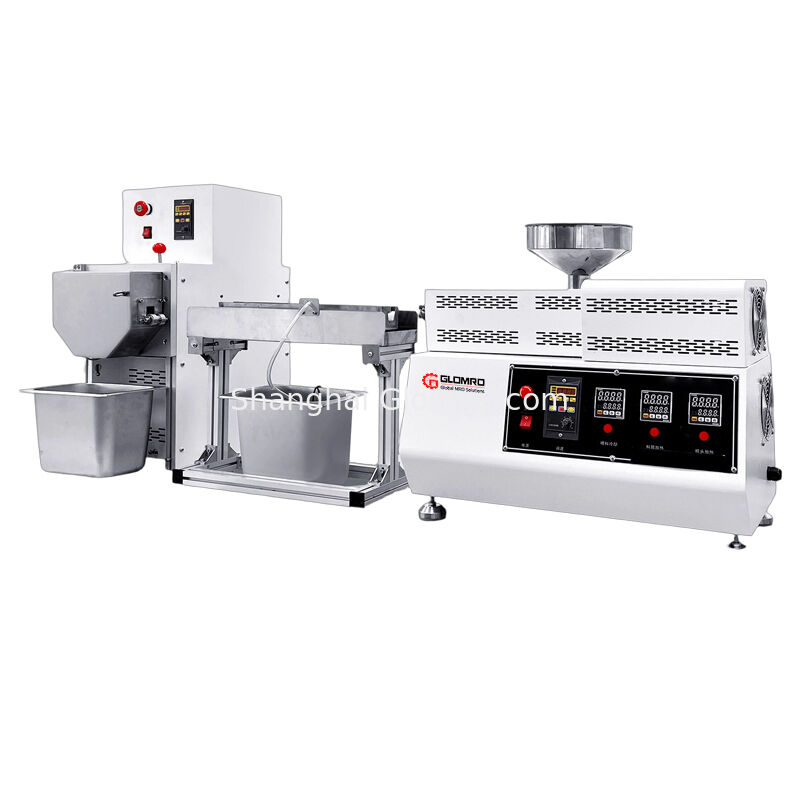

Featuring small footprint, the machines support melt plasticization, formula adjustment and process parameter testing of various polymer materials. By connecting auxiliary units including cooling water tanks, haul-off units and pelletizers, users can build mini production lines for pelletizing, film, sheet and pipe trial production. The equipment delivers convenient lab operation while reproducing industrial extrusion principles accurately, serving as standard testing apparatus for polymer material research & development.
Product parameters:
Double-Screw Desktop Extruder Set Single-Screw Desktop Extruder Set
| Classification |
Double-Screw Desktop Extruder Set |
Single-Screw Desktop Extruder Set |

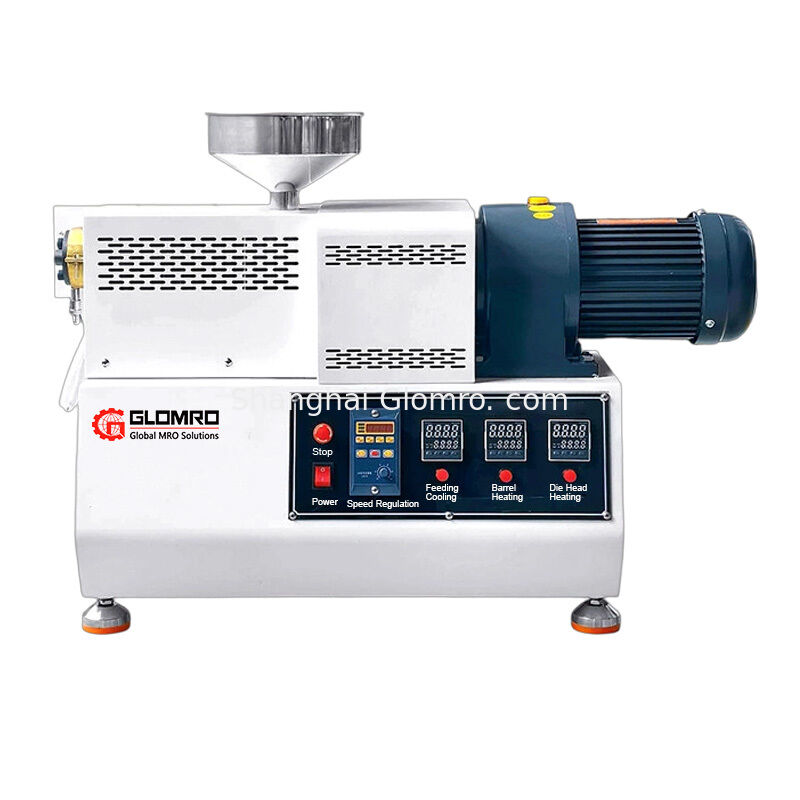

| Extruder Section |
| Model |
GLO-16-2 |
GLO-25 |
GLO-16 |
| Screw Diameter |
16mm*2 |
25mm |
16mm |
| Design Output |
0.1-3kg/h |
0.1-3kg/h |
0.1-3kg/h |
| Extrusion Center Height |
300mm |
300mm |
300mm |
| Extrusion Direction |
Feed from right, discharge to left |
Feed from right, discharge to left |
Feed from right, discharge to left |
| L/D Ratio |
16:1 |
21:1 |
21:1 |
| Heating Temperature |
Ambient Temp ~ 350°C |
Ambient Temp ~ 350°C |
Ambient Temp ~ 350°C |
| Barrel Material |
38CrMoLa, Nitrided Treatment |
38CrMoLa, Nitrided Treatment |
38CrMoLa, Nitrided Treatment |
| Temperature Zones |
3 |
3 |
3 |
| Constant Temp Cooling Device |
3 sets |
3 sets |
3 sets |
| Motor Power |
750W |
400W |
400W |
| Voltage |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Overall Dimension |
900mm300mm650mm |
650mm300mm500mm |
650mm300mm500mm |
| Weight |
50kg |
45kg |
45kg |
| Circulating Cooling Unit Section |
| Material |
304 Stainless Steel + Aluminum Alloy |
304 Stainless Steel + Aluminum Alloy |
304 Stainless Steel + Aluminum Alloy |
| Length |
300mm |
300mm |
300mm |
| Flow Rate |
60L/H |
60L/H |
60L/H |
| Water Pump Power |
15W |
15W |
15W |
| Water Pipe Material |
Plastic |
Plastic |
Plastic |

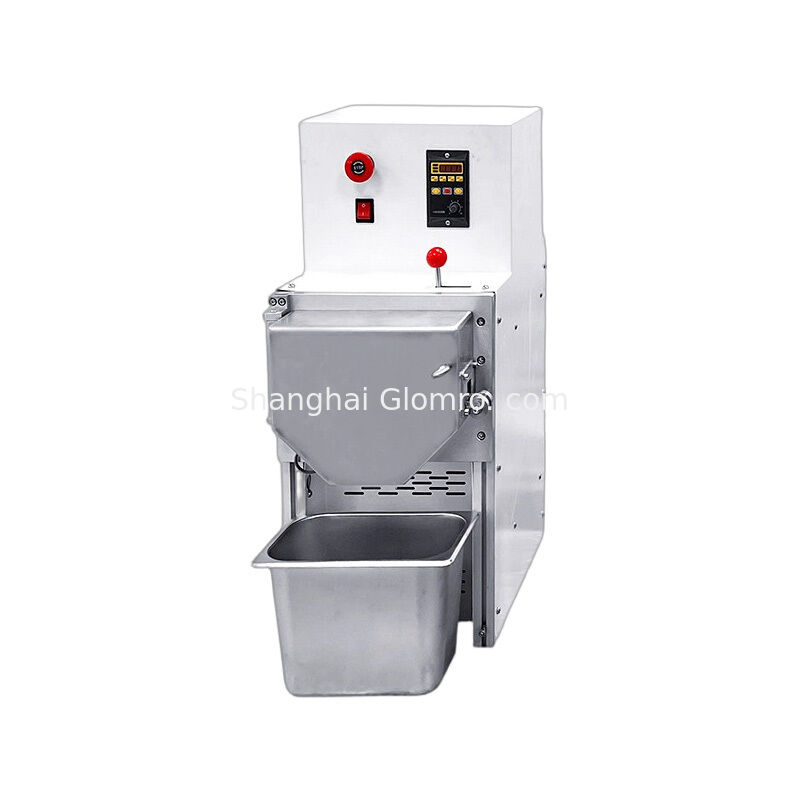

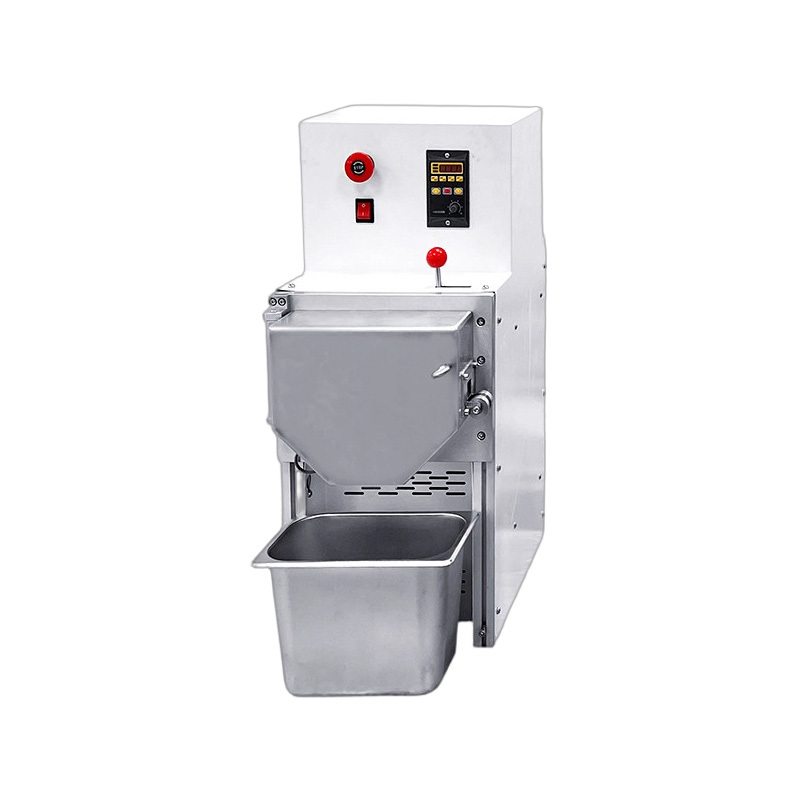

| Pelletizing Unit Section |
| Pelletizing Speed |
0.1-3kg/h |
0.1-3kg/h |
0.1-3kg/h |
| Motor Power |
750W |
750W |
750W |
| Cutter Wheel Material |
Alloy Steel Blades |
Alloy Steel Blades |
Alloy Steel Blades |
| Control Mode |
Button Control |
Button Control |
Button Control |
| Traction Roller |
1 set |
1 set |
1 set |
| Overall Dimension |
350450700mm |
350450700mm |
350450700mm |
| Power Supply |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Weight |
45kg |
45kg |
45kg |
