Scannable visible light photometer
Main features of the scanning visible spectrophotometer (double beam):

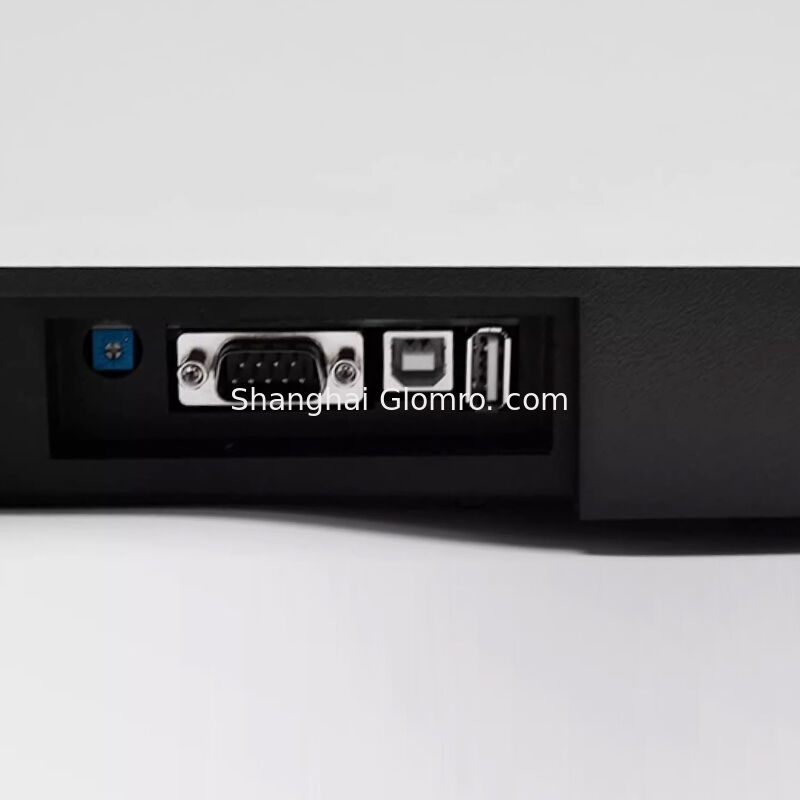

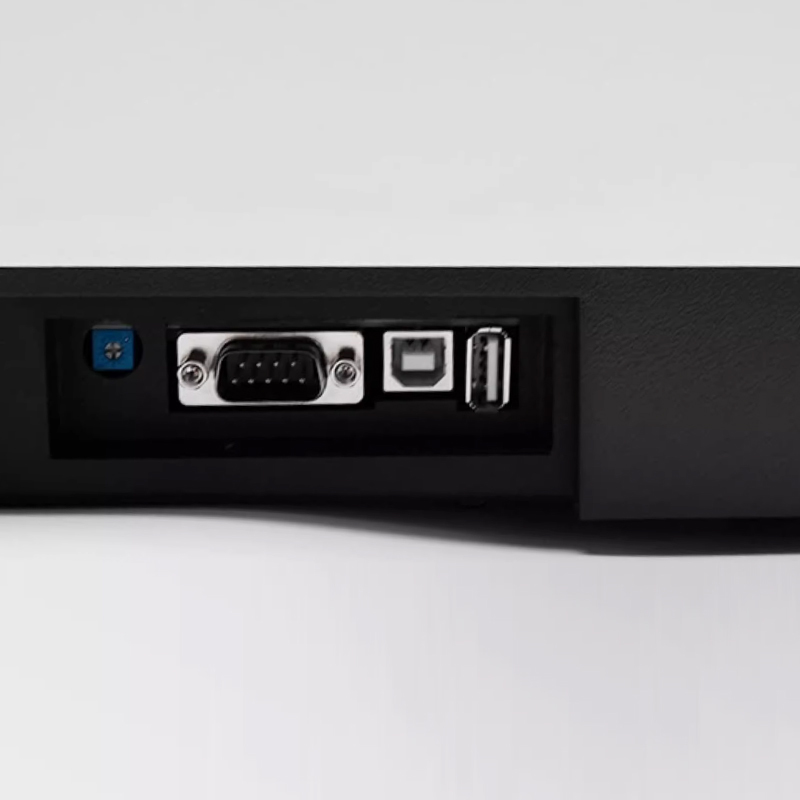

1. Equipped with the latest ARM system, it features both Chinese and English operating systems and can store and transfer data via USB interface.
2. It is highly functional, with the main unit capable of independently performing photometric measurement, quantitative weighing, spectral scanning, kinetic analysis, DNA/protein testing, multi-wavelength testing, and data printing.

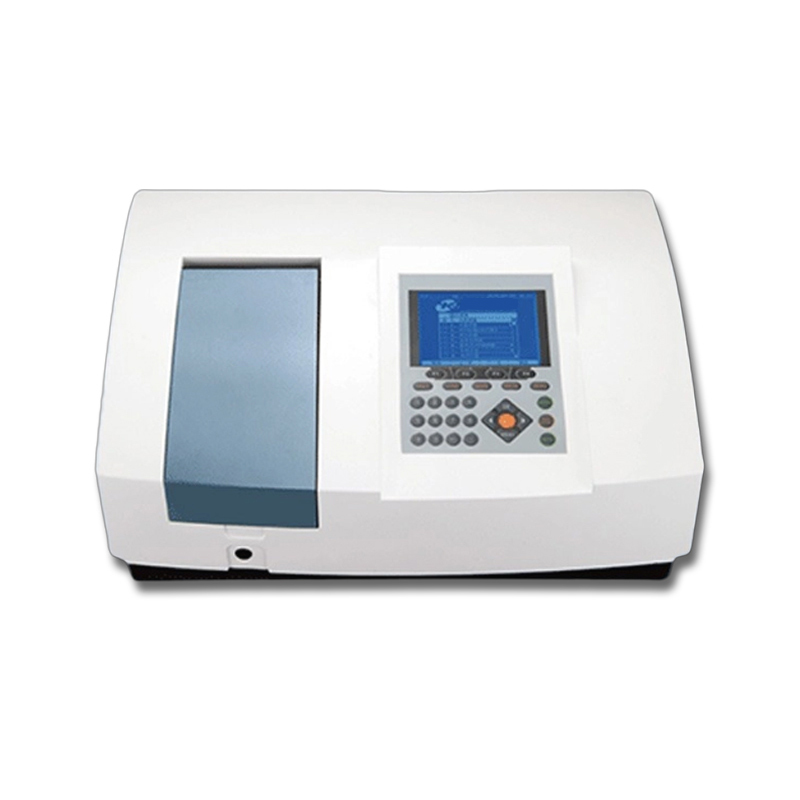

3. The instrument is equipped with a 320x240 dot-matrix high-brightness 6-inch LCD display, which directly shows the scanning spectrum. The screen interface is simple.
4. It features a unique optical system, with a high-performance 1200 lines/mm grating and imported detector, ensuring excellent performance indicators.
5. The deuterium lamp and tungsten lamp are designed as plug-in types, eliminating the need for optical adjustment after lamp replacement.
6. It features a 24-bit high-speed and high-precision A/D converter, ensuring high instrument accuracy and fast response speed.
7. The spacious sample chamber can accommodate various-sized cuvettes ranging from 5 to 100mm.
8. It can be directly connected to a printer for printing spectra and experimental data.
9. The instrument adopts a suspended optical system design and a long optical path design, significantly enhancing its stability, reliability, and optical resolution.
10. It comes with a built-in bilingual (Chinese and English) operating system for your convenience.

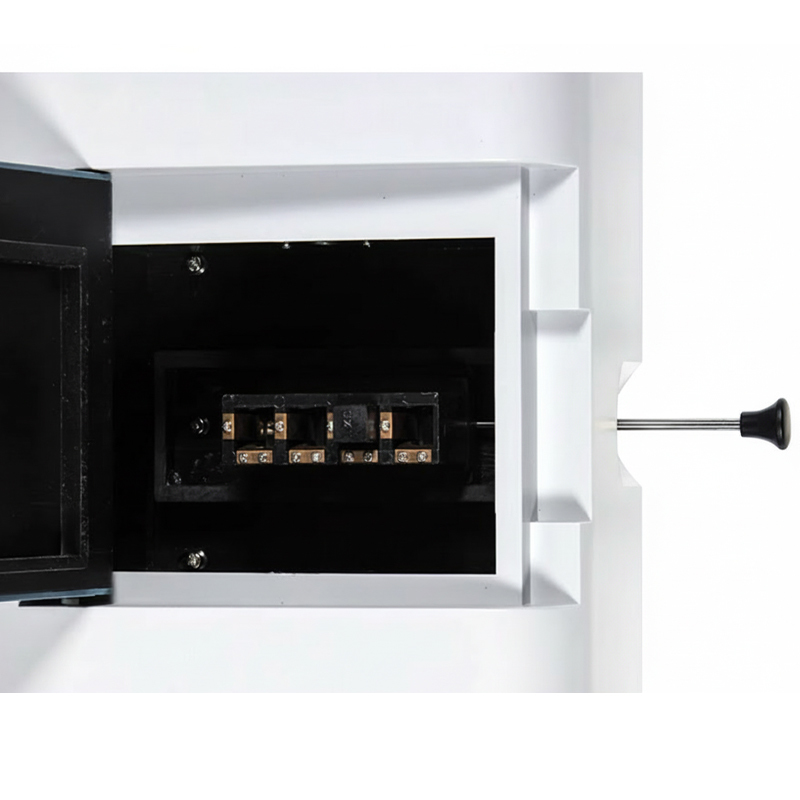

The instrument is optionally equipped with a patented circular rotating eight-position sample holder, which is reliable and ensures the light spot is centered (compared to the double-row eight-position holder), thus providing high measurement accuracy.
| Model |
BXT-UV765/1800 |
BXT-UV1810 |
| Optical system |
Single beam |
| Spectral bandwidth |
2nm |
1nm |
| Wavelength range |
190-1100nm |
| Wavelength accuracy |
±0.3nm |
| Wavelength repeatability |
0.1nm |
| Wavelength resolution |
0.1nm |
| Data shows |
320x240 graphic liquid crystal display |
| Scattered light |
≤0.05% |
| Luminosity range |
0-200%T,-0.3-3.0A,0-9999C(0-9999F) |
| Luminosity accuracy |
±0.3%T |
| Data output |
RS-232C serial port, USB interface port |
| Overall dimensions |
515*390*240 |
600*430*240 |
| Processor |
ARM7 has a main frequency of 88.5 MHz, 8 megabytes of SDRAM, and 4 megabytes of Flash. |
| Weight |
12kg |
