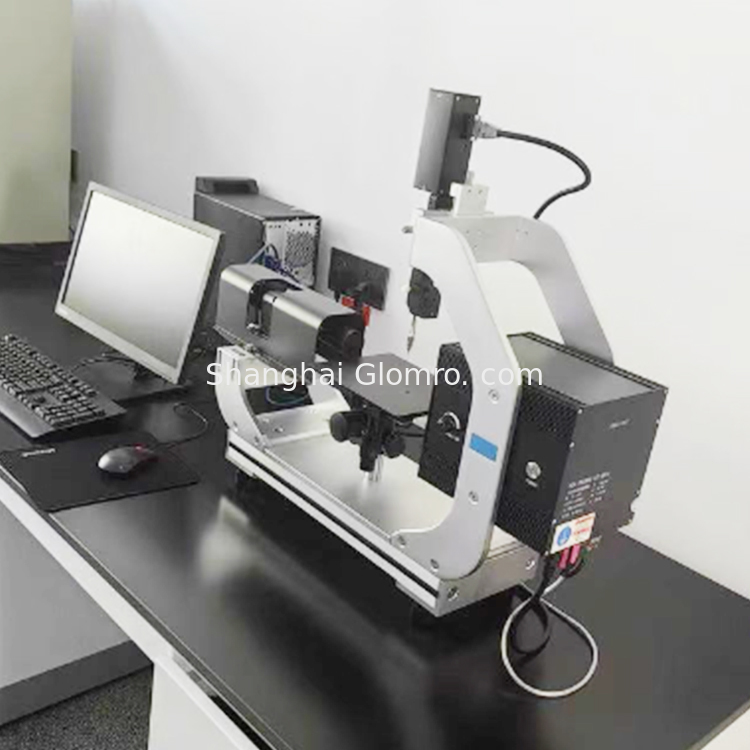

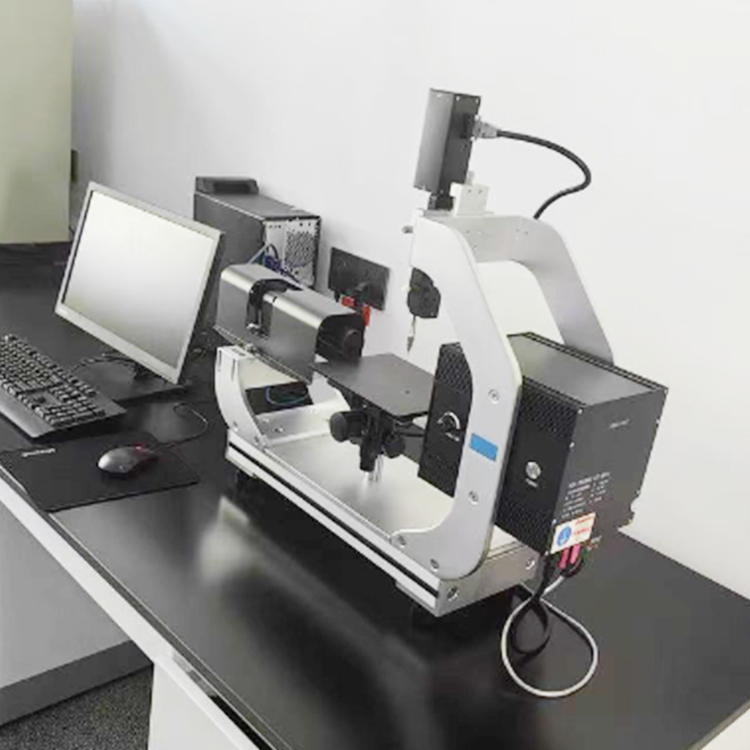

Contact Angle Goniometer / Contact Angle Meter for Liquid on a Solid
Product Specifications
| Model |
BXT-350H |
| Type |
Automatic inclination type |
| Dimensions (L × W × H) |
840 × 408 × 725mm |
| Weight |
30.5kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Product Description
The contact angle refers to the tangent line of the gas-liquid interface at the intersection point of the gas, liquid, and solid phases. This tangent line forms an angle θ between the liquid side and the solid-liquid boundary. Contact angle measurement is currently the main method for detecting surface properties.
The fully automatic contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of the sample surface properties. The device has a high degree of automation and can be combined with an automated production line to achieve online fitting.
Applications
The contact angle measuring instrument is widely used in various industries including:
- Mobile phone manufacturing
- Glass manufacturing
- Surface treatment
- Material research
- Chemical and chemical engineering
- Semiconductor manufacturing
- Coatings and inks
- Electronic circuits
- Textile fibers
- Medical and biological research
Technical Specifications
Comparison of Models
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
BXT-350H |
BXT-500H |
BXT-PUOU180 |
BXT-30H |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
Automatic inclination type |
Fully automatic type |
Automatic drip solution |
Portable |
| Dimensions (L × W × H) |
420×150×398mm |
560×196×525mm |
800×190×640mm |
840×408×725mm |
690×380×680mm |
610×200×510mm |
135×72×120mm |
| Weight |
6kg |
11kg |
21kg |
30.5kg |
45kg |
12kg |
1.18kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
| Contact angle measurement range |
0-180° downward viewing angle: 40° |
0-180° |
0-180° |
| Contact angle measurement accuracy |
±0.1° |
