Name: BXT-100H Standard Manual Contact Angle Measuring Instrument
Brand: Shanghai Glomro Industrial Co., Ltd.
SKU: BXT-100H
Price: 11,356.00 USD
Availability: InStock

Detail Information

Model:	BXT-100H	Type:	Standard Manual Type
Dimensions (L * W * H):	560196525mm	Weight:	11kg
Power:	220V / 60HZ	Lifespan:	≥25000h
Highlight:	manual contact angle measuring instrument , BXT-100H contact angle analyzer , laboratory contact angle measurement device

Product Description

Automatic Contact Angle Measuring Instrument BXT-100H

Product Overview

The contact angle measuring instrument is a specialized device that uses shape image analysis to measure surface properties including contact angle, wetting performance, surface tension, surface energy, and more. With high automation capabilities, it can integrate with production lines for online measurements.

Key Specifications

Model	BXT-100H
Type	Standard manual type
Dimensions (L×W×H)	560×196×525mm
Weight	11kg
Power	220V / 60HZ
Lifespan	≥25000h

Applications

This instrument is widely used across multiple industries including mobile phone manufacturing, glass production, surface treatment, material research, chemical engineering, semiconductor manufacturing, coatings, electronic circuits, textiles, and medical research.

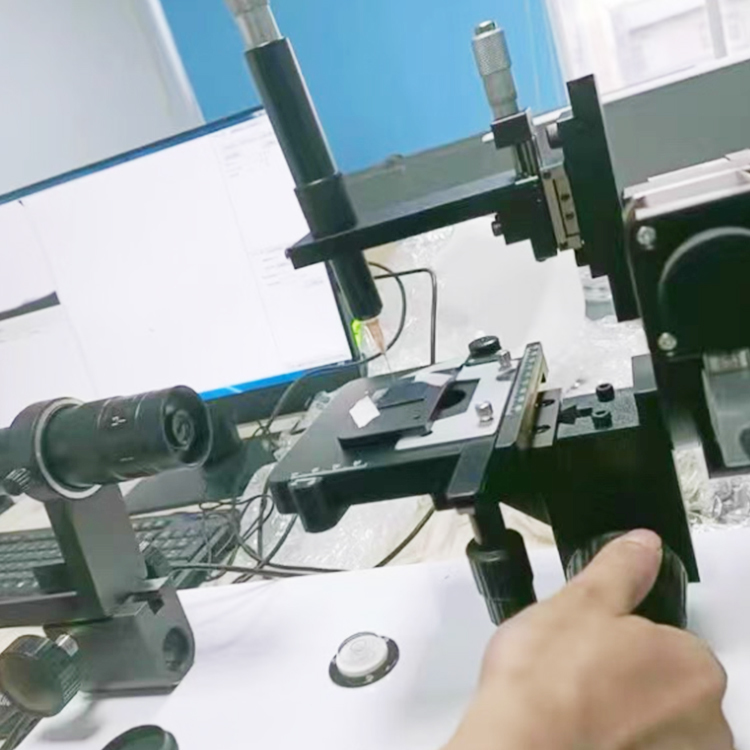

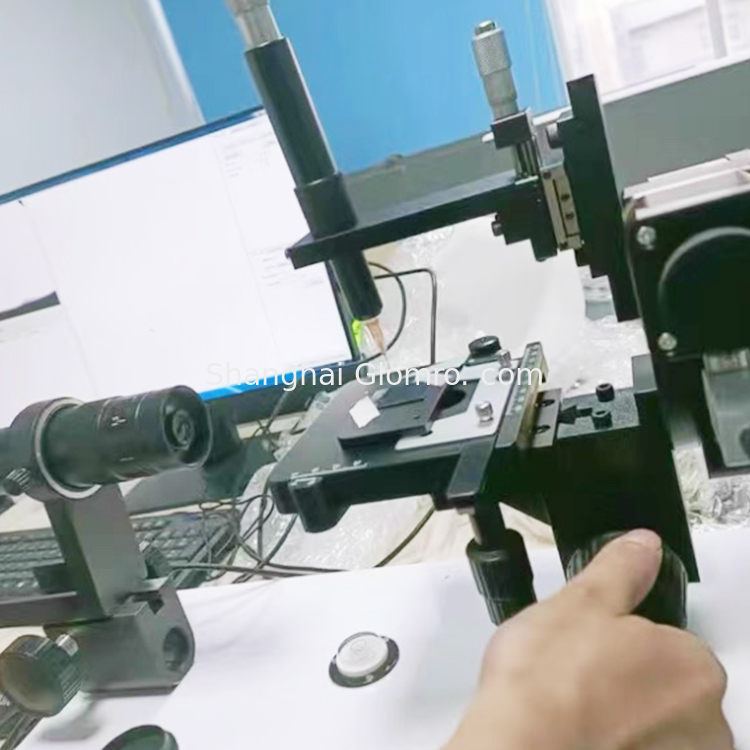

Product Images

Technical Specifications Comparison

Model	BXT-80S	BXT-100H	BXT-200SH
Type	Manual type	Standard manual type	Automatic drip type
Dimensions (L×W×H)	420×150×398mm	560×196×525mm	800×190×640mm
Weight	6kg	11kg	21kg
Light Source	LED adjustable white-toned	Dense LED adjustable blue-toned	Industrial-grade cold light source
Drip Accuracy	0.1 μL	0.2 μL	0.01 μL
Contact Angle Range	0-180°	0-180°	0-180°
Measurement Accuracy	±0.1°	±0.1°	±0.1°

Advanced Features

High-precision measurement with accuracy up to ±0.1°
Multiple fitting methods including circle, ellipse, and differential methods
Dynamic contact angle measurement capability
Surface energy and tension calculation
Comprehensive software analysis package
Industrial-grade components for reliable performance

Brand Name:	BAXIT
Model Number:	BXT-100H

Minimum Order Quantity:	1
Price:	US $3180.0 - 19532.0 / Unit
Packaging Details:	Carton box/Wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10000PCS
