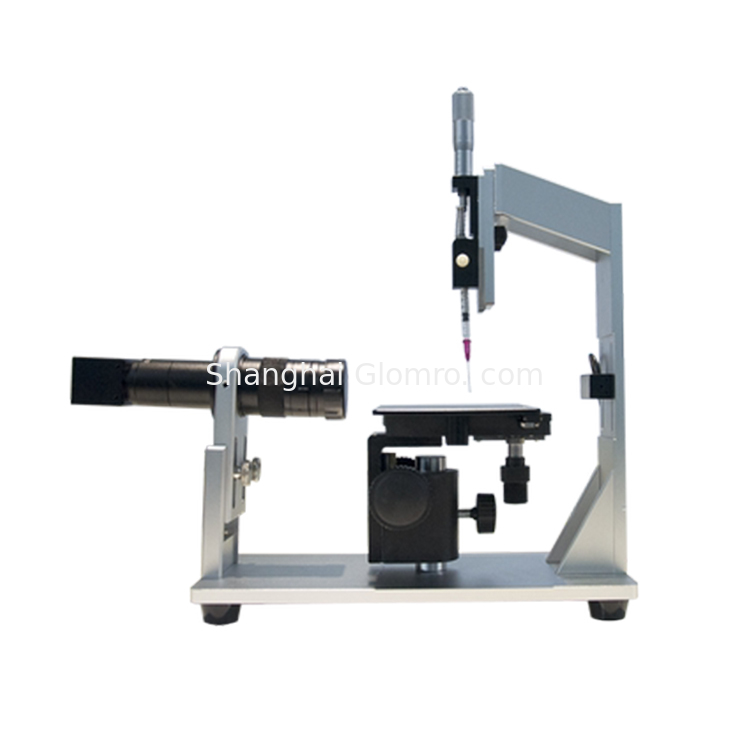

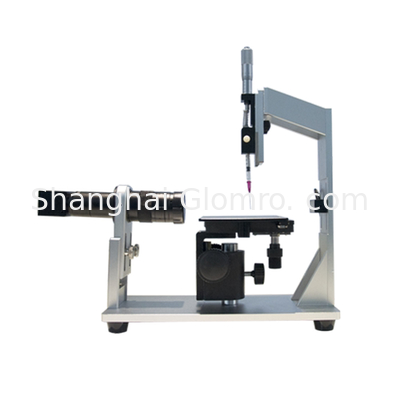

Portable Contact Angle Tester - High-Precision Contact Angle Measurement
Product Overview
The contact angle refers to the tangent line of the gas-liquid interface at the intersection point of the gas, liquid, and solid phases. This tangent line forms an angle θ between the liquid side and the solid-liquid boundary. Contact angle measurement is currently the main method for detecting surface properties.
The fully automatic contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of the sample surface properties.
Key Specifications
| Attribute |
Value |
| Model |
BXT-200SH |
| Type |
Automatic drip type |
| Dimensions (L × W × H) |
800 × 190 × 640mm |
| Weight |
21kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Applications
The contact angle measuring instrument is widely used in various industries including mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical and chemical engineering, semiconductor manufacturing, coatings and inks, electronic circuits, textile fibers, and medical and biological research. It has become an important instrument for evaluating surface properties.
Technical Specifications
Below is a comprehensive comparison of our contact angle tester models:
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
BXT-350H |
BXT-500H |
BXT-PUOU180 |
BXT-30H |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
Automatic inclination type |
Fully automatic type |
Automatic drip solution |
Portable |
| Dimensions (L × W × H) |
420×150×398mm |
560×196×525mm |
800×190×640mm |
840×408×725mm |
690×380×680mm |
610×200×510mm |
135×72×120mm |
| Weight |
6kg |
11kg |
21kg |
30.5kg |
45kg |
12kg |
1.18kg |
| Power |
220V / 60HZ |
| Light source |
LED adjustable white-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Intensive dedicated LED adjustable white-toned industrial-grade cold light source |
| Lifespan |
≥25000h |
| Injection syringe |
Special precision syringe, capacity 1000μL |
Specialized high-precision quartz syringe, capacity 500μL |
Specialized high-precision quartz syringe, capacity 500μL |
Specialized high-precision quartz syringe, capacity 500μL |
Liquid volume 60ml |
Specialized high-precision quartz syringe, capacity 250μL |
