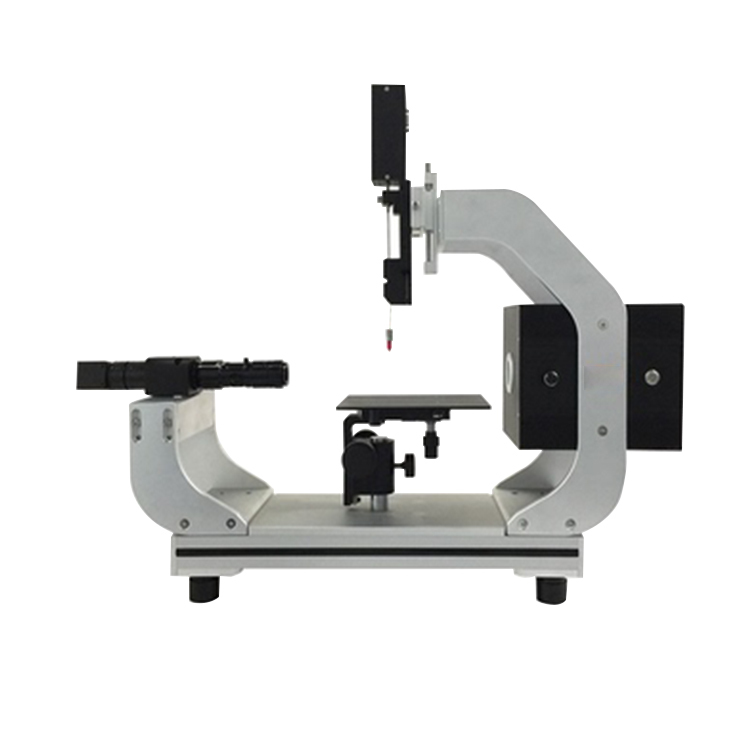

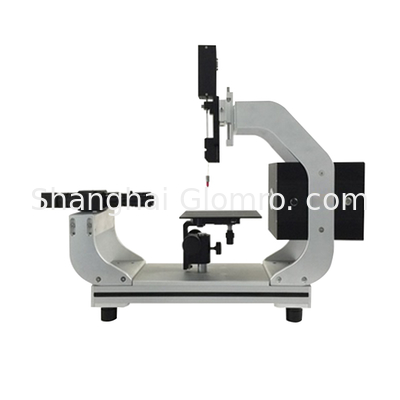

High Accuracy Water Contact Angle Measuring Testing Instrument
Product Specifications
| Attribute |
Value |
| Model |
BXT-80S |
| Type |
Manual type |
| Dimensions (L × W × H) |
420 × 150 × 398mm |
| Weight |
6kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Product Description
The contact angle measuring instrument evaluates surface properties by measuring the angle formed at the intersection point of gas, liquid, and solid phases. This specialized device uses shape image analysis to measure contact angles, wetting performance, surface tension, surface energy, and other critical surface properties with high automation capabilities.
Applications
Widely used across multiple industries including mobile phone manufacturing, glass production, surface treatment, material research, chemical engineering, semiconductor manufacturing, coatings and inks, electronic circuits, textile fibers, and medical research.
Technical Specifications
Comprehensive comparison of BXT series models and their capabilities:
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
BXT-350H |
BXT-500H |
BXT-PUOU180 |
BXT-30H |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
Automatic inclination type |
Fully automatic type |
Automatic drip solution |
Portable |
| Dimensions (L × W × H) |
420×150×398mm |
560×196×525mm |
800×190×640mm |
840×408×725mm |
690×380×680mm |
610×200×510mm |
135×72×120mm |
| Weight |
6kg |
11kg |
21kg |
30.5kg |
45kg |
12kg |
1.18kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
| Contact angle measurement range |
0-180° |
0-180° |
0-180° |
0-180° |
0-180° |
0-180° |
0-180° |
| Contact angle measurement accuracy |
±0.1° |
Company Information
Frequently Asked Questions
1. Who are we?
Based in Shanghai, China since 2017, we serve global markets including North America (20%), Western Europe (15%), South America (10%), Oceania (10%), Northern Europe (10%), Eastern Europe (10%), South Asia (5%), Southern Europe (5%), Central America (5%), Africa (5%), and Southeast Asia (5%). Our team consists of 5-10 professionals.
2. How do we guarantee quality?
We implement strict quality control measures including pre-production samples and final inspection before shipment.
3. What products do we offer?
Our product range includes Differential Scanning Calorimeters, Thermogravimetric Analyzers, Differential Thermal Analyzers, Oxygen Bomb Calorimeters, and Spot Coolers.
4. Why choose us?
With 10 years of design and development experience, we offer competitive pricing, substantial inventory, and excellent service.
5. What services do we provide?
We accept various delivery terms (FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDU, Express Delivery, DAF) and payment methods (T/T, Credit Card, Western Union) in USD. Our team communicates in English and Chinese.
