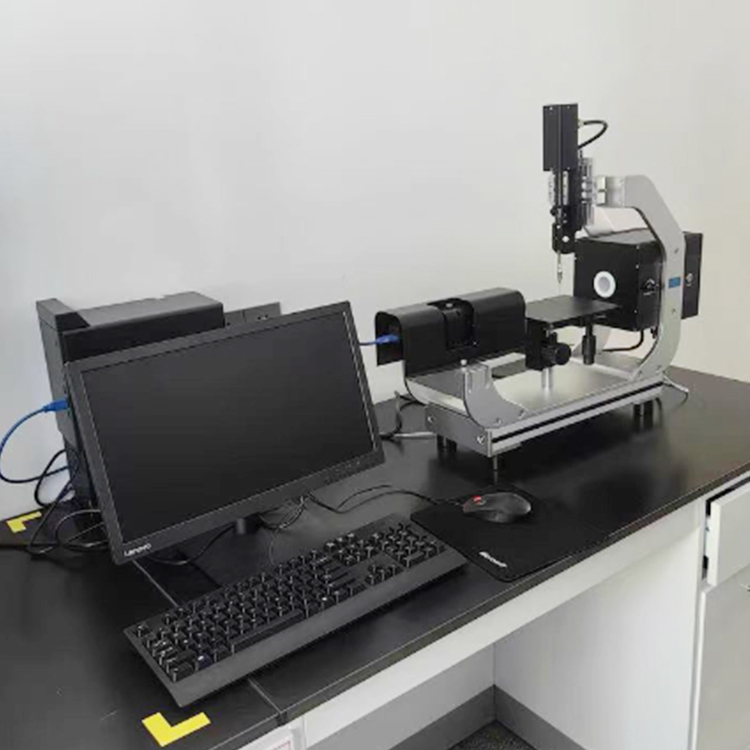

Automatic Tilt Contact Angle Measuring Instrument Optical Contact Angle Tester
Product Overview
The contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of sample surface properties. The device has a high degree of automation and can be combined with an automated production line.
Key Specifications
| Attribute |
Value |
| Model |
BXT-100H |
| Type |
Standard manual type |
| Dimensions (L × W × H) |
560 × 196 × 525mm |
| Weight |
11kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Applications
The contact angle measuring instrument is widely used in various industries including mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical and chemical engineering, semiconductor manufacturing, coatings and inks, electronic circuits, textile fibers, and medical and biological research. It has become an important instrument for evaluating surface properties.
Technical Specifications Comparison
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
| Dimensions (L × W × H) |
420 × 150 × 398mm |
560 × 196 × 525mm |
800 × 190 × 640mm |
| Weight |
6kg |
11kg |
21kg |
| Power |
220V / 60HZ |
| Light source |
LED adjustable white-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
| Lifespan |
≥25000h |
| Injection syringe |
Special precision syringe, capacity 1000μL |
Specialized high-precision quartz syringe, capacity 500μL |
Specialized high-precision quartz syringe, capacity 500μL |
| Drip method |
Manual rotary liquid injection, accuracy 0.1 μL |
Manual rotary liquid injection, accuracy 0.2 μL |
Software-controlled automatic liquid feeding, accuracy 0.01 μL |
| Injection unit movement |
50mm up/down; 15mm left/right |
100mm up/down; 100mm left/right |
50mm up/down; 50mm left/right |
| CCD |
Original imported high-speed industrial-grade chips from SONY, 200 frames per second, 2000 pixels |
| Camera |
0.7 - 4.5× high-definition industrial-grade continuous zoom microscope |
0.7 - 4.5× high-definition industrial-grade continuous zoom microscope |
| Workbench size |
120 × 140mm |
120 × 150mm |
160 × 200mm |
| Maximum sample size |
6 inches |
| Contact angle measurement range |
0 - 180° downward viewing angle: 40° |
0-180° |
| Contact angle measurement accuracy |
±0.1° |
