Laboratory Equipment: Automatic Optical Droplet Contact Angle Detector
Product Specifications
| Attribute |
Value |
| Model |
BXT-100H |
| Type |
Standard manual type |
| Dimensions (L × W × H) |
560 × 196 × 525mm |
| Weight |
11kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Product Description

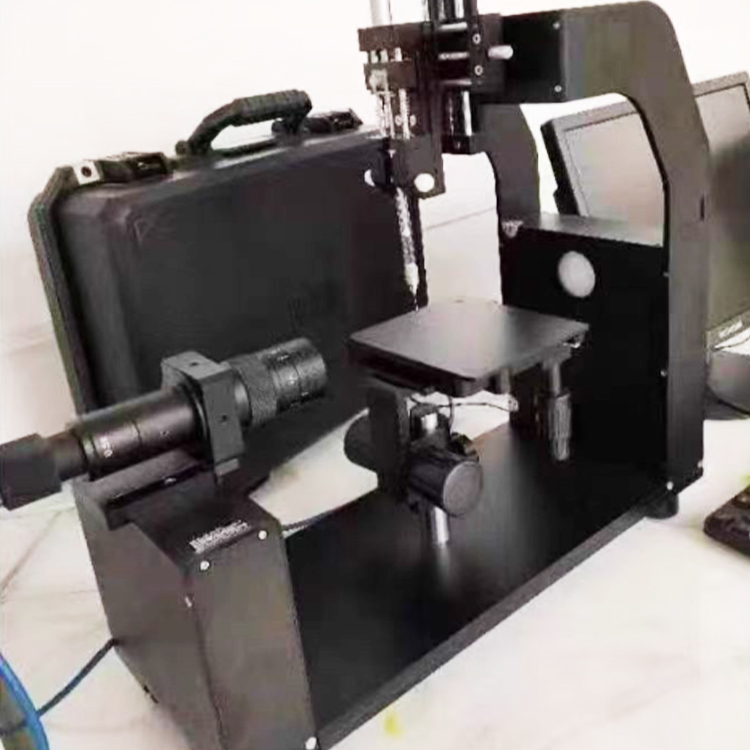

Contact Angle Measuring Instrument
The contact angle refers to the tangent line of the gas-liquid interface at the intersection point of the gas, liquid, and solid phases. This tangent line forms an angle θ between the liquid side and the solid-liquid boundary. Contact angle measurement is currently the main method for detecting surface properties.
The fully automatic contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of the sample surface properties. The device has a high degree of automation and can be combined with an automated production line to achieve online fitting.
Applications
The contact angle measuring instrument is widely used in various industries. It has been applied in fields such as mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical and chemical engineering, semiconductor manufacturing, coatings and inks, electronic circuits, textile fibers, medical and biological research, etc. The contact angle measurement has become an important instrument for evaluating surface properties.
Technical Specifications
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
| Dimensions (L × W × H) |
420×150×398mm |
560×196×525mm |
800×190×640mm |
| Weight |
6kg |
11kg |
21kg |
| Power |
220V / 60HZ |
| Light source |
LED adjustable white-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
|
| Lifespan |
≥25000h |
| Injection syringe |
Special precision syringe, capacity 1000μL |
Specialized and fully compatible high-precision quartz syringe, capacity 500μL |
|
Company Information
Frequently Asked Questions
1. Who are we?
We are based in Shanghai, China, starting from 2017. We sell to North America (20.00%), Western Europe (15.00%), South America (10.00%), Oceania (10.00%), Northern Europe (10.00%), Eastern Europe (10.00%), South Asia (5.00%), Southern Europe (5.00%), Central America (5.00%), Africa (5.00%), and Southeast Asia (5.00%). There are about 5-10 people in our office.
2. How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct final inspection before shipment.
3. What can you buy from us?
We offer Differential Scanning Calorimeters, Thermogravimetric Analyzers, Differential Thermal Analyzers, Oxygen Bomb Calorimeters, and Spot Coolers.
4. Why should you buy from us instead of other suppliers?
We have 10 years of experience in design and development, offer competitive prices, maintain substantial inventory, and provide excellent service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDU, Express Delivery, DAF. Accepted Payment Currency: USD. Accepted Payment Type: T/T, Credit Card, Western Union. Languages Spoken: English, Chinese.
