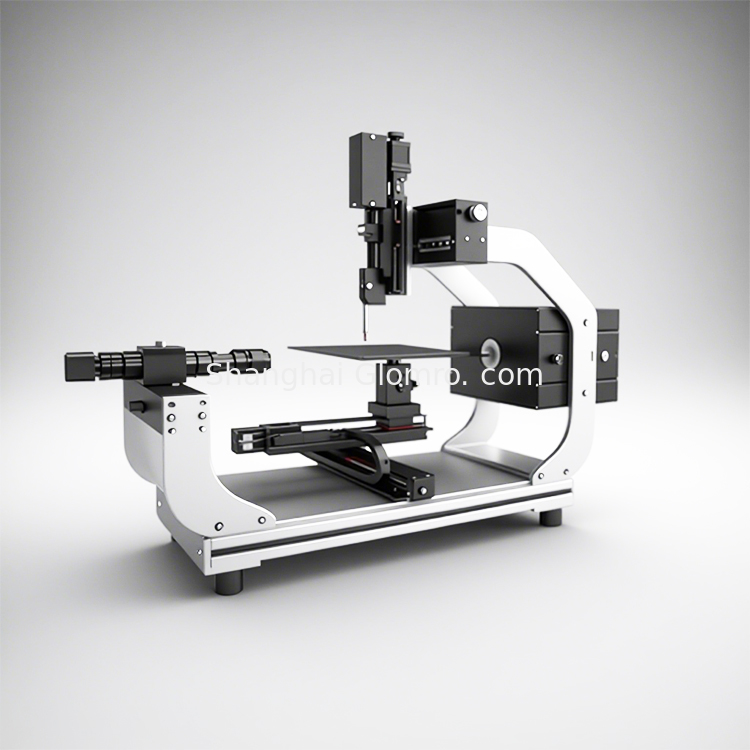

Overall Tilt Automatic Contact Angle Measuring Instrument
High Precision Lab Equipment
Product Specifications
| Attribute |
Value |
| Model |
BXT-200SH |
| Type |
Automatic drip type |
| Dimensions (L × W × H) |
800 × 190 × 640mm |
| Weight |
21kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Product Description
The contact angle refers to the tangent line of the gas-liquid interface at the intersection point of the gas, liquid, and solid phases. This tangent line forms an angle θ between the liquid side and the solid-liquid boundary. Contact angle measurement is currently the main method for detecting surface properties.
The fully automatic contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of the sample surface properties. The device has a high degree of automation and can be combined with an automated production line to achieve online fitting.
Applications
The contact angle measuring instrument is widely used in various industries including:
- Mobile phone manufacturing
- Glass manufacturing
- Surface treatment
- Material research
- Chemical and chemical engineering
- Semiconductor manufacturing
- Coatings and inks
- Electronic circuits
- Textile fibers
- Medical and biological research
Contact angle measurement has become an important instrument for evaluating surface properties.
Technical Specifications
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
| Dimensions (L × W × H) |
420×150×398mm |
560×196×525mm |
800×190×640mm |
| Weight |
6kg |
11kg |
21kg |
| Power |
220V / 60HZ |
| Light source |
LED adjustable white-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
| Lifespan |
≥25000h |
| Injection syringe |
Special precision syringe, capacity 1000μL |
Specialized high-precision quartz syringe, capacity 500μL |
Specialized high-precision quartz syringe, capacity 500μL |
| Drip method |
Manual rotary liquid injection, accuracy 0.1μL |
Manual rotary liquid injection, accuracy 0.2μL |
Software-controlled automatic liquid feeding, accuracy 0.01μL |
| Injection unit movement |
50mm up/down; 15mm left/right |
100mm up/down; 100mm left/right |
50mm up/down; 50mm left/right |
| CCD |
Original imported high-speed industrial-grade chips from SONY, 200 frames per second, 2000 pixels |
| Camera |
0.7-4.5× high-definition industrial-grade continuous zoom microscope |
0.7-4.5× high-definition industrial-grade continuous zoom microscope |
| Contact angle measurement range |
0-180° downward viewing angle: 40° |
0-180° |
| Contact angle measurement accuracy |
±0.1° |
