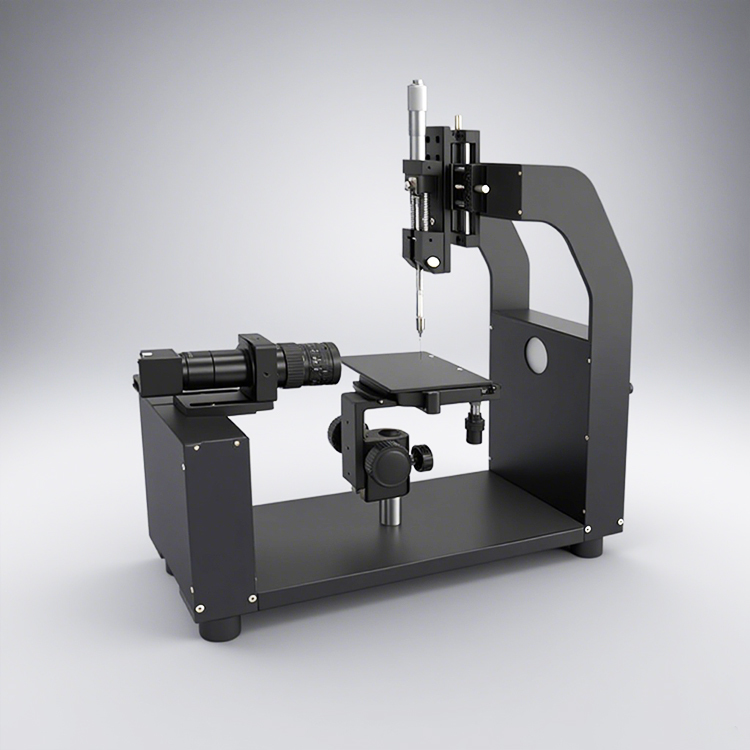

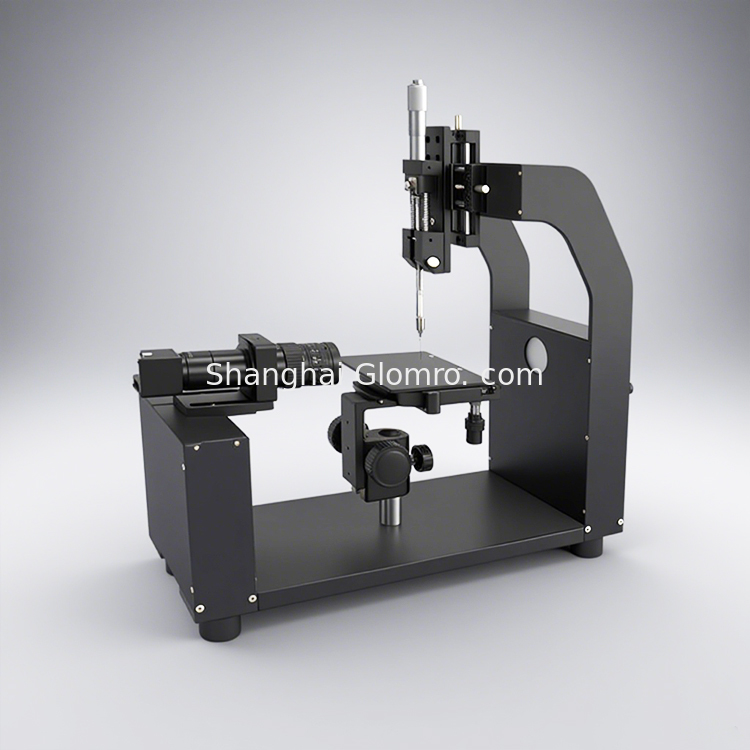

Contact Angle Tester Water Drop Angle Measuring Instrument Drop Angle Testing Machine
Product Specifications
| Attribute |
Value |
| Model |
BXT-100H |
| Type |
Standard manual type |
| Dimensions (L × W × H) |
560 × 196 × 525mm |
| Weight |
11kg |
| Power |
220V / 60HZ |
| Lifespan |
≥25000h |
Product Description
Contact Angle Measuring Instrument
The contact angle refers to the tangent line of the gas-liquid interface at the intersection point of the gas, liquid, and solid phases. This tangent line forms an angle θ between the liquid side and the solid-liquid boundary. Contact angle measurement is currently the main method for detecting surface properties.
The fully automatic contact angle measuring instrument is a specialized device that uses the shape image analysis method to measure the contact angle, wetting performance, surface tension, surface energy, rolling (sliding angle), forward-backward angle, lagging property, and multi-point automatic intelligent contact angle measurement of the sample surface properties. The device has a high degree of automation and can be combined with an automated production line to achieve online fitting.
Applications
The contact angle measuring instrument is widely used in various industries including mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical and chemical engineering, semiconductor manufacturing, coatings and inks, electronic circuits, textile fibers, and medical and biological research. Contact angle measurement has become an important instrument for evaluating surface properties.
Technical Specifications
| Model |
BXT-80S |
BXT-100H |
BXT-200SH |
| Type |
Manual type |
Standard manual type |
Automatic drip type |
| Dimensions (L × W × H) |
420 × 150 × 398mm |
560 × 196 × 525mm |
800 × 190 × 640mm |
| Weight |
6kg |
11kg |
21kg |
| Power |
220V / 60HZ |
| Light source |
LED adjustable white-toned industrial-grade cold light source |
Dense LED adjustable blue-toned industrial-grade cold light source |
|
| Lifespan |
≥25000h |
| Injection syringe |
Special precision syringe, capacity 1000μL |
Specialized and fully compatible high-precision quartz syringe, capacity 500μL |
|
| Drip method |
Manual rotary liquid injection, droplet injection accuracy 0.1 μL |
Manual rotary liquid injection, droplet injection accuracy 0.2 μL |
Software-controlled automatic liquid feeding with accuracy up to 0.01 μL |
| Injection unit movement |
50mm up and down; 15mm left and right |
100mm up and down; 100mm left and right |
50mm up and down; 50mm left and right |
| CCD |
Original imported high-speed industrial-grade chips from SONY, 200 frames per second, 2000 pixels |
| Camera |
0.7 - 4.5 times high-definition industrial-grade continuous zoom microscope |
|
| Contact angle measurement range |
0 - 180° downward viewing angle: 40° |
0-180° |
| Contact angle measurement accuracy |
±0.1° |
