Detail Information

Model:	BXT-DSF900	Detection Matrix:	Iron-based, Copper-based, Aluminum-based, Nylon-based, Cobalt-based, Magnesium-based, Titanium-based, Zinc-based, Lead-based, Etc.
Testing Time:	Depending On The Type Of Sample, It Is Generally Around 25 Seconds	Optical System:	Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength Range:	130-800nm	Focal Length:	400mm
Detector:	International-level Detector Module, High-performance Linear CCD	Electrode:	Tungsten Jet Electrode
Highlight:	Full Band Direct Reading Spectrometer , Benchtop Metal Spectrometer , Multi-element Analyzer Benchtop Metal Spectrometer

Product Description

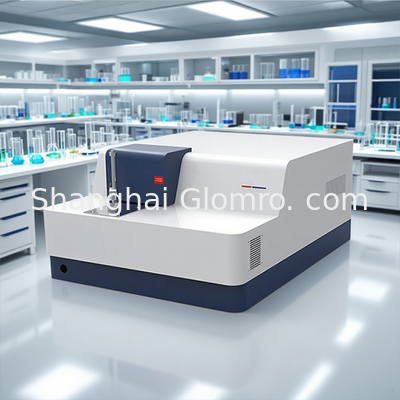

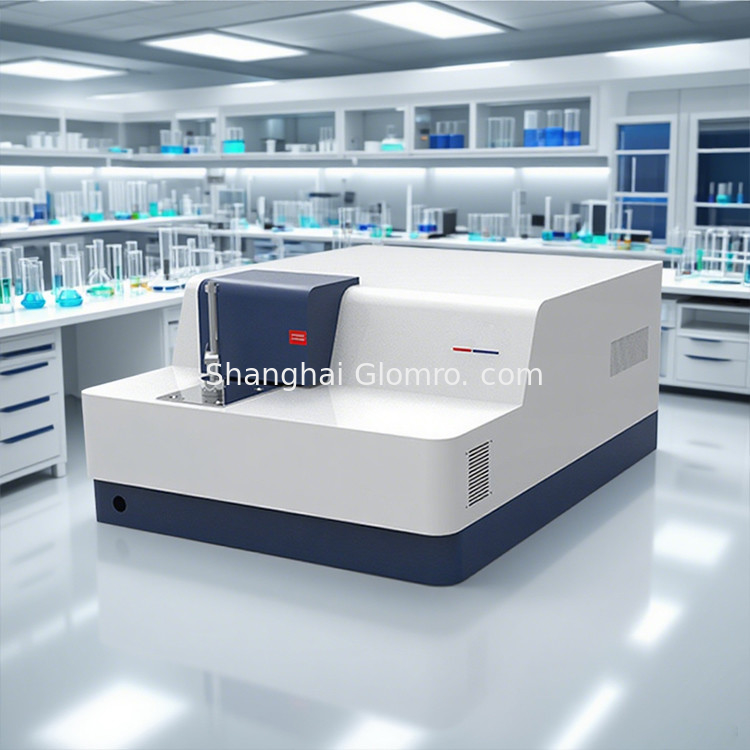

Full-spectrum direct reading spectrometer

The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 0

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 1

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 2

Technical Specifications

Model	BXT-DSF600	BXT-DSF900
Detection Matrix	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.
Testing time	Depending on the type of sample, it is generally around 25 seconds	Depending on the type of sample, it is generally around 25 seconds
Optical system	Paschen-Runge Rowland Circle Full-Spectrum Optical System	Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength range	160-800nm	130-800nm
Focal length	300mm	400mm
Detector	High-resolution multi-CMOS image sensor	International-level detector module, high-performance linear CCD
Electrode	Tungsten Jet Electrode	Tungsten Jet Electrode
Analysis Gap	Sample table analysis gap:3. 5mm	Sample table analysis gap:3.5mm
Working temperature	(10-35)℃	(10-35)℃
Storage temperature	(0-45)℃	(0-45)℃
Work humidity	20%-80%	20%-80%
Purity requirements for argon gas	99.999%	99.999%
Argon gas inlet pressure	0.5MPa	0.5MPa
In an argon flow	Excitation flow rate is approximately 3. 5L/min	Excitation flow rate is approximately 3.5L/min
Light source type	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)
Discharge frequency	100-1000 Hz	100-1000 Hz
Discharge current	Max 380A	Max 380A
Excitation Stage Aperture	13mm	13mm
Vacuum system	Vacuum system	Vacuum system
Working power supply	220V AC,50/60Hz,Protective grounded single-phase power supply	220VAC,50/60Hz,Protective grounded single-phase power supply
Instrument size	720X560X370mm	860x660x360mm
Instrument weight	65kg	80kg

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 3

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 4

Packing & Delivery

Multi-element Analyzer Full-band Direct Reading Benchtop Metal Spectrometer 5

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

Tag:

Place of Origin:	China
Brand Name:	BAXIT
Model Number:	BXT-DSF600/BXT-DSF900

Minimum Order Quantity:	1
Price:	US$17,805-18,780/unit
Packaging Details:	Carton box/Wooden box
Delivery Time:	5-8Working day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10000pcs
