| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT- WZZ2B |
| Minimum Order Quantity: | 1 |
| Price: | USD 340-4630/unit |
| Packaging Details: | wooden box |
| Delivery Time: | 3-5working days |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 1000units |
| Measurement Mode: | Optical Rotation | Instrument Light Source: | Light Emitting Diode (LED) + Interference Filter |
|---|---|---|---|
| Working Wavelength: | 589nm(Sodium D-line Spectroscopy) | Measurement Range: | ±45°(Optical Rotation) |
| Minimum Reading: | 0.002°(Optical Rotation) | Repetition: | ≤0.01° (Standard Deviation σ) |
| Highlight: | Lab AUTOMATIC POLARIMETER,BXT- WZZ2B AUTOMATIC POLARIMETER,High Precision AUTOMATIC POLARIMETER |
||
Introduction to Automatic Polarimeter
An optical rotation meter is an instrument for measuring the optical rotation of substances. Through the measurement of optical rotation, one can analyze and determine the concentration, content and purity of substances, and it is widely applied in the industrial sectors such as sugar production, pharmaceuticals, petroleum, food, and chemical engineering, as well as in relevant universities and research institutions.
Product model and parameters
Take BXT-SGW2 as an example
| Model | BXT-SGW2 Automatic (thermostatic) polarimeter |
| Measurement mode | Optical Rotation,Specific Rotation,Concentration,Brix |
| Instrument light source | Light Emitting Diode (LED) + Interference Filter |
| Working wavelength | 589nm(Sodium D-line Spectroscopy) |
| Measurement range | ±45°(Optical Rotation)±120°Z(Brix) |
| Minimum Reading | 0.001°(Optical Rotation)0.01°Z(Brix) |
| Indication Error | ±0.01°(-15°≤Optical Rotation≤+15°) ±0.02°(Optical Rotation<-15°or Optical Rotation>+15°) |
| Repetition | ≤0.002°(Optical rotation)(Standard deviation σ) |
| Temperature control | Controllable temperature Peltier device (built-in) |
| Temperature control range | 15℃-30℃ |
| Temperature control accuracy | ±0.5℃ |
| Display Type | 7-inch color LCD touch screen |
| Standard Test Tubes | 100mm/200mm common type, 100mmTemperature-controlled type |
| Sample transmittance | 1% |
| Communication interface | RS232/USB |
| Power supply | 220V±22V,50Hz±1Hz,200W |
| Instrument size | 710x400x240(mm) |
| Accuracy | grade 0.02 |
Optional types and parameters of test tubes available for selection

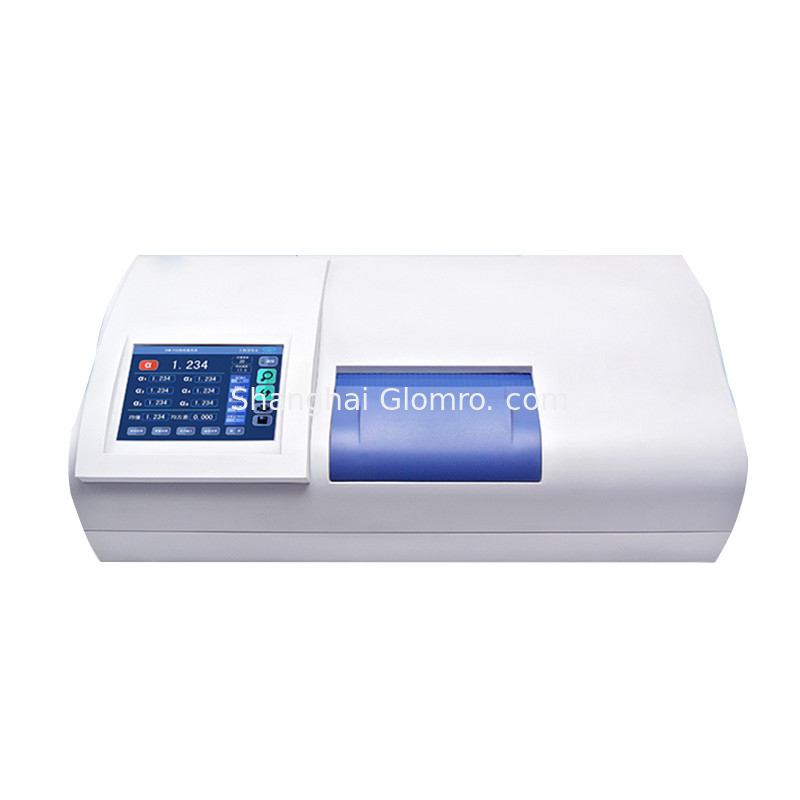

Product display
