Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank

Basic Information
Brand Name: BAXIT
Model Number: BXT-25ML
Minimum Order Quantity: 1
Price: USD 38~579 per Unit
Delivery Time: 5-8 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999 per day
Detail Information
Model: BXT-25ML Kettle Body Material: 304 Stainless Steel
Lining Material: PTFE/PPL Lining Specifications: 33*61MM
Lining Capacity: 25ML Strengthening Rod Specifications: 8*200MM
Maximum Pressure: ≤3Mpa PTFE Maximum Temperature: ≤220°C
PPL Maximum Temperature: ≤260°C Heating And Cooling Rate: ≤5°C/Min
High Light:

Polytetrafluorolined Hydrothermal Synthesis Reactor

,

PTFE Hydrothermal Synthesis Reactor

,

Polytetrafluorolined Digestion Tank Hydrothermal Synthesis Reactor


Product Description

BAXIT Hydrothermal Synthesis Reactor

Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank

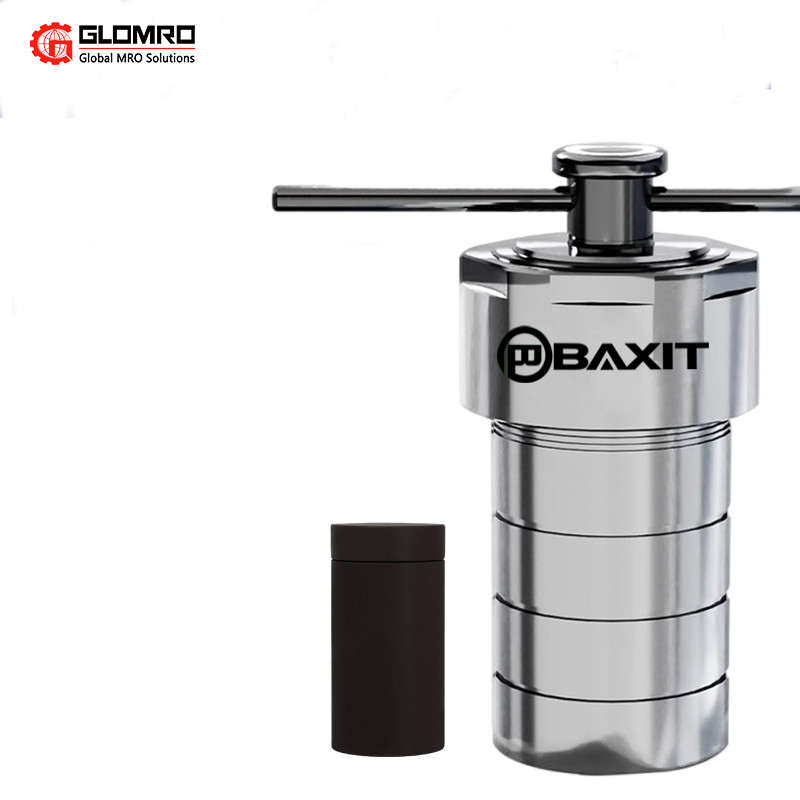

Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank 0

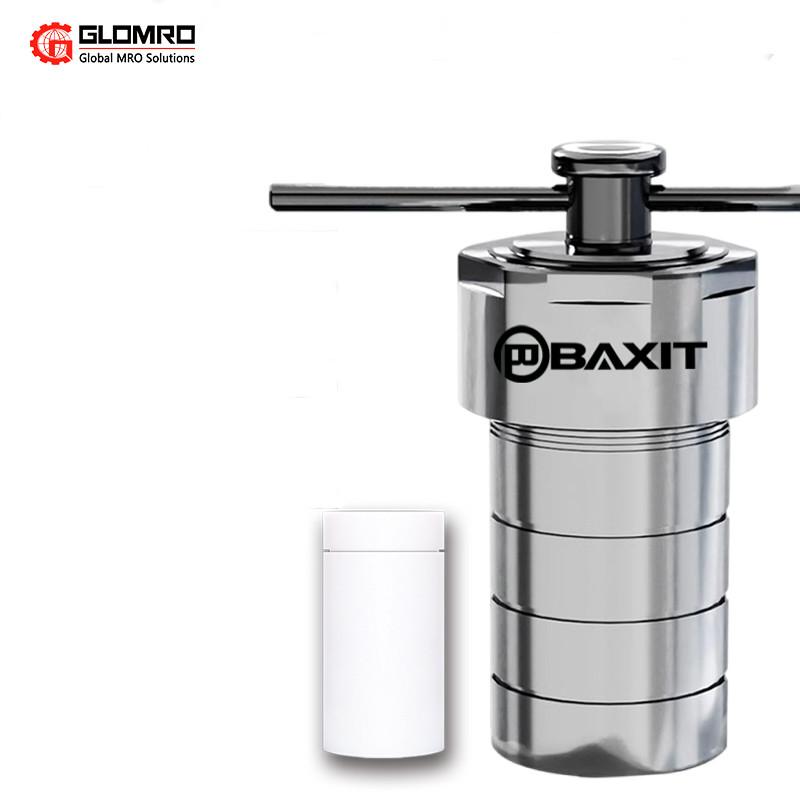

Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank 1

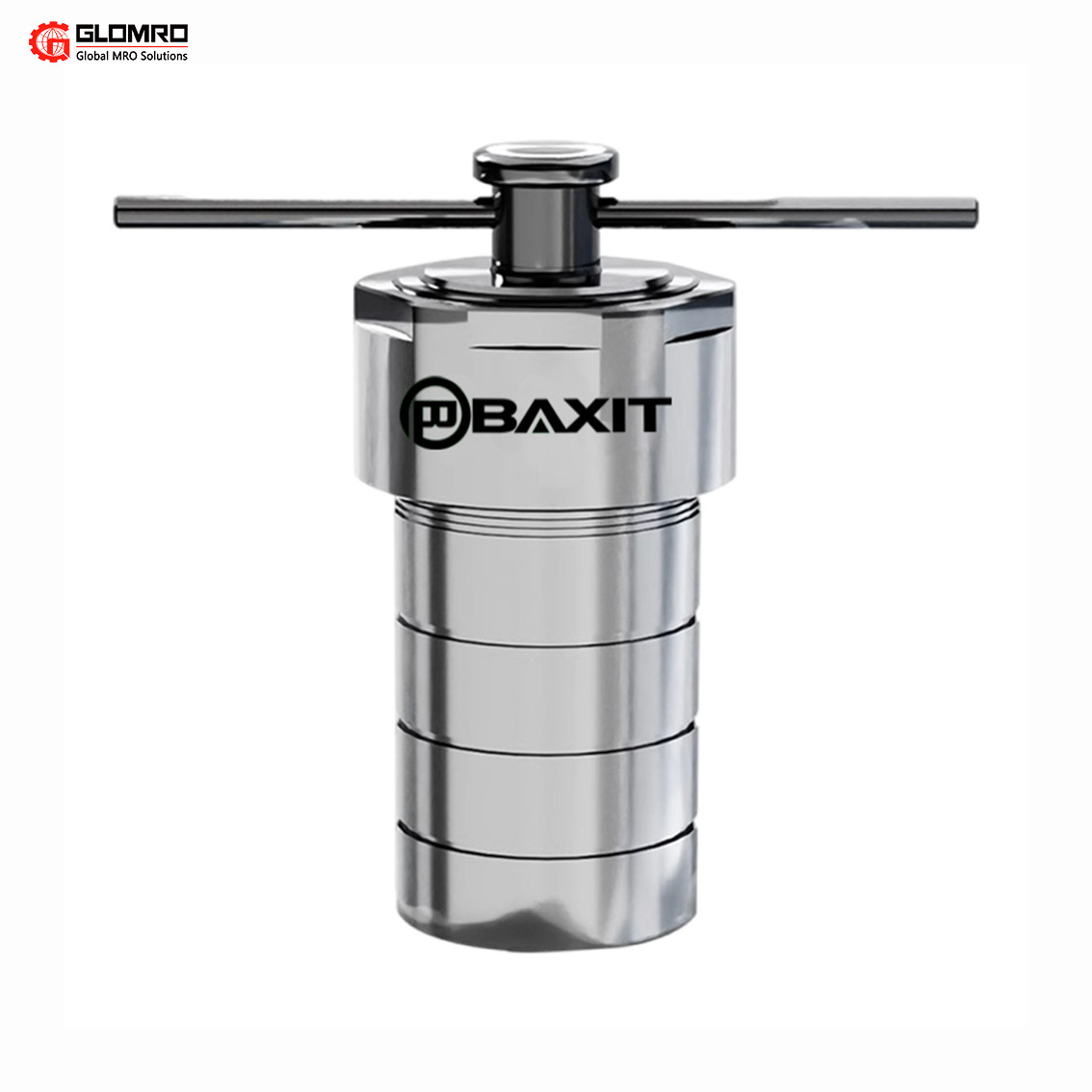

Thickened Stainless Steel PTFE Hydrothermal Synthesis Reactor 10/50/500ml Polytetrafluorolined Digestion Tank 2


Product Parameters



Model BXT-25ML BXT-50ML BXT-100ML BXT-150ML BXT-200ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 33*61MM 40*78MM 49*95MM 58*114MM 63*135MM
Lining capacity 25ML 50ML 100ML 150ML 200ML
Strengthening rod
specifications
8*200MM
Pressing method Threaded screw cap compression, manual tightening
Maximum pressure ≤3Mpa
PTFE maximum temperature ≤220°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 1.02KG 1.65KG 2.4KG 4.8KG 6.1KG
Dimensions 53*117MM 65*139MM 75*160MM 97*185MM 107*205MM
Model BXT-250ML BXT-300ML BXT-400ML BXT-500ML BXT-1000ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 65*135MM 71*138MM 81*138MM 94*138MM 120*152MM
Lining capacity 250ML 300ML 400ML 500ML 1000ML
Strengthening rod
specifications
8*200MM no need
Pressing method Threaded screw cap compression Bolt tightening
Maximum pressure ≤3Mpa ≤6Mpa
PTFE maximum temperature ≤220°C ≤240°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 6.1KG 6.7KG 8.1KG 10.6KG 23.5KG
Dimensions 107*205MM 110*210MM 120*215MM 135*215MM 202*220MM



Model BXT-EX-30ML BXT-EX-50ML BXT-EX-100ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 45*58MM 45*75MM 50*85MM
Lining capacity 30ML 50ML 100ML
Strengthening rod
specifications
8*200MM 10*180MM
Pressing method Threaded screw cap compression
Maximum pressure ≤3Mpa
PTFE maximum temperature ≤220°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 1.5
2.2
2.2 2.5
Dimensions 68*97 74*125 79*133
