High Temperature High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor For Laboratory

Basic Information
Brand Name: BAXIT
Model Number: BXT-25ML
Minimum Order Quantity: 1
Price: USD 38~579 per Unit
Delivery Time: 5-8 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999 per day
Detail Information
Model: BXT-25ML Kettle Body Material: 304 Stainless Steel
Lining Material: PTFE/PPL Lining Specifications: 33*61MM
Lining Capacity: 25ML Strengthening Rod Specifications: 8*200MM
Maximum Pressure: ≤3Mpa PTFE Maximum Temperature: ≤220°C
PPL Maximum Temperature: ≤260°C Heating And Cooling Rate: ≤5°C/Min
High Light:

Laboratory Polytetrafluoroethylene Hydrothermal Synthesis Reactor

,

High Temperature Polytetrafluoroethylene Hydrothermal Synthesis Reactor

,

High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor


Product Description

BAXIT Hydrothermal Synthesis Reactor

Laboratory High Temperature and High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor

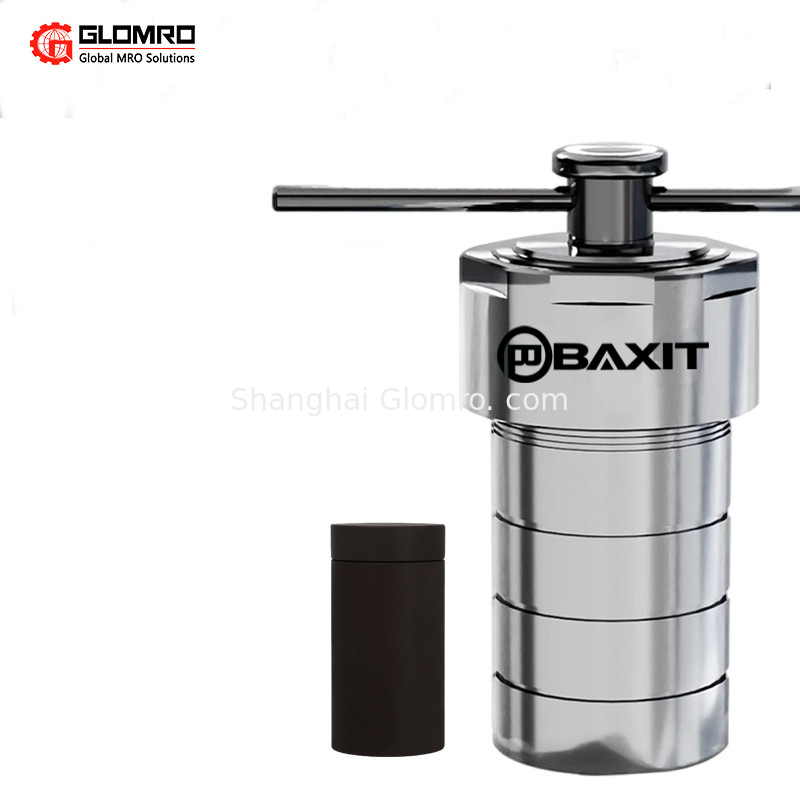

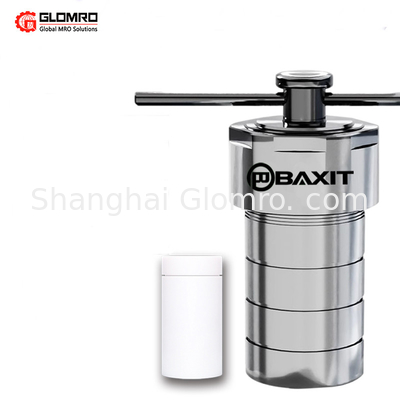

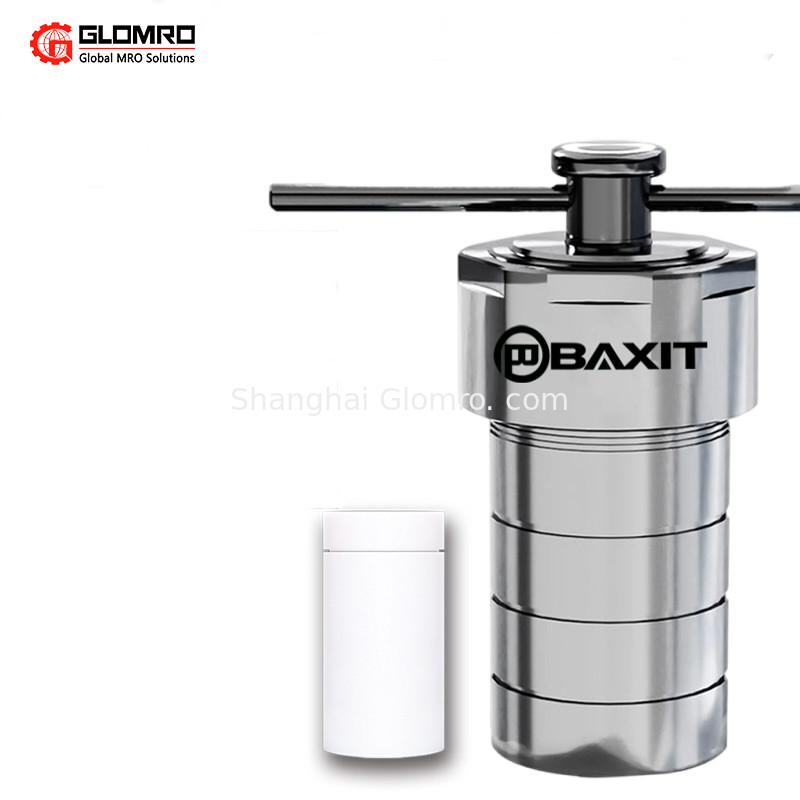

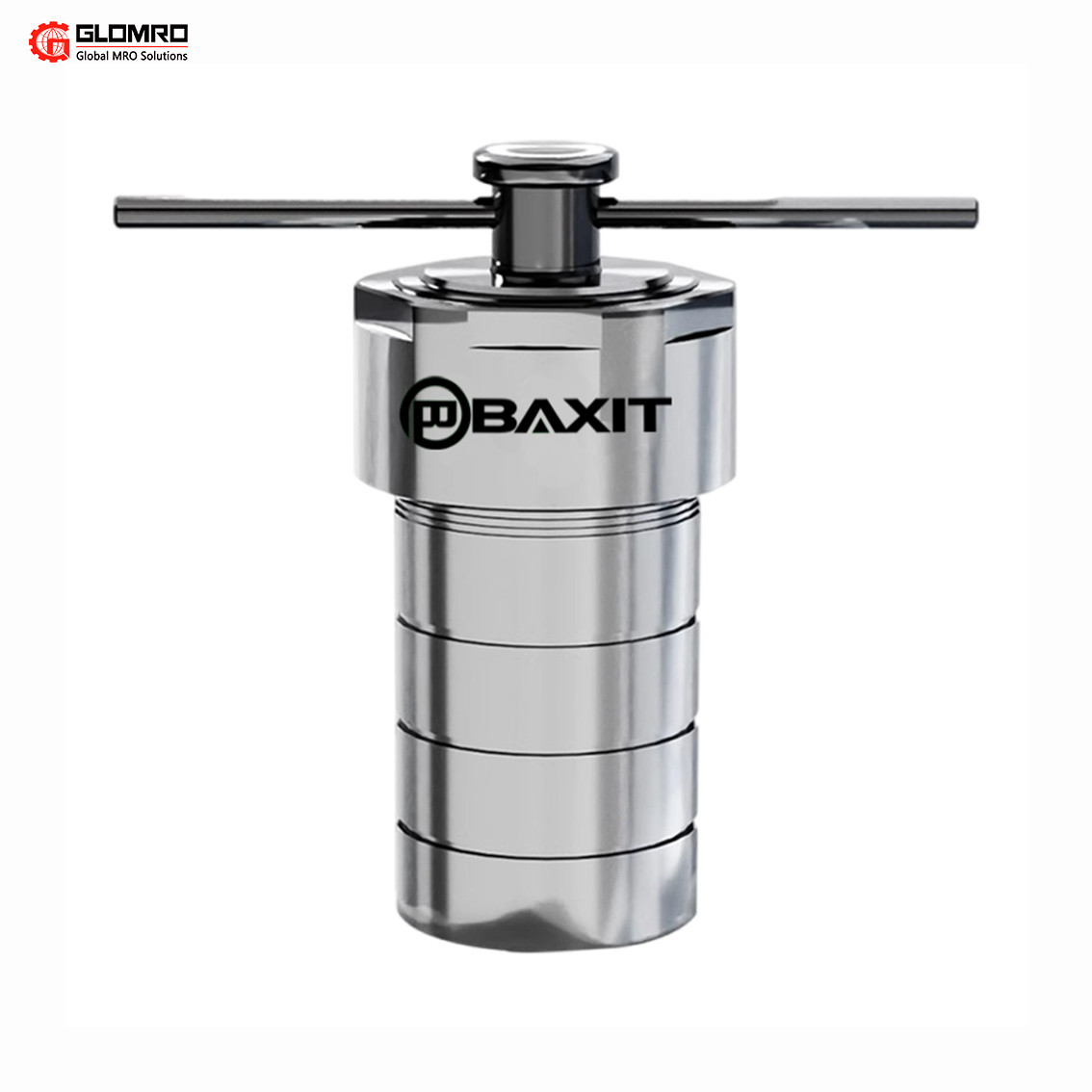

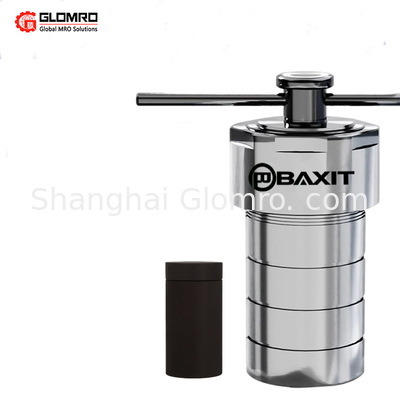

High Temperature High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor For Laboratory 0

High Temperature High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor For Laboratory 1

High Temperature High Pressure Polytetrafluoroethylene Hydrothermal Synthesis Reactor For Laboratory 2


Product Parameters



Model BXT-25ML BXT-50ML BXT-100ML BXT-150ML BXT-200ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 33*61MM 40*78MM 49*95MM 58*114MM 63*135MM
Lining capacity 25ML 50ML 100ML 150ML 200ML
Strengthening rod
specifications
8*200MM
Pressing method Threaded screw cap compression, manual tightening
Maximum pressure ≤3Mpa
PTFE maximum temperature ≤220°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 1.02KG 1.65KG 2.4KG 4.8KG 6.1KG
Dimensions 53*117MM 65*139MM 75*160MM 97*185MM 107*205MM
Model BXT-250ML BXT-300ML BXT-400ML BXT-500ML BXT-1000ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 65*135MM 71*138MM 81*138MM 94*138MM 120*152MM
Lining capacity 250ML 300ML 400ML 500ML 1000ML
Strengthening rod
specifications
8*200MM no need
Pressing method Threaded screw cap compression Bolt tightening
Maximum pressure ≤3Mpa ≤6Mpa
PTFE maximum temperature ≤220°C ≤240°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 6.1KG 6.7KG 8.1KG 10.6KG 23.5KG
Dimensions 107*205MM 110*210MM 120*215MM 135*215MM 202*220MM



Model BXT-EX-30ML BXT-EX-50ML BXT-EX-100ML
Kettle body material 304 Stainless Steel
Lining material PTFE/PPL
Lining specifications 45*58MM 45*75MM 50*85MM
Lining capacity 30ML 50ML 100ML
Strengthening rod
specifications
8*200MM 10*180MM
Pressing method Threaded screw cap compression
Maximum pressure ≤3Mpa
PTFE maximum temperature ≤220°C
PPL maximum temperature ≤260°C
Heating and cooling rate ≤5°C/Min
Net weight 1.5
2.2
2.2 2.5
Dimensions 68*97 74*125 79*133
