| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BAXIT-GHX-V |
| Minimum Order Quantity: | 1 |
| Price: | USD3740/unit |
| Delivery Time: | 1-3 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000units |
| Model Number: | BAXIT-GHX-V | Country Of Origin: | Shanghai, China |
|---|---|---|---|
| Product Configuration: | Cold Water Circulation Device And Eight-position Magnetic Stirring Device | ||
| High Light: | Photochemical Reaction Instrument,Microcomputer Controlled Photochemical Reactor,Multifunctional Photocatalytic Reaction Device |
||

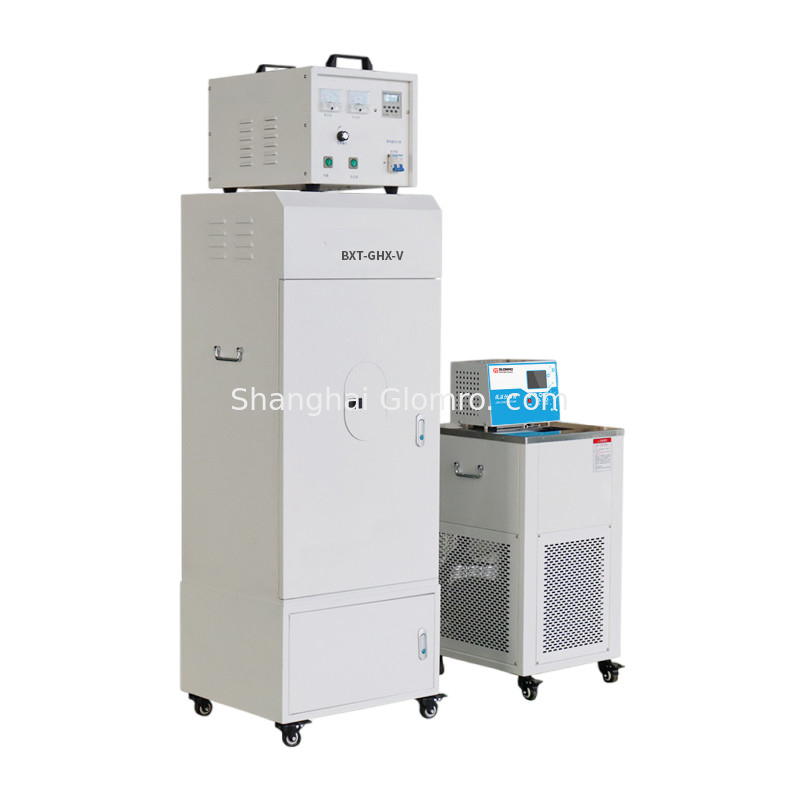

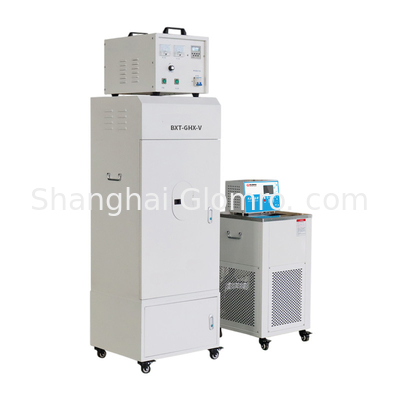

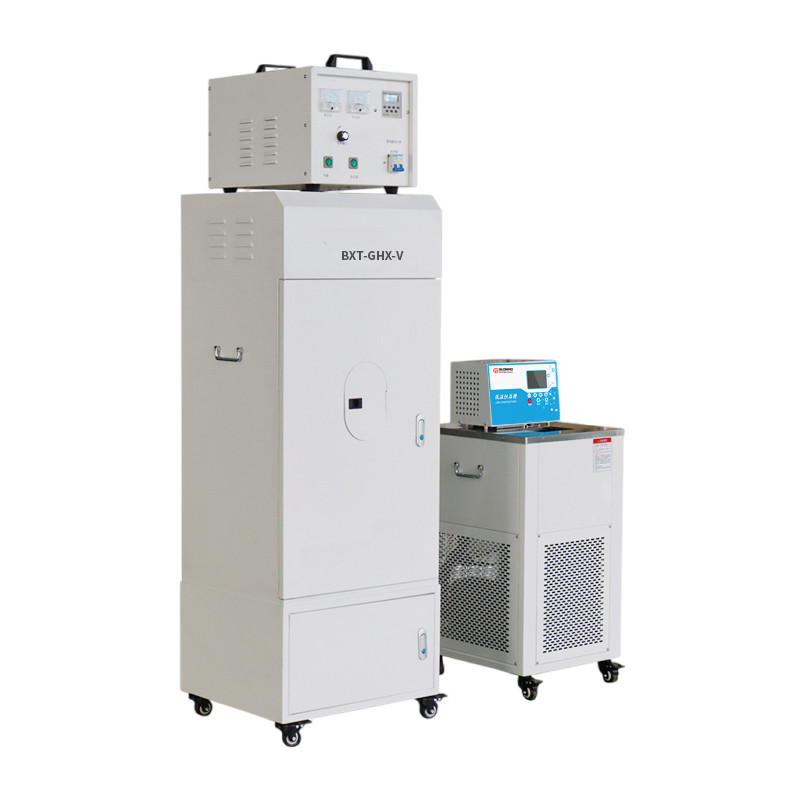

Photochemical reactor Multifunctional photochemical reactor photocatalytic reaction device
Photochemical reaction instrument BXT-GHX-V model
Main features of photochemical reaction instrument:
● Microcomputer controller, power continuously adjustable.
● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes.
● Microcomputer timer, can be timed step by step.
● Internal light source, full light.
● Equipped with eight-position magnetic stirring device, so that the sample is fully mixed by light.
● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source.
● There are 2 special sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor.
● Equipped with movable trolley, easy to move or fix.
BXT-GHX-V type is suitable for small batch sample processing.
● The main machine is equipped with temperature protection, and the lamp is automatically extinguished when the temperature exceeds 50°
Technical parameters of photochemical reaction instrument:
★ Light source power can be continuously adjusted.
★ The integrated light source controller can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources.
★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical professional controller (500W/1000W optional)
★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted.
★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted.
★ Quartz test tube specifications: 30ml, 50ml (or customized).
★ Can handle 8 samples at the same time (or customized).
★ The eight-position magnetic stirring device can synchronously adjust the stirring speed of 8 samples, and optionally rotate the stirring reactor at the same time.
★ Cooling capacity of cooling water circulation device: > 1000W
★ Cooling water circulation device is provided with casters and bottom drainage valve, temperature range -20°-100°
Photochemical reaction instrument Product configuration:
Cold water circulation device: photochemistry special low temperature constant temperature circulator 1, reaction camera: 1, Chuanhua special light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1,
Eight-position magnetic stirring device: 1 set, quartz test tube: 8 (30ml,50ml optional 8), UV eyes 1, mobile cart: 1.
| Model number | Product description | Main feature | Technical parameter | Product configuration |
| BXT-GHX-I | BXT-GHX-I type photochemical reaction meter is made One of the large volume samples, Can do 250ml/500/ml/1000/ liquid at a time. Can also be customized according to customer requirements, The reaction bottle has a high power heating magnetic stirrer under it, Stir the sample evenly, Also controlled temperature. |
● Microcomputer controller, power continuously adjustable ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light. ● Equipped with magnetic stirrer, so that the sample fully mixed light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. ● Type BXT-GHX-I is suitable for processing large quantities of samples. |
★ Light source power can be continuously adjusted. ★ Can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Glass reaction vessels can be selected 250ml, 500ml, 1000ml, etc. (or customized). |
Reaction camera obscura: 1, light source controller: 1, quartz cold trap: 1, mercury lamp: 1, xenon lamp: 1, gold halide lamp: 1 Mixer: 1 set, Sample reaction bottle: 1 piece (250ml, 500ml,1000ml optional), anti-ultraviolet eye 1, mobile cart: 1. |
| BXT-GHX-II | Cold water circulation device: 1 photochemical low temperature constant temperature circulator, Reaction camera obscura: 1, Can common light source controller: 1, Double quartz cold trap: 1, mercury lamp: 1, xenon lamp: 1, gold halide lamp: 1, Mixer: 1 set, sample reaction bottle: 1 (250ml,500ml,1000ml optional), UV protection eye 1, mobile cart: 1. |
|||
| BXT-GHX-III | Type BXT-GHX-III is It can be made as both a gas and a solid, The reactor is a high material Stainless steel, strong corrosion resistance, inside Through a variety of gases, above the reactor Quartz glass, light transmittance, light source is in Vertical irradiation above the reactor. Above the light source It's got a reflector, it brings in all the light Inside the reactor, the reactor is placed on a lifting platform Adjustable distance from light source. |
● Microcomputer controller, power continuously adjustable. ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light, gas reactor can be passed into special gas (with gas filtration). ● Equipped with eight-position magnetic stirring device, so that the sample is fully mixed by light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. |
★ Light source power can be continuously adjusted. ★ Shanghai can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Cooling capacity of cooling water circulation device: > 1000W ★ Cooling water circulation device is provided with casters and bottom drainage valve. (=) Large volume reaction part ★ Internal light type gas reactor, with gas filtration, the upper layer can be placed catalyst. |
Cold water circulation device: photochemical reaction meter low temperature constant temperature circulator Reaction camera: 1, Shanghai energy common light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, gas reactor: 1, lifting platform: 1, reflector: 1, ventilation tube: several (m), gas flow meter: 2 to 8, (optional) UV protection eyes: 1, moving cart: 1. |
| BXT-GHX-IV | The BXT-GHX-V type is suitable for the processing of small batch samples. |
● Microcomputer controller, power continuously adjustable. ● The controller is equipped with ammeter and voltmeter for easy observation of current and voltage changes. ● Microcomputer timer, can be timed step by step. ● Internal light source, full light. ● Equipped with eight-position magnetic stirring device, so that the sample is fully mixed by light. ● Double-layer quartz cold trap, which can be passed into the cooling water circulation to avoid excessive temperature damage of the light source. ● There are 2 special sockets on the left side of the box for the lamp source in the box and the plug of the stirring reactor. ● Equipped with movable trolley, easy to move or fix. ●BXT-GHX-V type is suitable for small batch sample processing. ● The main machine is equipped with temperature protection, and the lamp is automatically extinguished when the temperature exceeds 50° |
★ Light source power can be continuously adjusted. ★ Can be integrated light source controller, can be used for mercury lamp, xenon lamp, gold halide lamp and other light sources. ★ Mercury lamp power adjustment range: 200~1000W can be continuously adjusted. Photochemical professional controller (500W/1000W optional) ★ Xenon lamp power adjustment range: 100~1000W can be continuously adjusted. ★ Halogen lamp power adjustment range: 200~500W can be continuously adjusted. ★ Quartz test tube specifications: 30ml, 50ml (or customized). ★ Can handle 8 samples at the same time (or customized). ★ The eight-position magnetic stirring device can synchronously adjust the stirring speed of 8 samples, and optionally rotate the stirring reactor at the same time. ★ Cooling capacity of cooling water circulation device: > 1000W ★ Cooling water circulation device is provided with casters and bottom drainage valve, temperature range -20°-100° |
Reaction camera: 1, a total dedicated light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, Eight-position magnetic stirring device: 1 set, quartz test tube: 8 (30ml,50ml optional 8), UV eyes 1, mobile cart: 1. |
| BXT-GHX-V | Cold water circulation device: photochemistry special low temperature constant temperature circulator 1, reaction camera: 1, a total of special light source controller: 1, quartz cold trap: 1, mercury lamp: 1000W1, xenon lamp: 1000W1, gold halide lamp: 500W1, Eight-position magnetic stirring device: 1 set, quartz test tube: 8 (30ml,50ml optional 8), UV eyes 1, mobile cart: 1. |
