Stirring Heated Duplex Stainless Steel Reaction Kettle For Laboratory Distillation

Basic Information
Place of Origin: China
Brand Name: BAXIT
Model Number: S121-100L
Minimum Order Quantity: 1
Price: USD2871.23-5133.41
Delivery Time: 3-7working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 9999units
Detail Information
Model Number: S121-100L Product Material: 304 Stainless Steel Thickness 4mm
Interlayer Volume: 30L Control Governor: Frequency Conversion Digital Display Speed Regulation
Motor Power: 180W
High Light:

Duplex Stainless Steel Reaction Kettle

,

Laboratory Distillation Reaction Kettle

,

Stirring Heated Duplex Stainless Steel Reactor


Product Description

BAXIT Double stainless steel reactor



Principle and characteristic

Atmospheric stainless steel electric heating reaction kettle has the characteristics of rapid heating, high temperature resistance, corrosion resistance, health, no environmental pollution, electric heating stainless steel reaction kettle, no boiler automatic heating, easy to use, cheap and so on. Widely used in chemical, pharmaceutical, food and other industries, the material is 304 stainless steel.

The construction principle and characteristics of the reaction kettle: the reaction kettle is composed of a pot body, a pot cover, a stirrer, a jacket, a supporting and driving device, and a shaft seal device, etc. The material and the opening can be made according to the technological requirements of the user. Heating forms include electric heating, oil heating, gas heating, water heating (or cooling), open flame heating and so on. Jacket form is divided into: jacket type and outer half tube type, jacket oil heating type are provided with a diversion device. Mixing forms are generally paddle type, anchor type, frame type, screw type, scraping type and so on. High speed category has scattered impeller type, turbine type, high shear type, propeller type, for customers to choose according to the process. Transmission form of ordinary motor, explosion-proof motor, electromagnetic speed regulating motor, frequency converter, reducer cycloidal needle wheel type, worm gear type, planet stepless transmission type. The shaft seal consists of ordinary water cooling packing seal, combined PTFE packing seal and mechanical seal. The discharging form has ball valve, lower expansion valve.

Scope of application

Stainless steel reaction kettle is widely used in chemical industry, food, coatings, hot melt adhesive, silicone, paint, medicine, petrochemical production of reaction, evaporation, synthesis, polymerization, saponification, sulfonation, chlorination, nitrification and other process pressure vessels, such as reactor, reaction kettle, decomposition pot, polymerization kettle. The reaction pot is mainly composed of four parts: inner tank, jacket, stirring device and supporting seat (can be used with insulation structure according to the process needs).

Structural performance

The equipment is mainly composed of tank, jacket and stirring system.

1, stainless steel reactor material

The parts in contact with the material are made of 304 or 316L stainless steel, in line with GMP standards.

2, stainless steel reactor accessories

Mixing form multi-purpose frame mixing, to ensure that the material in a short time of uniform harmonization; At the same time, frame type, anchor type, pulp type can be selected according to the need

Seal with sanitary mechanical seal, can ensure the pressure in the tank and prevent the tank material leakage caused by unnecessary pollution;

◆ The interface adopts ISO standard fastfitting clamp type, convenient and hygienic;

◆ Sterile respirator, CIP cleaning nozzle, sight mirror, flange, sanitary quick opening manhole, etc

3, stainless steel reaction kettle surface treatment

The inner surface adopts mirror polishing to ensure that there is no sanitary dead Angle. The fully closed design ensures that the material is always in a sterile state. The outer surface can be sandblasted, frosted, cold rolled primary color matte treatment.

Heating and cooling: optional heating method steam, electric heating, heat conduction oil, in order to meet the acid resistance, alkali resistance, high temperature resistance, abrasion resistance, corrosion resistance and other different working environment process needs.

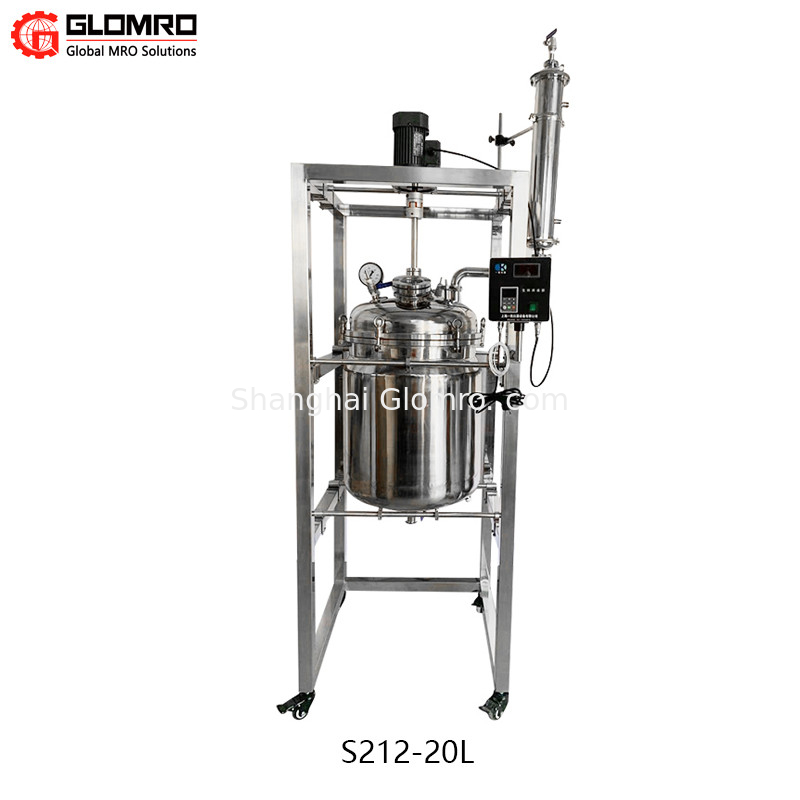

Stirring Heated Duplex Stainless Steel Reaction Kettle For Laboratory Distillation 0

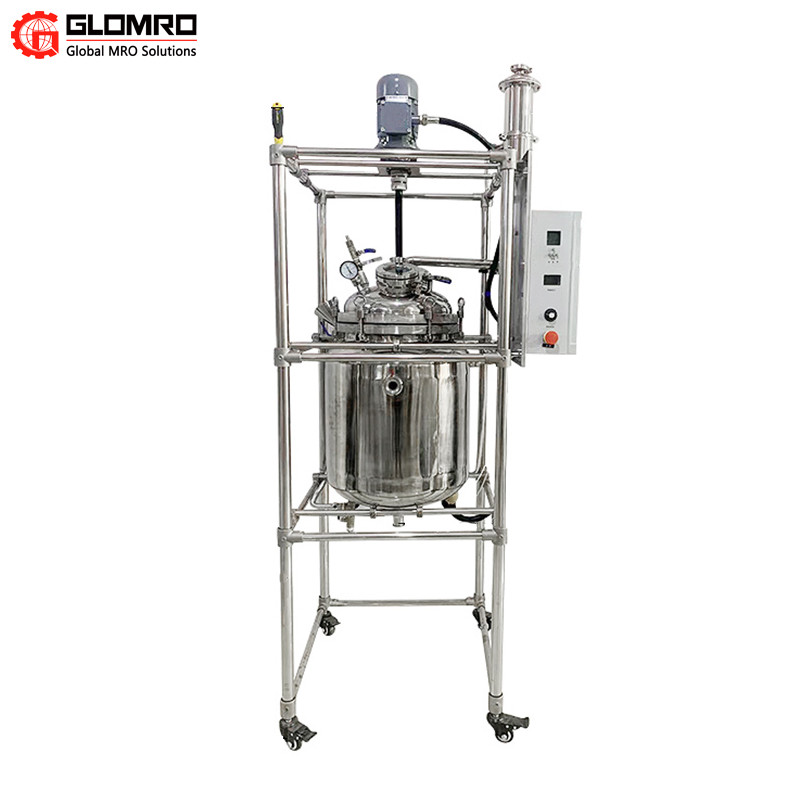

Stirring Heated Duplex Stainless Steel Reaction Kettle For Laboratory Distillation 1

Product name Double stainless steel reactor
Speed regulation mode Variable frequency digital display stepless speed regulation
Kettle body material 304 stainless steel /316 stainless steel
Product power supply 220V/50Hz
Product specification 5L/10L/20L/50L/100L/150L/200L
material 304 stainless steel /316 stainless steel
thickness 4mm (can be customized according to pressure)
controller Frequency conversion digital display stepless speed regulation, 0-600 RPM (digital display speed and kettle body temperature)
Motor power 200w deceleration ratio 3:1
voltage 220V/50Hz
Working pressure High pressure to 1MPa
Vacuum seal The vacuum degree can reach -0.1MPa
Cover caliber Customize according to demand
condenser Stainless steel snake condenser
Discharge valve Ball type discharge valve, discharge completely no accumulation of liquid, discharge port 450mm high from the ground
Stirring paddle 316 stainless steel screw mixing paddle, mixing rod diameter 20mm
frame Stainless steel (replace 304/316 as needed)



Model number S121-10L S121-20L S121-30L
Product material 304 stainless steel thickness 4mm 304 stainless steel thickness 4mm 304 stainless steel thickness 4mm
Interlayer volume 3L 6L 10L
Control governor Frequency conversion digital display speed regulation Frequency conversion digital display speed regulation Frequency conversion digital display speed regulation
Motor power 120W 180W 180W
Motor speed 0-600 RPM /min 0-600 RPM /min 0-600 RPM /min





Model number S121-50L S121-100L
Product material 304 stainless steel thickness 4mm 304 stainless steel thickness 4mm
Interlayer volume 16L 30L
Control governor Frequency conversion digital display speed regulation Frequency conversion digital display speed regulation
Motor power 180W 180W
Motor speed 0-600 RPM /min 0-600 RPM /min



Model number S121-150L S121-200L
Product material 304 stainless steel thickness 4mm 304 stainless steel thickness 4mm
Interlayer volume 45L 65L
Control governor Frequency conversion digital display speed regulation Frequency conversion digital display speed regulation
Motor power 180W 180W
Motor speed 0-600 RPM /min 0-600 RPM /min
