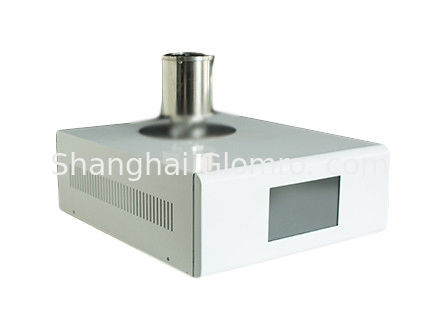

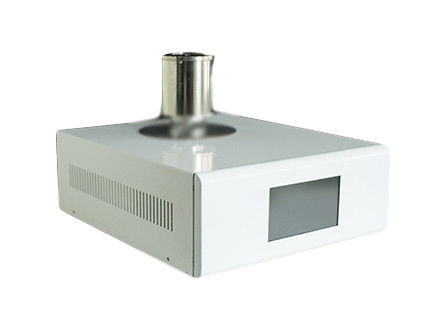

Crystallization Melting Differential Thermal Analyzer

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE,ISO
Model Number: BXT-DTA1150
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Temperature Range: Room Temperature ~ 1350 ℃ Measure Range: 0 ~ ± 2000μV
DTA Accuracy: 0.01μV Heat Rate: 1 ~ 80 ℃ / Min
Gross Weight: 45kg Package Size: 60X53X50 Cm
High Light:

Crystallization Differential Thermal Analyzer

,

Enclosed Differential Thermal Analyzer

,

Dehydrogenation Differential Thermal Analyzer


Product Description



Product description:

Differential thermal analysis is a technique for measuring the temperature difference and temperature relationship between a substance and a reference substance under a program-controlled temperature. The differential thermal analysis curve describes the relationship between the temperature of the sample and the reference (ΔT) as a function of temperature or time. In the DTA test, the change in sample temperature is caused by the endothermic or exothermic effect of the phase transition or reaction. Such as: phase transformation, melting, crystal structure transformation, boiling, sublimation, evaporation, dehydrogenation reaction, fracture or decomposition reaction, oxidation or reduction reaction, destruction of lattice structure and other chemical reactions.



Instrument Features:



1. Fully enclosed metal furnace body design structure greatly improves the resolution.

2. Using professional alloy sensor, it is more resistant to corrosion and oxidation, and the sensor has high sensitivity.

3. Perfect two-way atmosphere control system.

4. Equipped with standard materials.

5. The operation is more convenient and supports self-recovery connection function.

6. Real-time display of the status and data of the instrument.



Technical Parameters:

Temperature range room temperature ~ 1150 ℃
Measuring range 0 ~ ± 2000μV
DTA accuracy 0.01μV
Heating rate 1 ~ 80 ℃ / min
Temperature resolution 0.1 ℃
Temperature accuracy ± 0.1 ℃
Temperature repeatability ± 0.1 ℃
Temperature control

temperature increase: program control, parameter adjustment can be made as required

Constant temperature: Program control Constant temperature time can be set arbitrarily

Furnace structure The furnace body adopts a top-open cover structure, which replaces the traditional lifting furnace body, with high accuracy and easy operation.
Atmosphere control automatic switching of internal programs
Data interface standard USB interface, supporting data cable and operating software
Display mode 24bit color 7 inch LCD touch screen display
Parameter standard Equipped with standard, with one-button calibration function, the user can correct the temperature by himself
Baseline adjustment users can adjust the baseline by the slope and intercept of the baseline
Working power AC 220V 50Hz
