ZYSP-2 Needle Flame Horizontal Vertical Burning Tester

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-232
Minimum Order Quantity: 1SET
Packaging Details: 1160mm*600mm*1310mm
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 100+sets+5days
Detail Information
Place Of Origin: Shanghai, China Model Number: BXT-3137
Certificate: CE Power Supply: AC220V
Product Size: 1160mm*600mm*1310mm Main Material: Stainless Steel
Weight: 100kg Function: Testing The Flame Retardancy Of Plastics
High Light:

Horizontal Vertical Burning Tester


CE Needle Flame Burning Tester


ss304 Vertical Burning Tester

Product Description

Needle flame and horizontal vertical test machine

Product introduction

SPZY-2 horizontal and vertical and needle-flame combustion machine, which fully meets the national standard and related new UL and IEC standard equipment, is the only original instrument on the market that neutralizes two different test methods. In addition to the great originality of the device itself, the instrument auto-ignites and automatically counts time. At the same time, the horizontal and vertical combustion pattern clips are controlled by the motor and can be automatically moved up and down or left and right without artificial hand dialing.

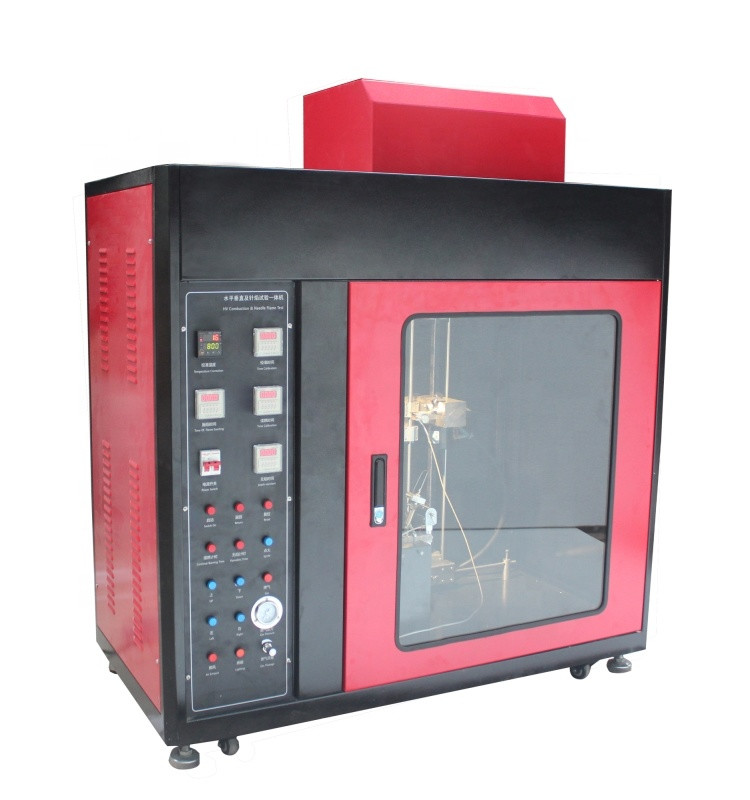

ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 0

Technical parameters

Needle flame section

Needle burner internal hole 0.5mm ± 0.1mm, outside diameter ≤ 0.9mm, length ≥ 35mm
Burner flame angle 0-45° (arbitrary adjustment)
Burning time 0-999.9s ± 0.1s can be adjusted freely (Automatic flame advance and retreat, no hands-on operation)
Holding time 0-999.9s ± 0.1s, automatic recording, manual pause
needle height greater than 35mm (inner diameter 0.5, diameter 0.9)
Combustion gas 95% butane gas (bottled liquefied petroleum gas may be used)
Temperature test range 0~1000°C
Flame temperature requirement time from 100°C±2°C to 700°C±3°C within 23.5 seconds±1 second
Temperature thermocouple 0.5mm imported armored (K type) thermocouple
Heat transfer copper block 4.0x6.0mm

Horizontal vertical test section

Ambient temperature room temperature ~ 40 °C; Relative humidity: ≤ 75%
Supply voltage and power 220V±10% 50HZ power 150W
Bunsen burner automatic ignition time any setting
Bunsen burner inner diameter 9.5mm±0.5mm
Air source Liquefied petroleum gas (industrial methane gas during arbitration)
Flame spraying time 0~999.9S (adjustable)
After flame time 0~999.9S (adjustable)
Residual time 0~999.9S (adjustable)
Burning angle 0°, 20°, 45° selectable
Flame height 20mm ~ 175mm adjustable
Flame temperature (100-1000) °C adjustable
Gas flow Adjustable gas flow rate 105ml/min-1000ml/min
Time Devices Accurate to 0.5S

Design criteria

Horizontal vertical burning test part design GB: GB-T2408-2008 "Plastic combustion performance test - horizontal method and vertical method"

Horizontal vertical burning test section applicable standards: UL94-2006, GB-T 5455, GB-T13488, GB-T5169IEC60695-11-3, IEC60695-11-4, IEC60950-1, IEC695-2

Needle flame test equipment National standard: GB5169.5-2008 Fire hazard test for electric and electronic products Part 5: Test flame Needle flame test method Apparatus and confirmation test

GB4706.1-2005 General requirements for safety of household and similar electrical appliances

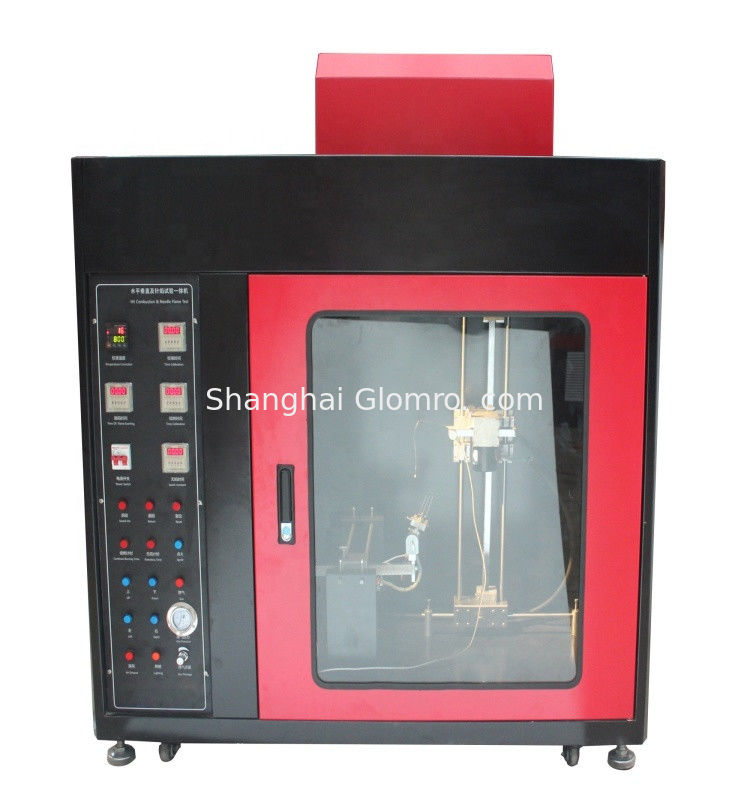

ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 1










Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 2

Our Services


If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult

ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 3ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 4ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 5ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 6ZYSP-2 Needle Flame Horizontal Vertical Burning Tester 7

Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!



Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.

Q:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
