| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | GLO-8516 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 WORK DAY |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10SET/DAY |
| Drop Height Error: | ±10mm | Power Supply: | AC380V 50HZ |
|---|---|---|---|
| Max Weight: | 80Kg | Size Of Test Bench: | 1700*1200*2315mm |
| Pallet Dimension: | 180*180mm | Rise Speed: | 90cm/min |
| Highlight: | lab testing instruments,lab testing equipment |
||
Application :

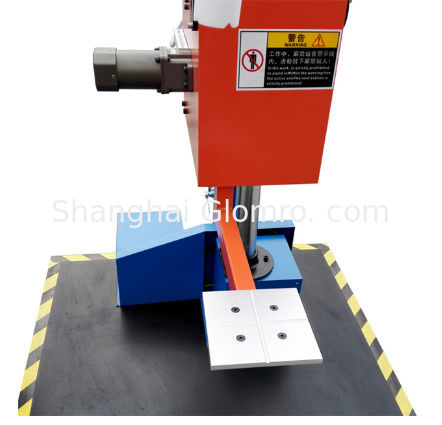

1. Single wing drop impact tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
2. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Features :
Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.Damping screw lifting mechanism, preventing drop institution unexpectedly glide.Pneumatic automatic chain, preventing swing arm unusual break away.Extensible support bracket and baseboard.
Specification :
| Model | GLO-8516 |
| Drop height range(mm) | 300---1500/300----2000 |
| Specimen max.weight(kg) | 85 |
| Specimen max. size(mm) | 800*800*800 |
| Drop mode | Freedom |
| Machine Dimension(mm) | 1500*1000*2150/1700*1200*2750 |
| Machine weight | 700kg |
| Power supply | AC380V 50Hz compressed air 0.5~0.7Mpa |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 |
1. Aluminium box and carton box, careful and tight package, make sure the package is intact
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers' consultation.
2. Middle service
-- Fullfill customer's request:
-- Payment method depends on customer.
-- Promptly production and delivery
-- Can provide invoice value if you want to decrease your tax.
3. After sale service
-- One year warranty service and all life maintenance.
-- Technical Egineer are avalible for oversea trainning.
-- Remote control technical consult
