Power: | Electronic | Usage: | Plastic Testing Machine |
---|---|---|---|
Product Name: | Melt Indexer Price,melt Flow Index Tester | Temperature Range:: | RT~+400℃ |
Standard:: | BS.EN.ASTM | Function:: | Plastic Melt Flow Index Tester |
High Light: | laboratory testing machines,lab testing equipment |

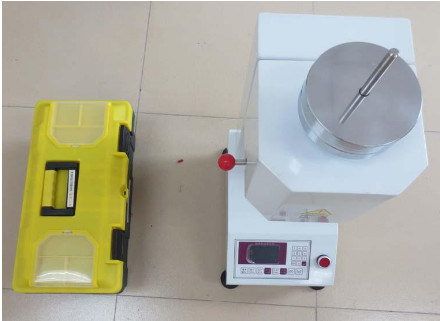

Melt Indexer Price,Melt Flow Index Tester
1. The heating cylinder is made of Hastelloy to avoid oxidizing and rusting at the high temperature (up to 400-500 degrees) for a long time.
3.Dual sensor configuration, precise temperature control, better temperature gradient, longer life
4.According to national standard requirements, add four minutes after the addition of countdown function
5.Stainless steel weight (optional)
6. After the boot can directly display the last test conditions, to avoid each user
Reset test parameters to reduce operator workload
7. The maximum temperature of up to 450 ~ 500 degrees (optional, special instructions when ordering)
8.Can be long-term testing of corrosive plastic and non-destructive instrument accuracy, such as the entire Department of fluorine plastic (for special materials, please specify when ordering) and other full-line fluoroplastics.
Main Features
1. Faster heating rate, minimal overshoot
2. High temperature accuracy
3. After the filling, it can quickly return to a constant temperature
4. Test parameters are calibrated and corrected for convenience
5. Can use manual, automatic cutting test method
6. Chinese liquid crystal display
7. Equipped with a printer, print the test results automatically
Technical Parameters
Outlet diameter: | 2.095±0.005 mm |
discharge port length: | 8.000±0.025 mm |
Loading cylinder diameter: | 9.550±0.025 mm |
loading cylinder length: | 152±0.1 mm |
Piston head diameter: | 9.475±0.015 mm |
piston rod length: | 6.350±0.100 mm |
Standard test load (8 levels in total) | |
Temperature range: | conventional room temperature - 400 °C (500 °C optional) |
Constant temperature accuracy: | ±0.5°C |
Display resolution: | 0.1 °C |
Cutting mode: | optional manual or automatic cutting |
Temperature recovery time: | less than 4 minutes |
Print: | Micro Printer Automatic Printout |
Supply voltage: | AC220V±10% 50HZ |
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4.Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5.Good Packaging
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Packaging and Delivery
1. Aluminium box and carton box, careful and tight package, make sure the package is intact.
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 10days
