Rubber Products Laboratory Testing Equipment / Ozone Aging Test Chamber

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: GLO-100
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 WORK DAY
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Piece/Pieces per Month Ozone aging test chamber
Detail Information
Usage: Auto Testing Machine Product Name: Ozone Aging Test Chamber
Application: Environmental Test Chamber Material: C304 Stainless Steel
Temperature Fluctuation: ±0.5°C (at No Load) Display Mode: Touch Screen
High Light:

lab testing instruments


lab testing equipment

Product Description

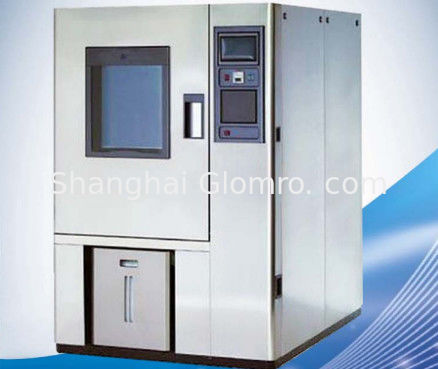

Rubber Ozone Aging Test Chamber Environmental Thermal Aging




Ozone aging test box for Rubber Products is applicable to test rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation jacket, etc. Exposed to a airtight constant-humility testing chamber filled with air of static tensile deformation, the samples will be tested to a scheduled time until cracks appear on its surface or other property changes to define the ozone resistance of rubber.



1. External chamber:Arc design,nice shape,surface electrostatic spray.

2. Inner chamber:SUS#304 stainless steel, anti-corrosion and water resistance. The door of a reasonable position to set up a transparent window (220*320mm),for the changes in observation indoor specimen (lighting inside), which has theadvantages of transparent ,heat insulati on, explosion-proof and so on.

3. Circulation:Siroco fan ,to make the distribution of ozone uniformity. Air duct of wind way is the same direction as the specimen growth. High tensile silicone seal used in between test door and body to ensure the test area closed.

Cooling system: Installed at the bottom, Tecumseh compressor original France.

4. High-quality fixed wheels in the bottom of the meter installation. The control part of the design of the equipment is the right of the device, distribution control device, the control switch, easy to operate, simple, easy to maintain.

5. Heating system: completely independent,nickel chromium alloy electric heating heater.

6. Heater control way :contact cycle pules width modulated,SSR(solid state relays)

7. Output power calculus by microcomputer to control a smooth,reliable



Working camber size 400mm × 450mm × 550mm (depth × width × height)
Ozone concentration range 0pphm to 500pphm (adjustable)
Temperature range RT+10 °C to 60 °C (adjustable)
Ozone concentration fluctuation deviation range ± 10%
Temperature uniformity ±2 °C (at no load)
Temperature fluctuation ±0.5°C (at no load)
Timing range 0 to 999 hours (adjustable)
Power AC220V±10% 50Hz
Host weight 167kg


Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.


1. Pre-service

24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.


2. Middle service

-- Give you best offer

-- Provide discount for many sets order

-- Do customer's request:

-- Choose payment term you convienent.

-- Promptly production and delivery,inform you in time.

-- Can provide invoice value as you like to decrease your tax.


3. After sale service

-- 1 year warranty service and all life maintenance.

-- Technical Egineer are avalible for oversea trainning.

-- Free change for some parts

-- Remote control technical consult

-- Free installation DVD

-- Maintenance plan


Packaging and delivery

Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
