| Place of Origin: | CHINA |
|---|---|
| Model Number: | ASR-5606 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10SET/DAY |
| Brand Name: | AISRY | Test Accuracy: | ±1% |
|---|---|---|---|
| Resolution: | 0.01 | Color: | White |
| High Light: | lab testing instruments,lab testing equipment |
||
Application:

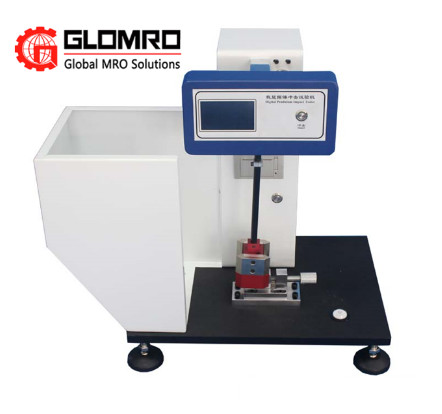

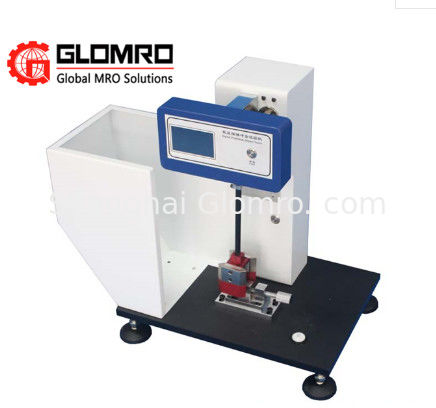

Plastic izod impact test machine is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.Our company digital display cantilever beam impact testing machine have print the test results functions.
Characteristic:
English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.
Designing standard:
GB/T1843, ISO180, GB/T21189, GB/T2611, JB/T8761
Specifications:
| Model: | ASR-5606 |
| Impact speed: | 3.5m/s |
| Pendulum energy: | 11J,5.5J |
| Pendulum up angle: | 150 degree |
| Impact center distance | 335mm |
| Test accuracy: | ±0.1% |
| Resolution: | 0.01 |
| Distance from impact blade to clamp: | 22.0mm±0.2mm |
| Blade fillet radius: | R=0.8mm±0.2mm |
| Energy loss: | 1.0J-2%, 2.75J-1%, 5.5J-0.5% |
| Tester size(L*W*H) | (360*240*680)mm |
1. Aluminium box and carton box, careful and tight package, make sure the package is intact
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers' consultation.
2. Middle service
-- Fullfill customer's request:
-- Payment method depends on customer.
-- Promptly production and delivery
-- Can provide invoice value if you want to decrease your tax.
3. After sale service
-- One year warranty service and all life maintenance.
-- Technical Egineer are avalible for oversea trainning.
-- Remote control technical consult
