BAXIT NWGWB-89 High Temperature Sampling Pump
Product Information:
BAXIT NWGWB-89 high temperature diaphragm sampling pump is an oil-free vacuum pump. It features high temperature resistance and corrosion resistance, supporting continuous stable gas sampling.
Max free flow reaches 9.5 L/min, and the displacement is 7 L/min under 50kPa back pressure. Widely used in CEMS flue gas analysis, VOC online monitoring and industrial emission detection systems.

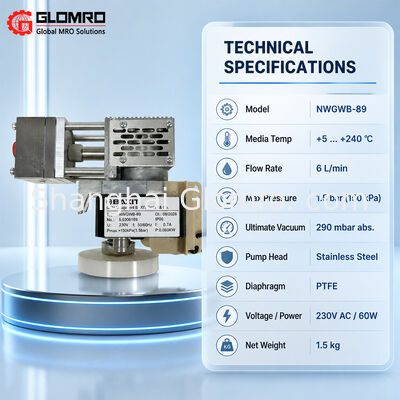

Technical Parameters:
| Name |
High Temperature Sampling Pump |
| Model |
NWGWB-89 |
| Pump head |
Stainless steel |
| Diaphragm |
PTFE |
| Valves |
PTFE |
| Flow rate at atm.pressure |
6L/min |
| Ultimate vacuum |
290 mba abs. |
| Max.operating pressure |
1.5 bar |
| Permissible ambient temperature |
5~40℃ |
| Permissible media temperature |
5~240℃ |
| Voltage |
230V |
| Motor |
Shaded poe motor |
| Frequency |
50 Hz |
| Power P1 |
60 W |
| Imax |
0.7 A |
| Weight |
1.5 kg |

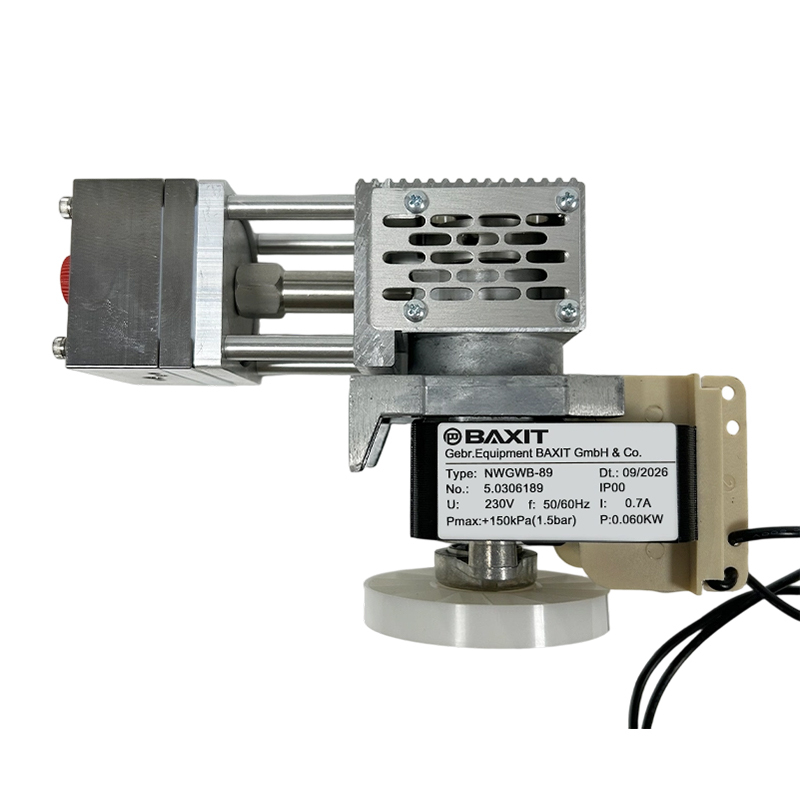

Product pictures:
