2L Capacity Laboratory Spray Dryer Stainless Steel Small Spray Drying Equipment

Laboratory 304 stainless steel mini spray dryer 2L Milk/Fruit juice powder sprayer machine

Product description

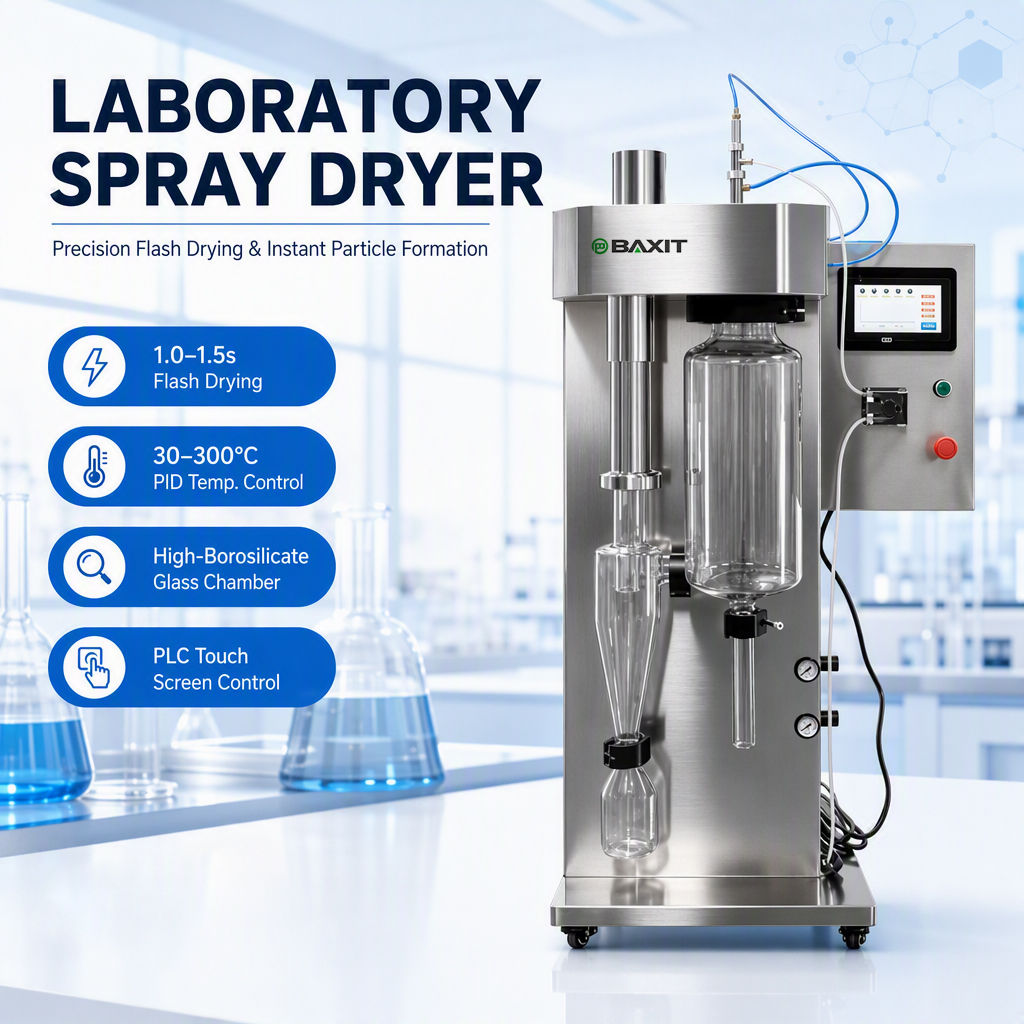

    The experimental spray dryer (small spray dryer) has a compact design and can be placed independently in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, two operating modes, fully automatic or manual monitoring, can be used to facilitate operation and monitoring of the experimental process. It is currently a spray dryer with the smallest volume, the least noise and excellent drying effect.

Applicable scene:

   This product is suitable for the fields of food, medicine, organic and inorganic chemistry, and the development of fuel cells for automotive and marine propulsion.
   It can make milk powder, egg yolk, soy sauce, coffee, starch, protein, hormone, serum, antibiotic, enzyme, flavor extract, wax, dye, detergent, surfactant, pesticide,preservative, synthetic resin, pigment, ferrite , Ceramics, copying powders, magnetic materials, metal powders, photosensitive materials, various industrial medicines,etc.

Machine characteristics

1. Original imported nozzle: high efficiency.
2. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.
3. Fully automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the
touch screen, and the running process is clearly displayed; just press the stop button when shutting down, the machine is automatically safe Shut down.
4. Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the color touch screen is dynamically displayed throughout the experiment.
5. Nozzle cleaner (through needle): when the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be adjusted automatically.
6. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the equipment will not burn out due to misoperation (such as forced shutdown of the fan).
7. The spraying, drying and collecting system is made of transparent high-quality high-borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.
8. Built-in imported oil-free air compressor,:the particle diameter of the powder spray is normally distributed, the fluidity is very good, the noise is very low, less than 60db.
9. Real-time control PID constant temperature control technology: make the temperature control in the full temperature zone accurate, and the heating temperature control accuracy is ±1℃.
10. Air inlet filter: keep the sample pure (for benzene, methanol, ethanol and other materials, it is safer to choose to add a nitrogen device)
11. Feed peristaltic pump adjustment: the feed amount can be adjusted, and the minimum sample volume can reach 50ml.
12. The particle size of the finished dry powder after drying is relatively uniform, and more than 98% of the dry powder is in the same particle size range.
13. Nozzle cleaner (through needle): The sticky material will be automatically cleared when the nozzle is blocked, and the frequency of the through needle can be adjusted automatically.
14. Innovative tower wall purge device: higher material recovery rate.
