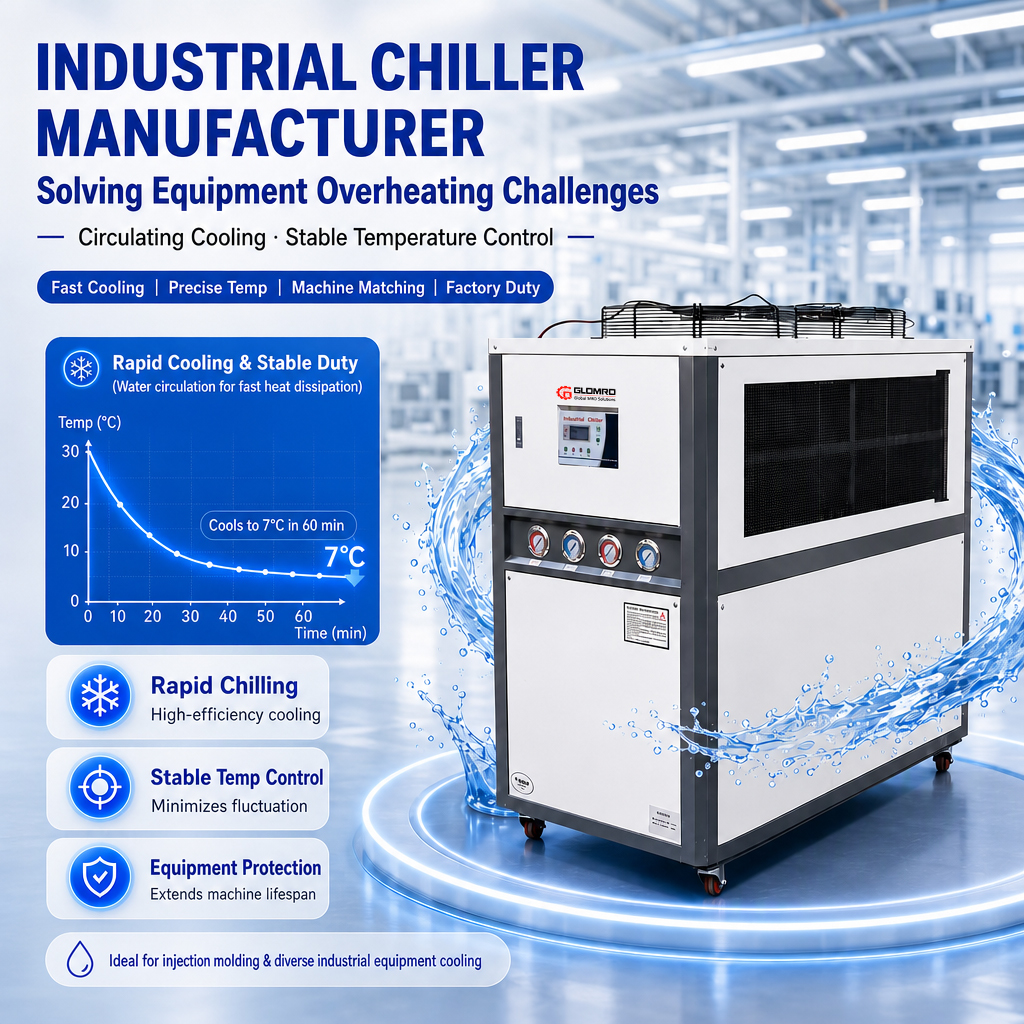

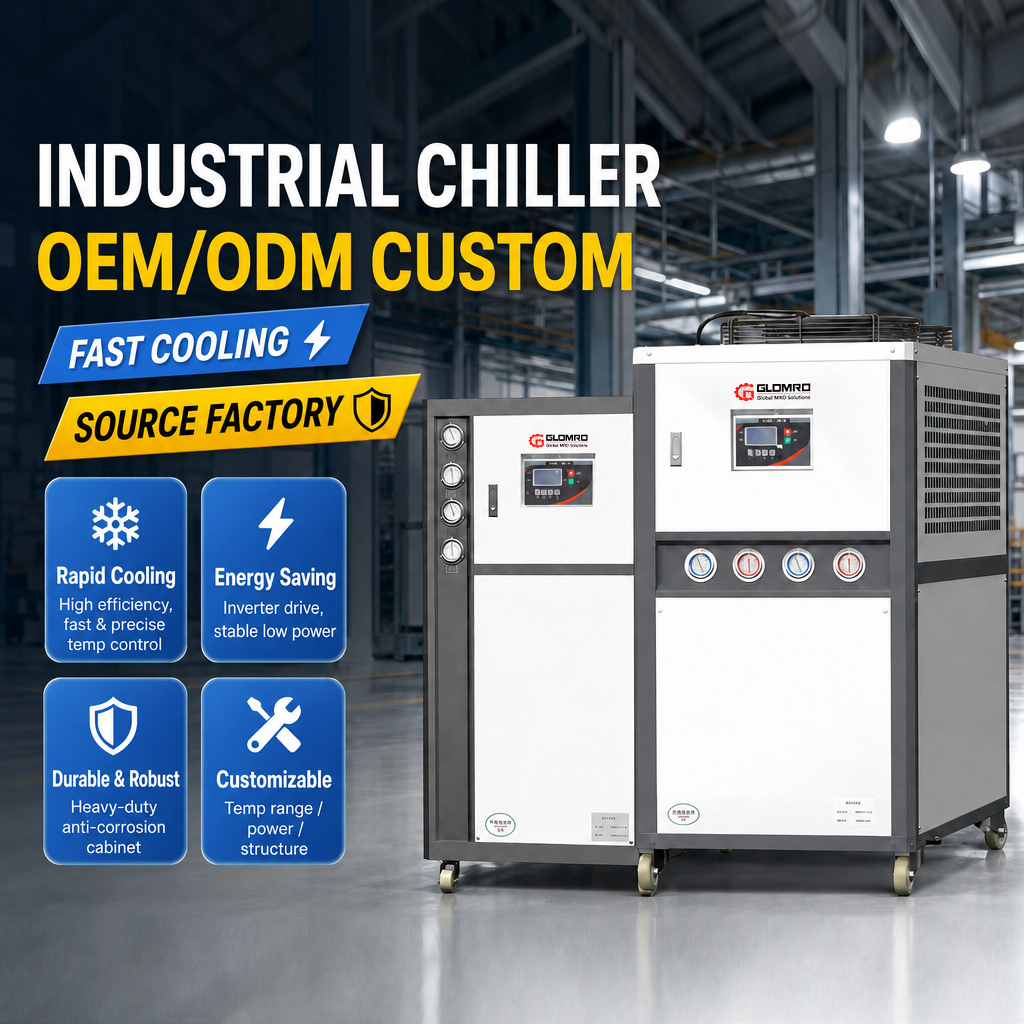

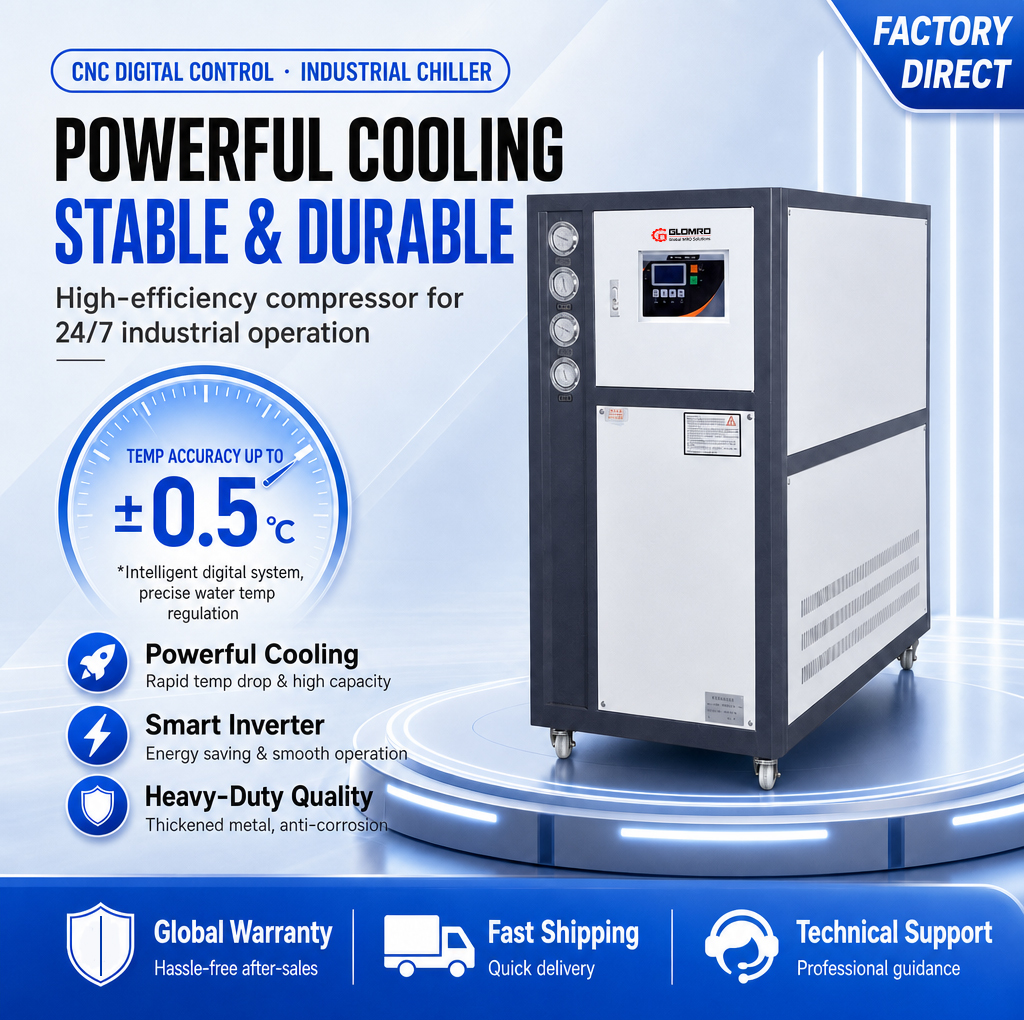

Stable Operation Industrial Water Chiller Air Cooled And Water Cooled Type For Industrial Production Line

Industrial water chillers (air-cooled\water-cooled)

Product Overview:

Industrial chillers are industrial temperature control devices that achieve cooling functions through steam compression or absorption cycles. Their main function is to provide stable and controllable low-temperature coolant for equipment or process media in industrial production processes, ensuring production efficiency, product quality, and equipment safety.

Chillers are mainly composed of core components such as compressors, evaporators, condensers, expansion valves, and control systems. Through the phase change cycle of refrigerants in the system, heat is removed from the process water and discharged to the outside environment. Depending on the different heat dissipation methods, industrial chillers are mainly divided into air-cooled and water-cooled types, and are widely used in temperature control of industrial processes.

Main purpose:

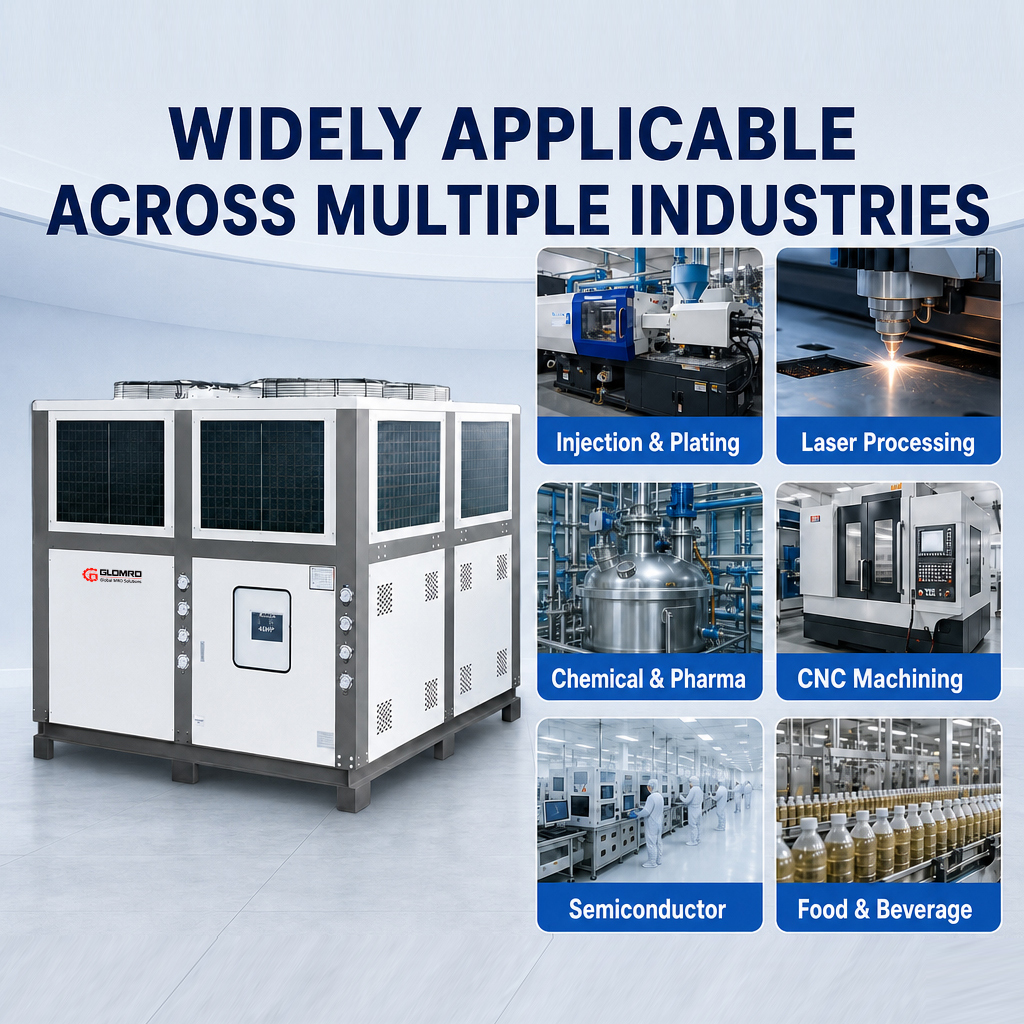

    The core function of an industrial chiller is to provide continuous and stable low-temperature cooling water. Its main applications include:

1. Temperature control: Precisely regulate the temperature of molds, equipment or reaction vessels to prevent product deformation or equipment failure due to overheating.

2. Accelerated shaping: In plastic, packaging and other molding processes, rapid cooling can shorten production cycles and increase production capacity.

3. Removal of reaction heat: In chemical, pharmaceutical and other reaction processes, promptly remove reaction heat to prevent temperature runaway.

4. Equipment operation guarantee: Provide cooling for high-heat equipment such as laser devices, CNC machines and air compressors to extend their service life.

5. Environmental adjustment: Some units can be used for workshop air conditioning or constant temperature and humidity systems to improve the production environment.

Core circulatory system:

1. Refrigerant Circulation (Refrigeration Core)

Compression: The compressor sucks in the low-temperature and low-pressure gaseous refrigerant and compresses it into a high-temperature and high-pressure gas, preparing for heat release.

Condensation: The high-temperature and high-pressure gas enters the condenser and disperses the heat to the environment through air cooling (fan blowing fins) or water cooling (circulating water from the cooling tower). The refrigerant condenses into a high-pressure liquid.

Throttling: The high-pressure liquid refrigerant passes through the expansion valve (or capillary tube) for throttling, resulting in a sudden drop in pressure and a fog-like gas-liquid mixture at a low temperature and low pressure, creating conditions for heat absorption.

Evaporation: The fog-like refrigerant absorbs the heat from the circulating water in the evaporator and vaporizes, reducing the water temperature; the heated gas refrigerant returns to the compressor to complete the cycle.

2. Water Circulation System (Heat Transfer)

The water pump transports the chilled water cooled by the evaporator to the user equipment, absorbing the heat from the equipment and raising the water temperature, which then flows back to the evaporator to be cooled again, forming a closed loop.

Shell-and-tube condenser, achieving efficient heat exchange between refrigerant and water.

3. Electrical Automation System (Stable Operation)

Real-time monitoring of parameters such as temperature, pressure, and flow rate, automatically adjusting components such as the compressor, water pump, and fans to maintain constant temperature, constant flow, and constant pressure output.

It has protection functions such as overload, water shortage, and over-temperature to ensure system safety.
