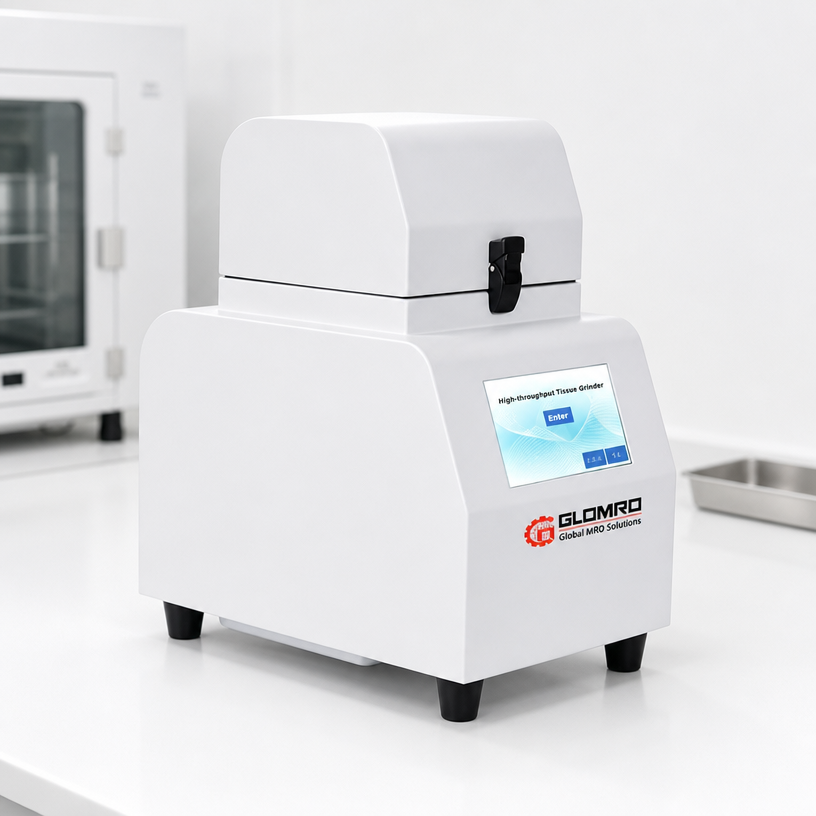

GLO High-throughput Tissue Grinder-- Introduction
Product Overview:

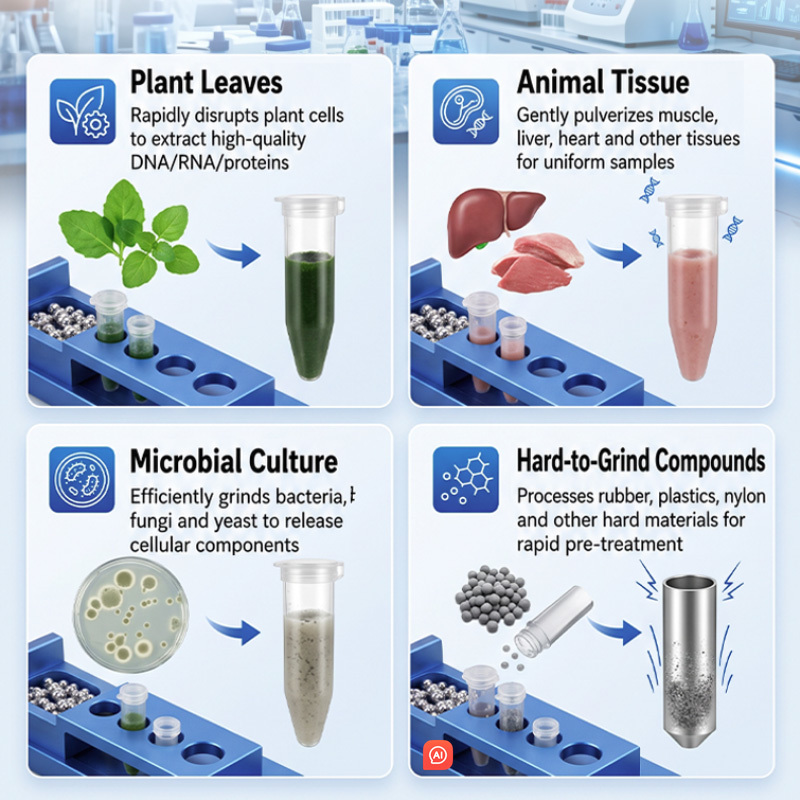

The high-throughput tissue grinder is a specialized, rapid, highly efficient, and multi-tube consistent system capable of extracting and purifying native DNA, RNA, and proteins from any source—including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, and paleontological specimens.
Its all-metal body enhances overall stability and safety. The working chamber features a safety lock to ensure sample security and laboratory safety. There is no cross-contamination, as sample tubes remain fully sealed during the grinding process.
Technical Feature:
Compared with the existing other sample preparation methods, the grinding instrument system has the advantages of wide applicability and high efficiency and flexibility. This system avoids the numerous drawbacks of traditional methods such as grinding, homogenization, and ultrasonic treatment, which are laborious, time-consuming, and inefficient. It can efficiently, quickly, and stably lyse and purify the nucleic acids and proteins of various types of samples.
The working mode of the German innovative grinding instrument, the innovative shock-proof principle, and the innovative running mode of the grinding beads ensure the ideal application scope of sample processing and the instantaneous crushing effect.
| Model |

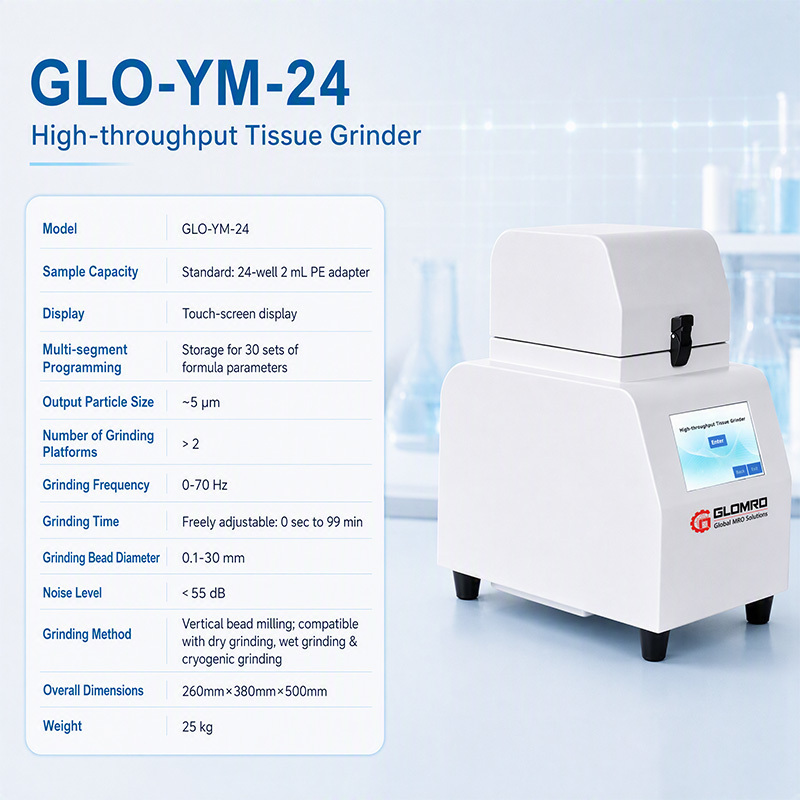

GLO‑YM-24 |

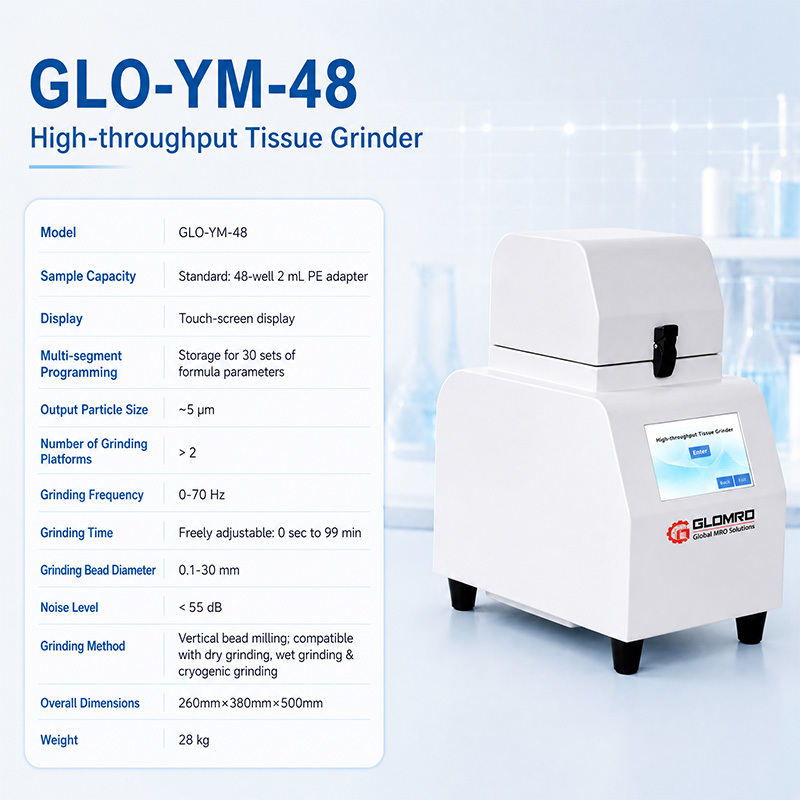

GLO‑YM-48 |
GLO‑YM-64 |
GLO‑YM-96 |
| Sample Capacity |
Standard: 24‑well 2 mL PE adapter.Optional: 2ml×24, 5ml×12, 10ml×8, 15ml×2, 25ml×2 grinding jars |
Standard: 48‑well 2 mL PE adapter.Optional: 2ml×24, 2ml×48, 5ml×12, 10ml×4, 25ml×4, 50ml×2 grinding jars |
Standard: 64‑well 2 mL PE adapter.Optional: 2ml×64, 5ml×12, 10ml×8, 25ml×4, 50ml×2 grinding jars |
Standard: 96‑well 2 mL PE adapter.Optional: 2ml×24, 2ml×48, 2ml×96, 5ml×12, 10ml×4, 25ml×4, 50ml×2, 100ml×2 grinding jars |
| Display |
Touch‑screen display |
| Multi‑segment Programming |
Storage for 30 sets of formula parameters |
| Anti‑vibration Principle |
Innovative German‑designed grinding instrument, advanced anti‑vibration mechanism, 3‑dimensional motion (vertical + horizontal). Unique bead movement delivers ideal sample preparation and instant pulverization performance. |
| Feed Size |
Adjustable according to adapters |
| Output Particle Size |
~5 μm |
| Number of Grinding Platforms |
＞2 |
| Grinding Frequency |
0‑70 Hz |
| Grinding Time |
Freely adjustable: 0 sec to 99 min |
| Grinding Bead Diameter |
0.1‑30 mm |
| Grinding Bead Material |
Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand, etc. |
| Acceleration |
Reaches high speed within 2 seconds |
| Noise Level |
＜55 dB |
| Grinding Method |
Vertical bead milling; compatible with dry grinding, wet grinding & cryogenic grinding |
| Overall Dimensions |
260mm×380mm×500mm |
260mm×380mm×500mm |
340mm×380mm×600mm |
340mm×380mm×600mm |
| Weight |
25 kg |
28 kg |
35 kg |
35 kg |
| Additional Features |
Fastening device with automatic centering; safety interlock during operation for full‑range protection. Grinding assembly materials: hard steel, PTFE (Teflon), zirconia. |
