GLO9800G Pro 15m Depth 10km Length Underground Pipeline Detector with Built-in Bluetooth & GPS

Product Description:

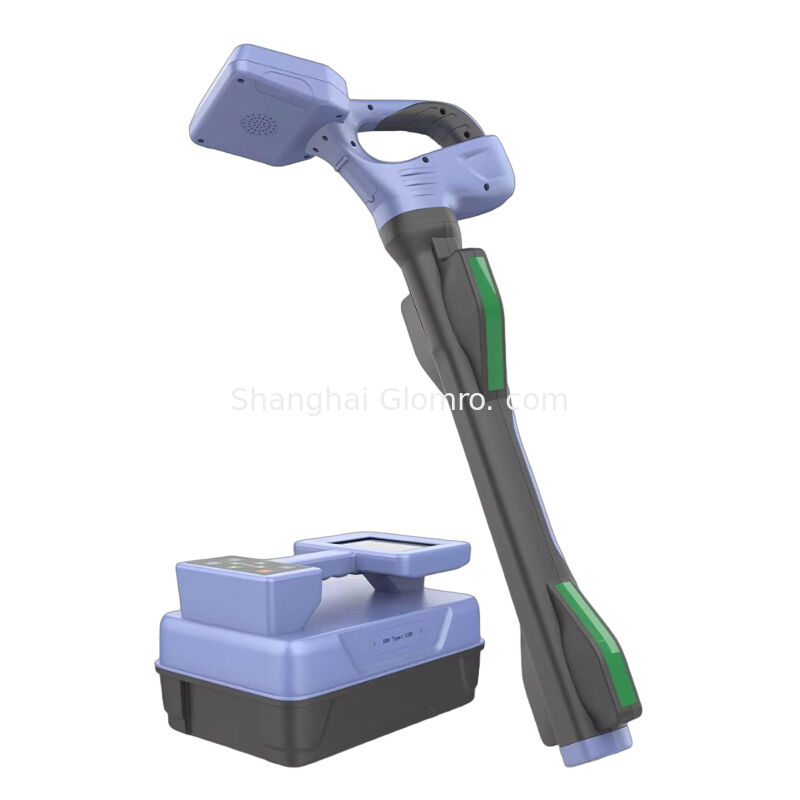

This professional underground pipeline and cable detector system consists of a high-performance receiver and transmitter, designed for utility maintenance, construction, and engineering teams. It integrates multi-frequency pipeline detection, precise cable identification, and optional fault location functions, enabling efficient tracing, depth measurement, and current monitoring of buried metallic and non-metallic pipelines, as well as power/communication cables. With multiple detection modes (direct connection, inductive coupling, induction) and intuitive touchscreen operation, it delivers reliable performance in complex underground environments, supporting long-distance detection up to 20km and depth measurement up to 20m, while adhering to international safety standards (IEC61010 series).

Main features of this machine

1)Multi-Frequency Detection: Supports 12 active frequencies (577Hz–201kHz) plus 50/60Hz power frequency passive detection, ensuring compatibility with various cable and pipeline types.
2)Flexible Detection Modes: Offers peak, null, and audio methods for pipeline detection, with three input methods (direct connection, inductive coupling, induction) to adapt to different field conditions.
3)High Precision Positioning: Delivers horizontal positioning accuracy of ±5% (0–3m buried depth) and ±15% (3–20m buried depth), with clear signal visualization via classic, full-screen, and curve display modes.
4)Intelligent Cable Identification: Uses flexible clamps to identify 1–10 cables simultaneously, with built-in calibration and directionality checks for reliable results.
5)Long-Range & Durable: The receiver can detect cables up to 20km (direct connection) and features a 6400mAh battery; the transmitter provides 10W adjustable power with 12800mAh capacity, both with robust lithium-ion power supplies.
6)User-Friendly Design: Equipped with large capacitive touch LCDs (4.3" receiver / 5.6" transmitter) and intuitive interfaces, plus overload/short-circuit protection for safe operation.
7)Optional Advanced Functions: Supports A-frame ground fault location and stethoscope-based cable identification, expanding application scenarios for utility troubleshooting.
8)Compliance & Safety: Meets IEC61010 and IEC61326 standards, ensuring safe use in industrial and construction environments.
