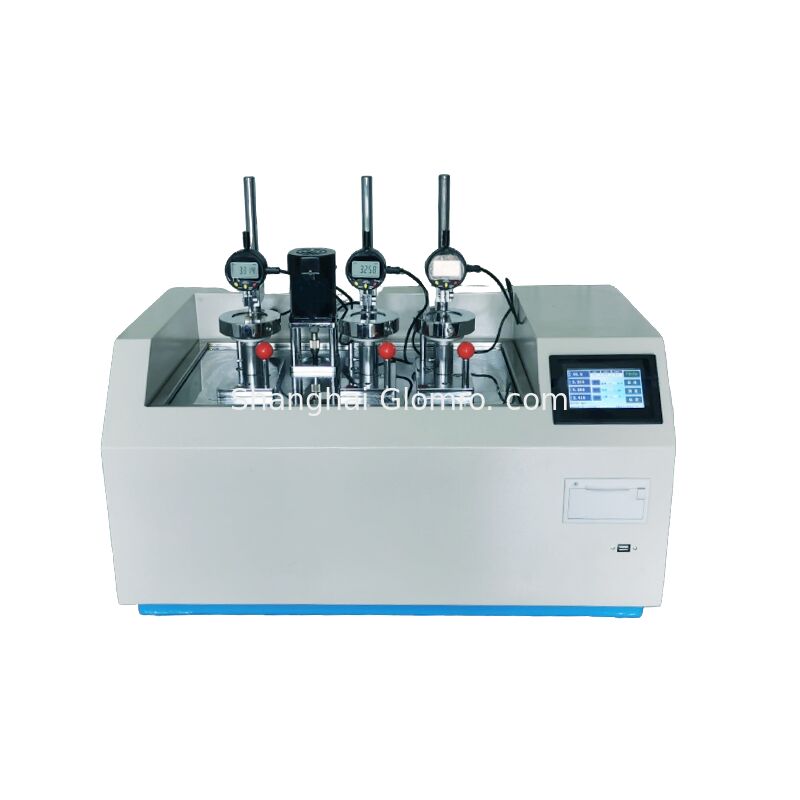

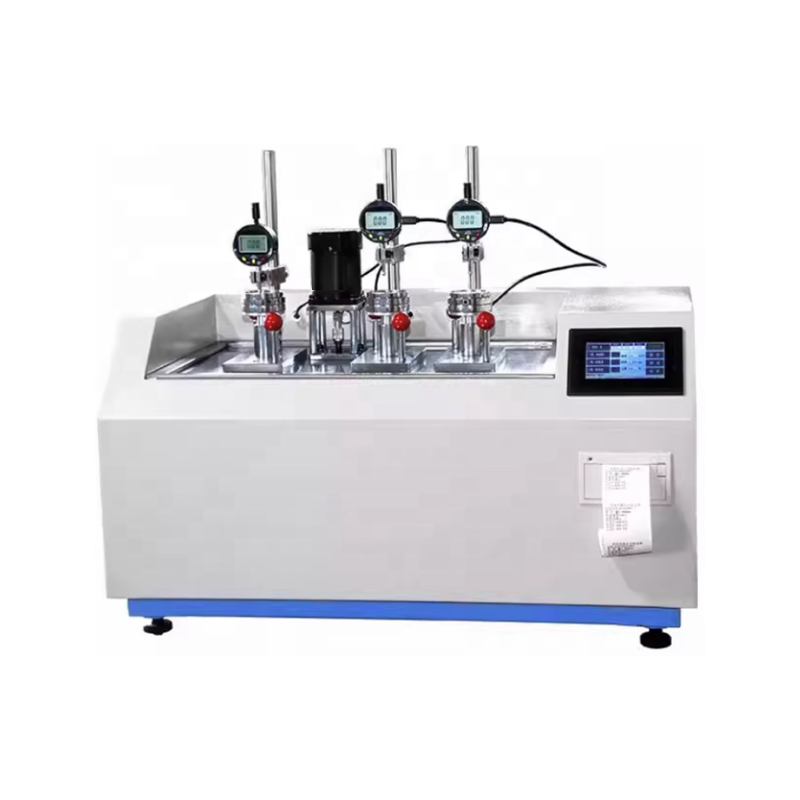

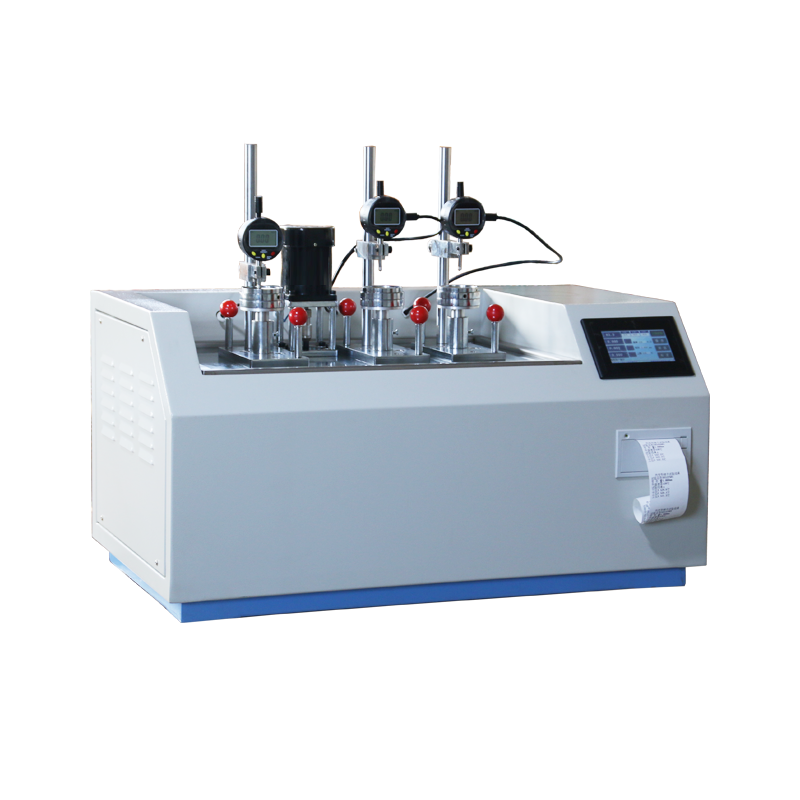

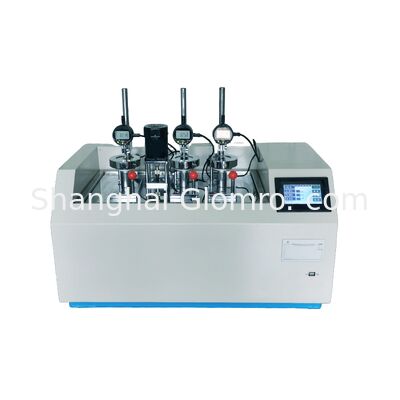

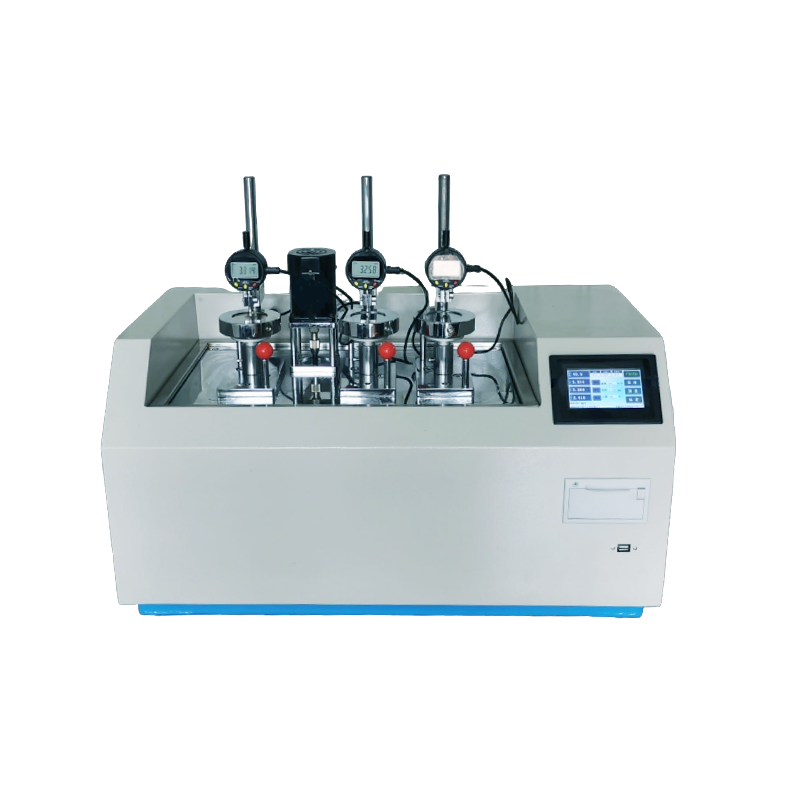

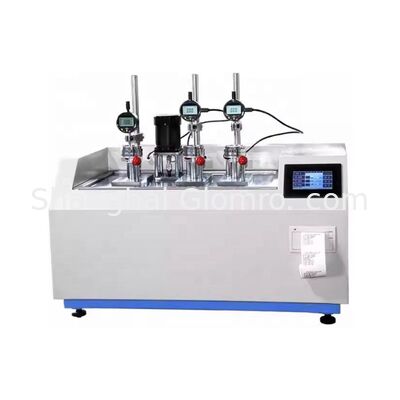

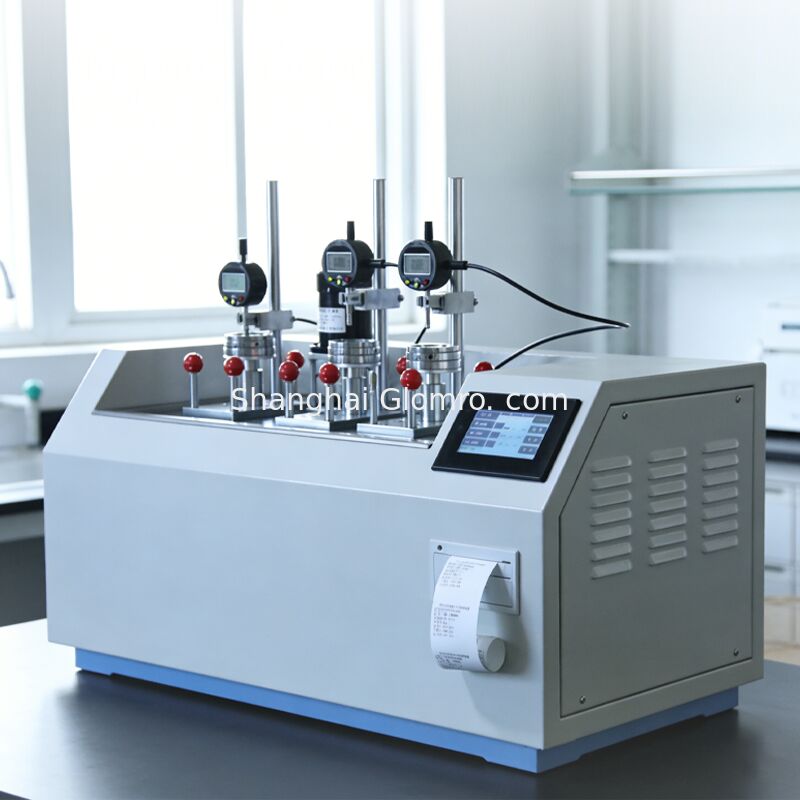

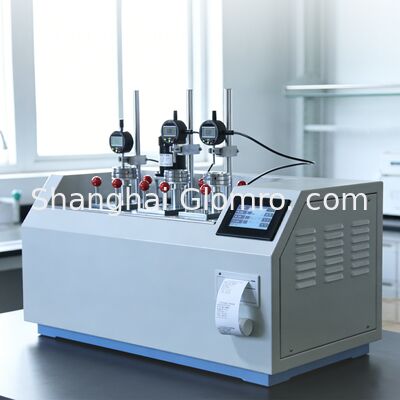

Thermal Deformation Vicat Softening Point Temperature Tester
The heat distortion and Vicat softening point temperature tester is a core thermal performance testing device in the field of polymer materials. It can simultaneously measure the heat distortion temperature and Vicat softening point temperature of materials, and is widely used in the assessment of heat resistance, research and development, and quality control of plastics, rubber, composite materials, etc.
![]()
![]()
| Name | HD & Vicat Softening Point Tester | HD & Vicat Softening Point Tester( Mic-controlled ) |
| Model | GLO-300A | GLO-300E |
| Control mode | Touch Screen Control | Touch Screen Control PC Software Control |

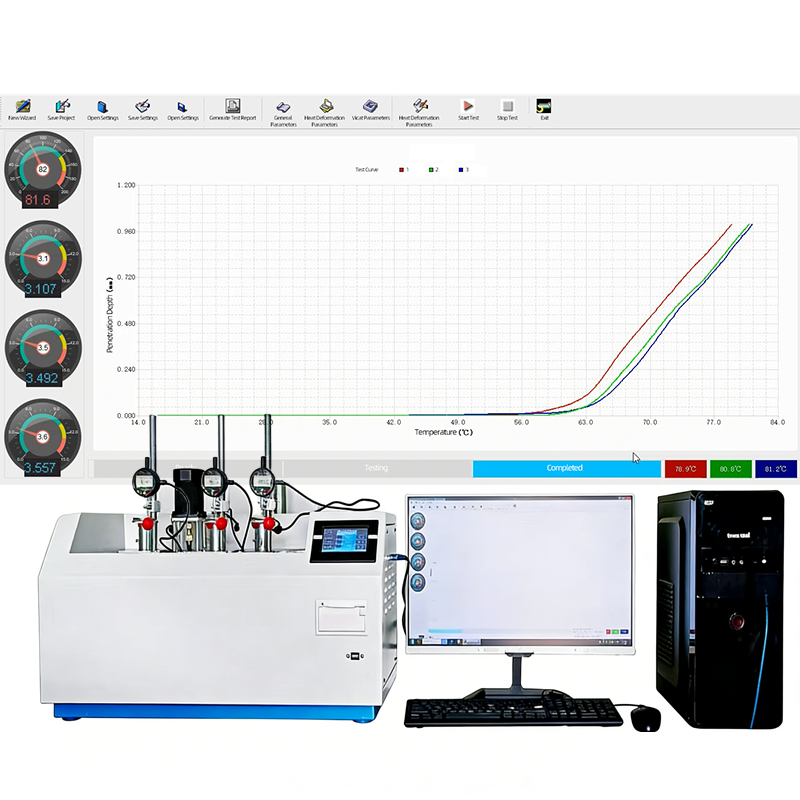

| Test Report | Data Export & Printing Supported | PC can generate graphical curve data, Data Export & Printing Supported |
| Preprocessing function | / | constant temperature pre-processing, static pre-processing |
| Temperature control range | Ambient -300℃ | |
| Ramp rate | 50℃/h&120℃/h | |
| Temperature measurement methods | PT100Sensor,Center Point Measurement | |
| Temperature resolution | 0.1℃ | |
| Temperature accuracy | ±0.5℃ | |

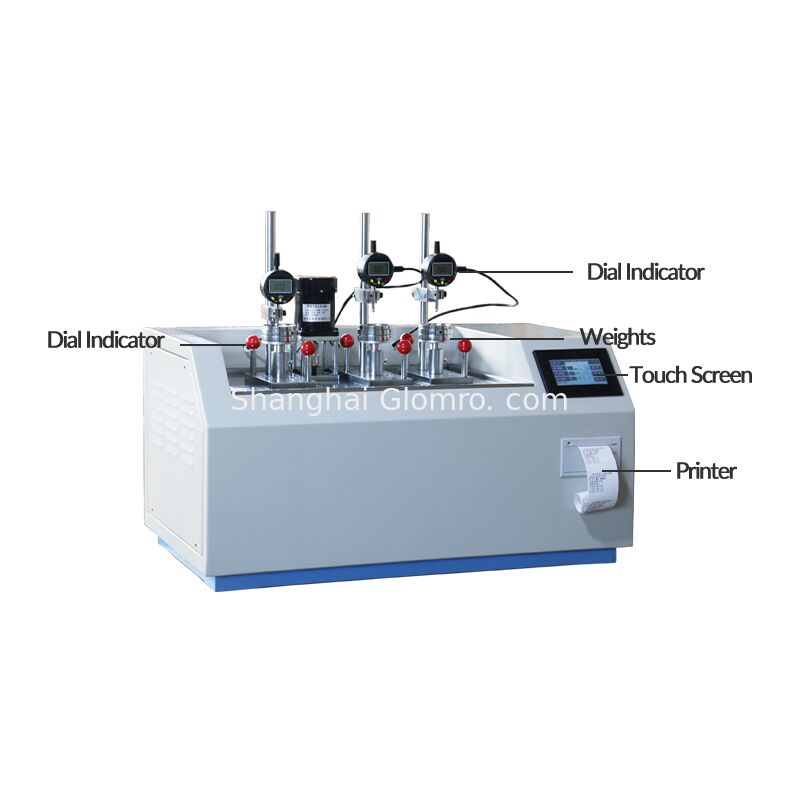

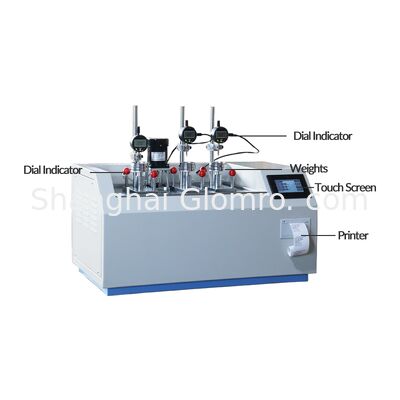

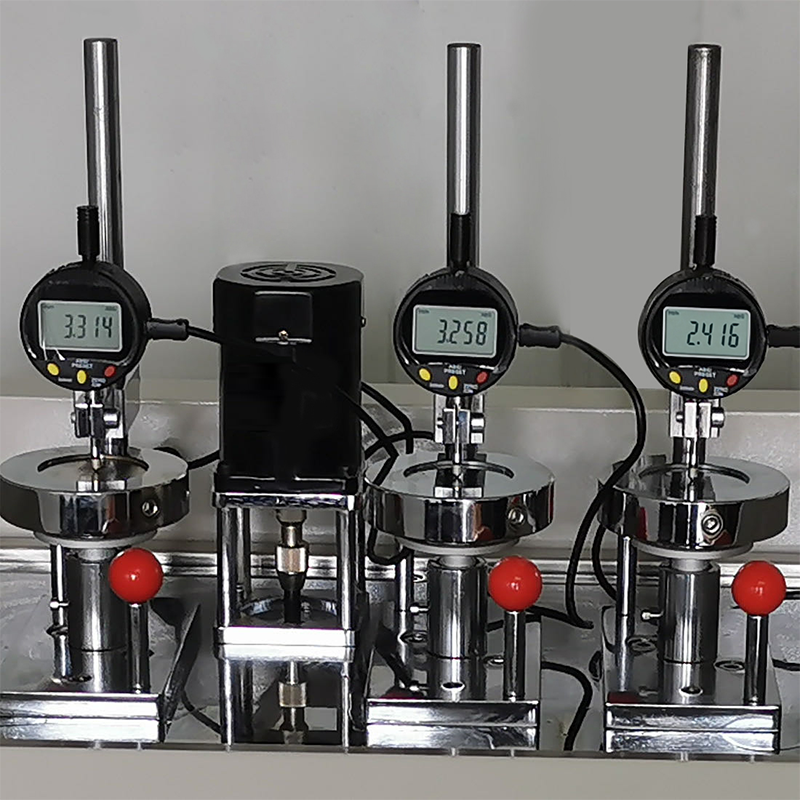

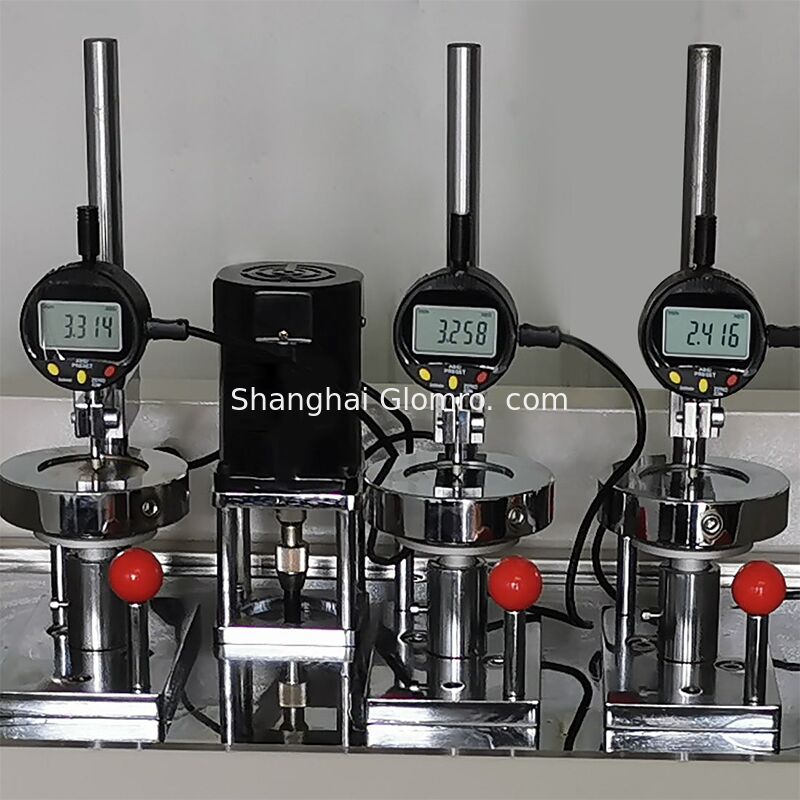

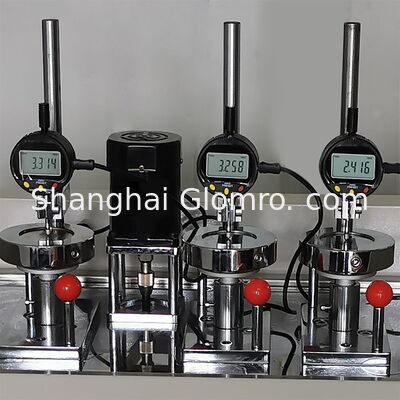

| Deformation measurement methods | Digital dial indicator or digital micrometer | |
| Deformation measurement range | 0-12.7mm | |
| Deformation accuracy | 0.005mm(0.0005mm) | |
| Deformation resolution | 0.01mm(0.001mm) | |
| Counter weight | 2000g,1000g,500g,200g,100g,50g, 3 sets | |
| Test position | 3 | |
| Heat Deformation Test Span | 64mm,100mm | |
| Heating medium | Methyl Silicone Oil (Applicable for room temperature to 300℃, viscosity required below 100 CS)or Transformer Oil (Used within 200℃) | |
| Oil tank volume | 13L | |
| Heating power | 3KW | |
| Power supply | 220V±10% 15A 50Hz | |
| Cooling method | Natural or water cooling | |
| Dimensions | 745×430×410mm | |
| Net weight | 70kg | |
