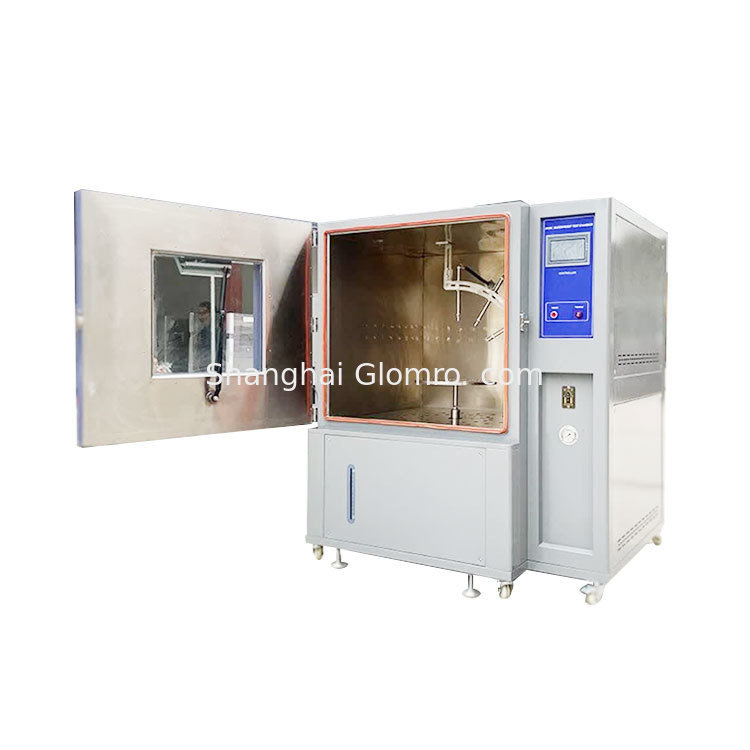

Rain test chamber
The rain test chamber is an environmental reliability testing equipment specifically designed to simulate the natural rainfall environment. By artificially recreating different intensities, angles, and rainfall volumes of rainfall scenarios, it tests and evaluates the waterproof performance of products. Its core value lies in helping enterprises identify potential sealing defects and performance degradation issues of products in the rain environment during the product development, production inspection, and quality control processes. This helps enhance the reliability and safety of the products in actual use, and it is widely applied in various fields such as electronics and electrical engineering, automotive manufacturing, aerospace, medical devices, outdoor lighting, etc.
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
| Swing pipe water spray hole diameter |
∅0.4mm |
| Water spray hole spacing |
50mm |
| Spray ring radius |
300(mm) |
| Spray pipe diameter |
∅16mm |
| Swing pipe swing angle range |
±60°±90° |
| Swing pipe spray angle |
±60°±90° |
| Swing speed adjustment |
0~30RPM/min(Adjustable) |
| Rain test water pressure |
0.1~6bpa Adjustable |
| Water flow supply volume |
At 4 bar pressure, the flow rate reaches 39.2 L/min |
| Test bench speed |
0~20rpm/min(Adjustable) |
| Test bench area |
∅400mm,Load capacity is 15 kg, and the sample rack is adjustable from 0-300 mm |
| Lead test hole |
There are power lead test holes on the box body, allowing for external power connection. Additionally, the spray lamp lighting time can be adjusted |
| Box structure |
1. Both the inner and outer enclosures of the test chamber are made of SUS304 stainless steel plates. The surface of the outer shell is treated with sandblasting to create a textured finish, while the inner enclosure is a high-quality stainless steel mirror plate.
2. The spray water pipes are also made of stainless steel.
3. The working chamber and all other parts in contact with water are made of stainless steel or copper materials. |
| Control system |
1. Speed control device: Both the swing pipe and the rotating disc for speed control use imported frequency converters.
2. Main configuration: Water storage tank, water pump, pressure reducing and diversion device, pressure gauge, flow meter, spray pipe assembly, swing pipe swing amplitude driving mechanism, worktable rotation mechanism, electrical control system, visible tempered glass door, deceleration mechanism, etc |
| Widely used |
Technical parameters: The climate environment has a significant impact on the aging of products, the fading of pigments, and the corrosion of metals. Therefore, aging tests are receiving increasing attention in industries such as rubber, plastics, chemicals, automobiles, and textiles. There are many factors in the climate environment, including sunlight exposure, temperature, humidity, and rain exposure. The waterproof test chamber is a device for simulating the rain exposure environment. |
