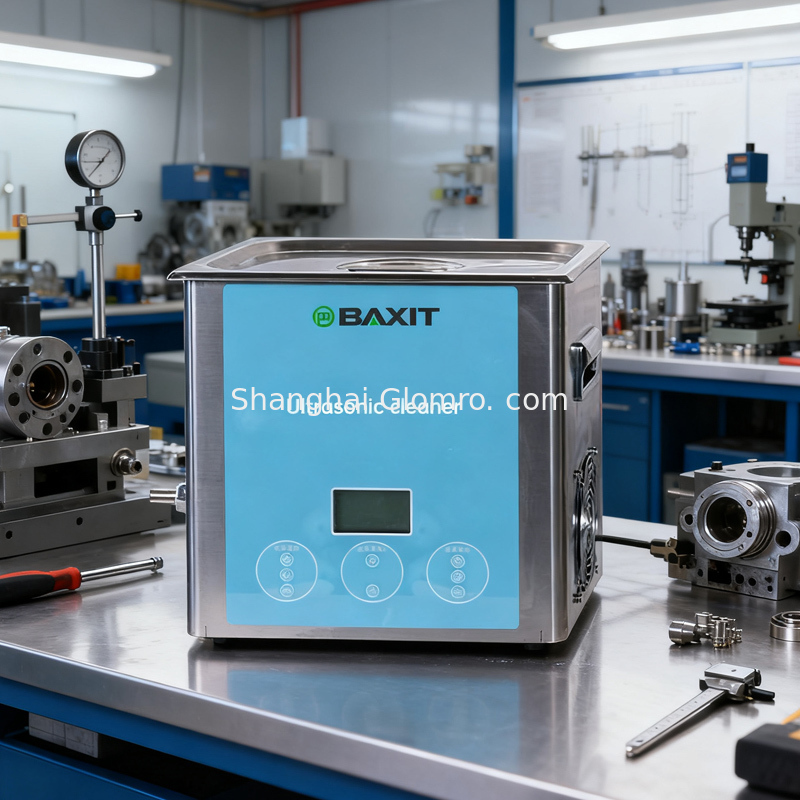

ultrasonic cleaner
In the modern cleaning field, ultrasonic cleaning machines, with their core advantages of "no blind spots, low damage and high efficiency", have gradually spread from industrial settings to medical, scientific research and daily life, becoming an important cleaning equipment to replace traditional manual wiping and high-pressure rinsing.
Working principle
The core working principle is to convert electrical energy into high-frequency mechanical vibration (typically at frequencies ranging from 20kHz to 100kHz) by an ultrasonic generator. When the vibration propagates through the liquid in the cleaning tank (such as water or a dedicated cleaning agent), countless tiny bubbles are generated. These bubbles are rapidly formed and burst under the action of the vibration energy, releasing a powerful impact force (i.e., the "cavitation effect"), which can penetrate into areas such as crevices and holes that are difficult to reach by traditional cleaning methods, effectively removing oil stains, dust, oxides, fingerprints and other dirt from the surface of the object.
Technical Specifications
| Model |
BXT-120DE |
BXT-150DE |
BXT-180DE |
BXT-300DE |
| Operating method |
Liquid crystal display screen |
3.2-inch LCD display |
| Machine size |
260*160*280mm |
320*175*280mm |
320*175*340mm |
320*270*340mm |
| Inner groove size |
240*150*100mm |
300*150*100mm |
300*150*100mm |
300*240*150mm |
| Cleaning capacity |
3L |
4L |
6L |
10L |
| Ultrasound frequency |
40(KHZ) |
| Ultrasound/degassing power |
120W |
150W |
180W |
300W |
| Adjustable ultrasonic power |
0-100% |
| Heating power |
200W |
180W |
200W |
500W |
| Temperature range |
0-99℃ |
| Time adjustable |
0-999min |
| operating times |
Continuous operation (adjustable settings) |
| Inner liner |
304 stainless steel |
| Model |
BXT-500DE |
BXT-700DE |
BXT-800DE |
BXT-1200DE |
| Operating method |
3.2-inch LCD display |
| Machine size |
350*320*340mm |
530*320*380mm |
550*320*380mm |
550*320*500mm |
| Inner groove size |
330*300*150mm |
500*300*150mm |
500*300*200mm |
500*300*300mm |
| Cleaning capacity |
15L |
22.5L |
30L |
45L |
| Ultrasound frequency |
40(KHZ) |
| Ultrasound/degassing power |
500W |
700W |
800W |
1200W |
| Adjustable ultrasonic power |
10-100% |
0-100% |
10-100% |
| Heating power |
500W |
700W |
800W |
1200W |
| Temperature range |
0-99℃ |
| Time adjustable |
0-999min |
| operating times |
999 times(adjustable settings) |
| Inner liner |
304 stainless steel |
Product structure
