product introduction

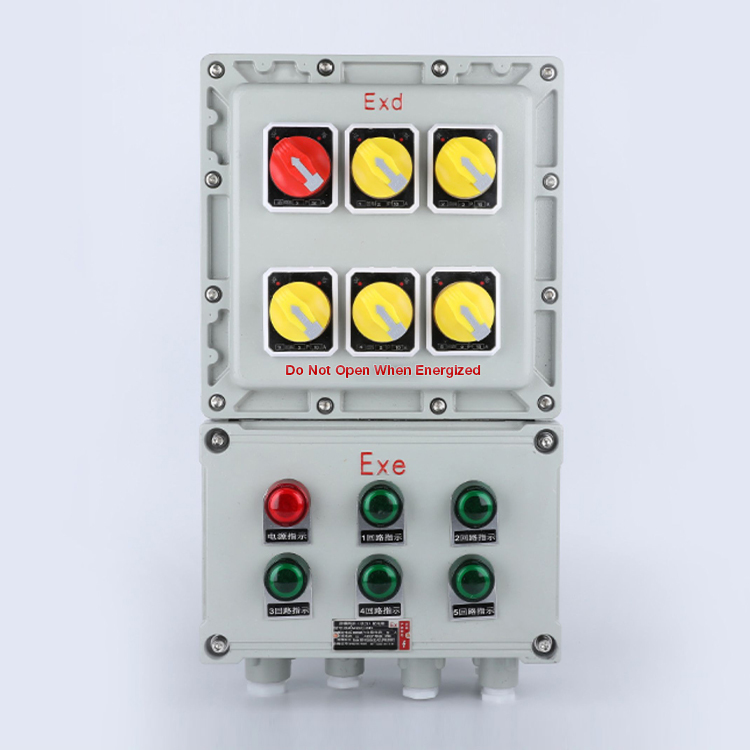

The BXM(D) series explosion-proof distribution box is a highly secure power distribution and control device specifically designed for explosive hazardous environments.
| Model |
BAXIT-BXM(D) |
Product Name |
Explosion-proof distribution box |
| Rated voltage |
220V/380V |
Rated current |
1-630A |
| Product material |
Aluminum alloy |
Protection level |
IP65 |
| Entrance specification |
G1/2-G4 |
Number of branches |
No loop limit |
| Cable outer diameter |
6-82mm |
Entry and exit ports |
Inward then outward, inward then upward |
| Installation method |
Wall-mounted / Standing type |
Explosion-proof mark |
Exde IIBT4Gb |
Access Point Opening Reference Table:
Can be customized according to requirements
| Nominal diameter |
pipe thread type |
Internal and external thread dimensions |
Outer diameter of the cable |
| DN15 |
G1/2 |
⌀19.4 ⌀20.4 |
⌀7-⌀10 |
| DN20 |
G3/4 |
⌀24.8 ⌀26.1 |
⌀10-⌀14 |
| DN25 |
G1 |
⌀30.8 ⌀32.5 |
⌀12-⌀18 |
| DN32 |
G1 1/4 |
⌀39.5 ⌀41.3 |
⌀15-⌀23 |
| DN40 |
G1 1/2 |
⌀44.9 ⌀47.7 |
⌀18-⌀30 |
| DN50 |
G2 |
⌀56.8 ⌀59 |
⌀25-⌀38 |
| DN70 |
G2 1/2 |
⌀72.4 ⌀76 |
⌀30-⌀46 |
| DN80 |
G3 |
⌀85.1 ⌀88 |
⌀38-⌀56 |
| DN100 |
G4 |
⌀110 ⌀114 |
⌀61-⌀80 |
Case photo
product details
Application scope
FAQ
